Rear Suspension

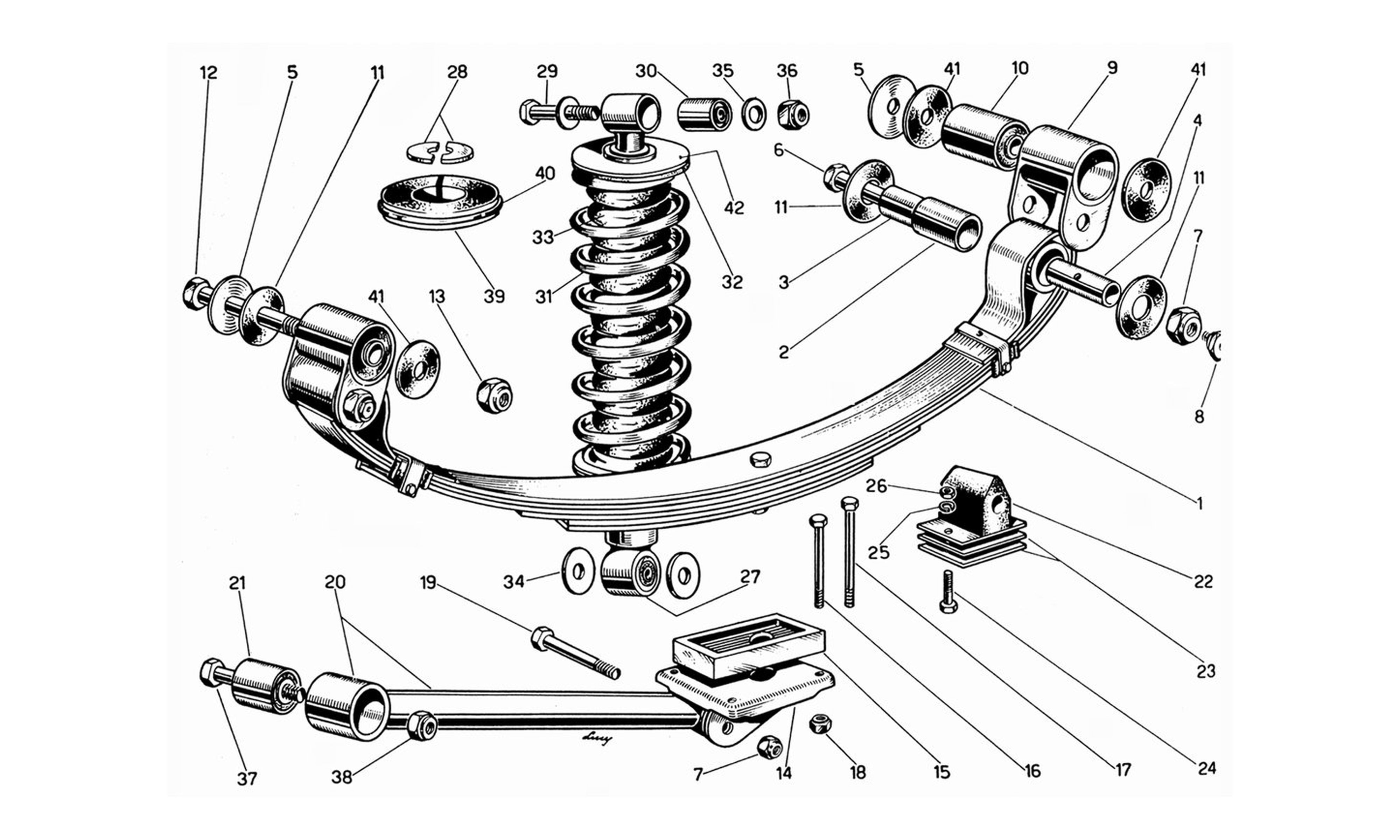

Schematic: Rear Suspension
Schematic: Rear Suspension
Loc
Part
Cond       Price
1
Rear Suspension Leaf Spring 330 GT
New       £ 1633.50
600499 (2) Full qty
RS00331n
2
SILENTBLOK COMPLEX SPECIAL EYE…
600117 (4) Full qty
2
Rear Spring Leaf Outer Sleeve
New       £ 46.59
600118 (4) Full qty
RS00275n
3
Rear Spring Sleeve Bush
New       £ 94.31
600067 (4) Full qty
RS00010n
4
Rear Spring Inner Sleeve 250
New       £ 63.71
600068 (4) Full qty
RS00262n
5
Rear Leaf Spring Metal Thrust Washer
New       £ 30.20
61709 (6) Full qty
RS00305n
6
Rear Spring Shackle Bolt (Front)
New       £ 38.15
94800 (4) Full qty
RS00309n
7
Wishbone Mounting U Bolt Nut
New       £ 1.05
95900611 (4) Full qty
FS10439n
8
Grease Nipple (8x1)
92449 (4) Full qty
9
Leaf Spring Shackle
600143 (4) Full qty
10
Leaf Spring Shackle Bush
New       £ 52.04
94073 (4) Full qty
RS00272n
11
Rear Spring Thrust Washer (18mm ID)
New       £ 24.15
600141 (8) Full qty
RS00261n
12
Rear Spring Shackle Bolt (Rear) M14x75mm
New       £ 18.83
600058 (2) Full qty
RS00311n
13
NUT
116MA (4) Full qty
14
BRACKET / SUPPORT
600126 (2) Full qty
15
Leafspring Lowering Block 250 SWB
New       £ 97.30
600505 (2) Full qty
RS00355n
16
Rear Spring Saddle Bolt M10x75mm Drilled
New       £ 26.02
95880819 (6) Full qty
RS00325n
17
Rear Spring Saddle Bolt (10x105)
New       £ 22.94
95880823 (2) Full qty
RS00307n
18
Nut Rear Spring
New       £ 17.54
94744 (8) Full qty
RS00361n
19
BOLT
B2 (4) Full qty
19
Trailing Arm Bolt (M14x78mm)
New       £ 20.03
RS00283n (4) Full qty
RS00283n
20
Rear Axle Rubber Bump Stop
New       £ 116.77
600251 (4) Full qty
RS00017n
20
Do Not Use - See RS00017n
(4) Full qty
21
Trailing Arm Bush 250/330 Late
New       £ 59.83
94869 (8) Full qty
RS00273n
22
Nut
- (4) Full qty
23
Bump Stop Spring Mounted Spacer
New       £ 76.25
600188 (4) Full qty
RS10391n
24
BOLT
UNITAE (4) Full qty
25
WASHER
8R4 (4) Full qty
26
M10x1.0 Nut
New       £ 6.05
95900412 (4) Full qty
CC11460n
26
Do Not Use - See CC11460n
(4) Full qty
27
Shock Absorber 82R-1322 Reconditioned
New       £ 984.50
600695 (2) Full qty
RS00036n
27
Shock Absorber 82R-1253L- Reconditioned
New       £ 825.00
600695 (2) Full qty
RS00044n
27
Shock Absorber 82-1217 250SWB
New       £ 514.25
600695 (2) Full qty
RS00252n
28
Nut
- (4) Full qty
29
BOLT
B2 (2) Full qty
29
Trailing Arm Bolt (M14x78mm)
New       £ 20.03
RS00283n (2) Full qty
RS00283n
30
Shock Absorber Bush 250 (Koni)/Radiator
New       £ 18.10
94678 (4) Full qty
FS00184n
31
Rear Road Spring 330 GT 2+2 MK1/2
New       £ 193.55
600384 (2) Full qty
RS00353n
32
Rear Suspension Shock Absorber Spring Rubber Pad
New       £ 36.25
103264 (4) Full qty
RS00266n
33
Shock Absorber Rear Cover 250/330
New       £ 130.25
600507 (2) Full qty
RS10417n
34
WASHER
14R1 (4) Full qty
35
WASHER
94784 (4) Full qty
36
NUT
116MB (4) Full qty
37
BOLT
B2 (4) Full qty
37
Trailing Arm Bolt (M14x78mm)
New       £ 20.03
RS00283n (4) Full qty
RS00283n
38
Wishbone Mounting U Bolt Nut
New       £ 1.05
95900611 (8) Full qty
FS10439n
39
Bump stop rubber rear shocks
New       £ 59.95
600148 (2) Full qty
RS10517n
40
SEAL RING FOR BUFFER INTERNAL …
OR138 (2) Full qty
41
Rear Spring Thrust Washer (22mm ID)
New       £ 22.02
61701 (8) Full qty
RS00260n
