Body - External Components

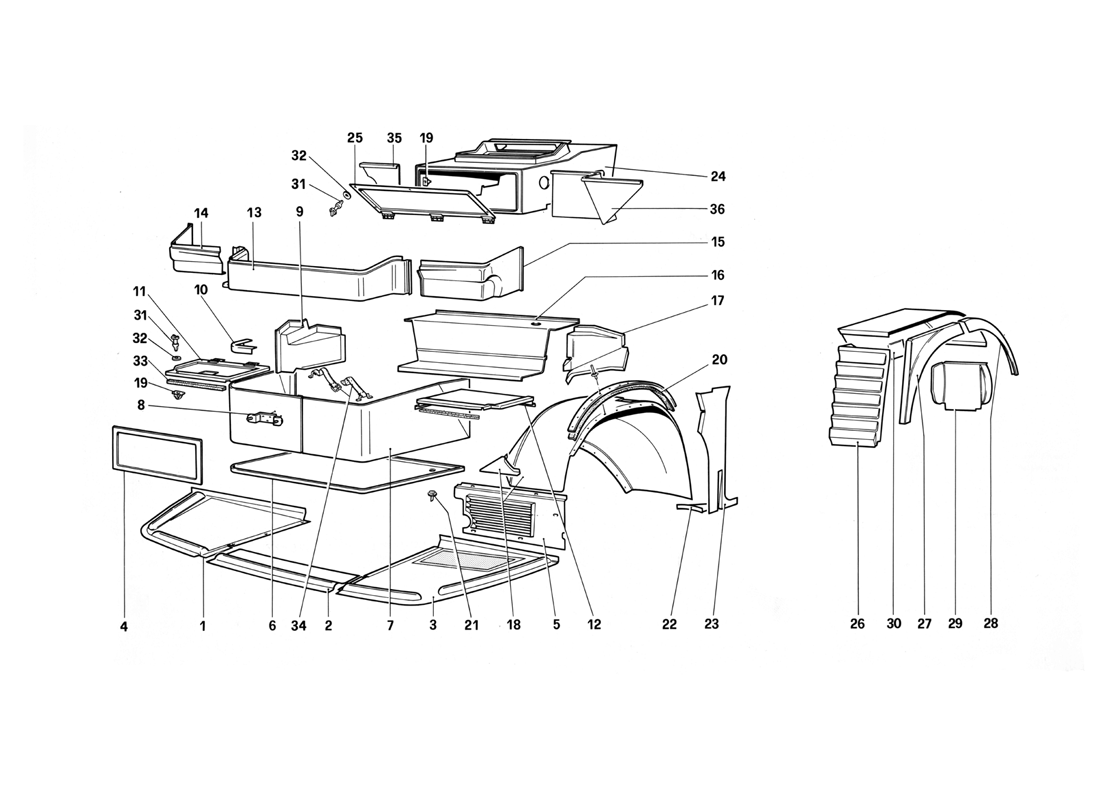

Schematic: Body - External Components
Loc
Part
Cond       Price
1
Right front bottom plate
61478600 (1) Full qty
2
Central front bottom plate
61478700 (1) Full qty
3
Left front bottom plate
61478800 (1) Full qty
4
RH wheelarch front shieldpanel…
61478900 (1) Full qty
5
Shieldpanel for condenser
61479000 (1) Full qty
6
Trunk bottom plate
61479100 (1) Full qty
7
Central movable lower shieldpa…
61479200 (1) Full qty
8
Horn support bracket
61479300 (1) Full qty
9
Left angle piece for wheel hou…
61479500 (1) Full qty
9
Right angle piece for wheel ho…
61479400 (1) Full qty
10
Right support for luggage comp…
61479600 (1) Full qty
10
Left support for luggage compa…
61479700 (1) Full qty
11
Battery compartment lid
61479800 (1) Full qty
12
Condenser compartment lid
61479900 (1) Full qty
13
Central movable shieldpanel
61480000 (1) Full qty
14
Right movable shieldpanel
61480100 (1) Full qty
15
Left movable shieldpanel
61480200 (1) Full qty
16
Rear shieldpanel
61480300 (1) Full qty
17
Left front panel
61480400 (1) Full qty
17
Right front panel
61480500 (1) Full qty
18
Wheelhouse, front left
61480600 (1) Full qty
18
Wheelhouse, front right
61480700 (1) Full qty
19
Clip
61529200 (6) Full qty
20
Wheelhouse gasket
61481000 (2) Full qty
21
Plug
60731300 (2) Full qty
22
Left cover
61481300 (1) Full qty
22
Right cover
61481200 (1) Full qty
23
Left door inner pillar
61481500 (1) Full qty
23
Right door inner pillar
61481400 (1) Full qty
24
Air condition case
61481600 (1) Full qty
25
Electric board cover
61481700 (1) Full qty
26
Front section of rear right wh…
61481800 (1) Full qty
26
Front section of rear left whe…
61481900 (1) Full qty
27
Front side section of rear lef…
61482100 (1) Full qty
27
Front side section of rear rig…
61482000 (1) Full qty
28
Rear side section of rear left…
61482200 (1) Full qty
28
Rear side section of rear left…
61482300 (1) Full qty
29
Rear section of rear right whe…
61482400 (1) Full qty
29
Rear section of rear left whee…
61482500 (1) Full qty
30
Upper section of rear right wh…
61482600 (1) Full qty
30
Upper section of rear left whe…
61482700 (1) Full qty
31
Pin securing battery and conde…
61530300 (6) Full qty
32
Pin gasket
61529400 (6) Full qty
33
Gasket
61538600 (1) Full qty
34
Spare wheel retaining belt
61538300 (1) Full qty
35
Right protection
61546300 (1) Full qty
35
Right protection
61546100 (1) Full qty
36
Left protection
61546200 (1) Full qty
36
Left protection
61546400 (1) Full qty
