Sun Roof Movement And Closing

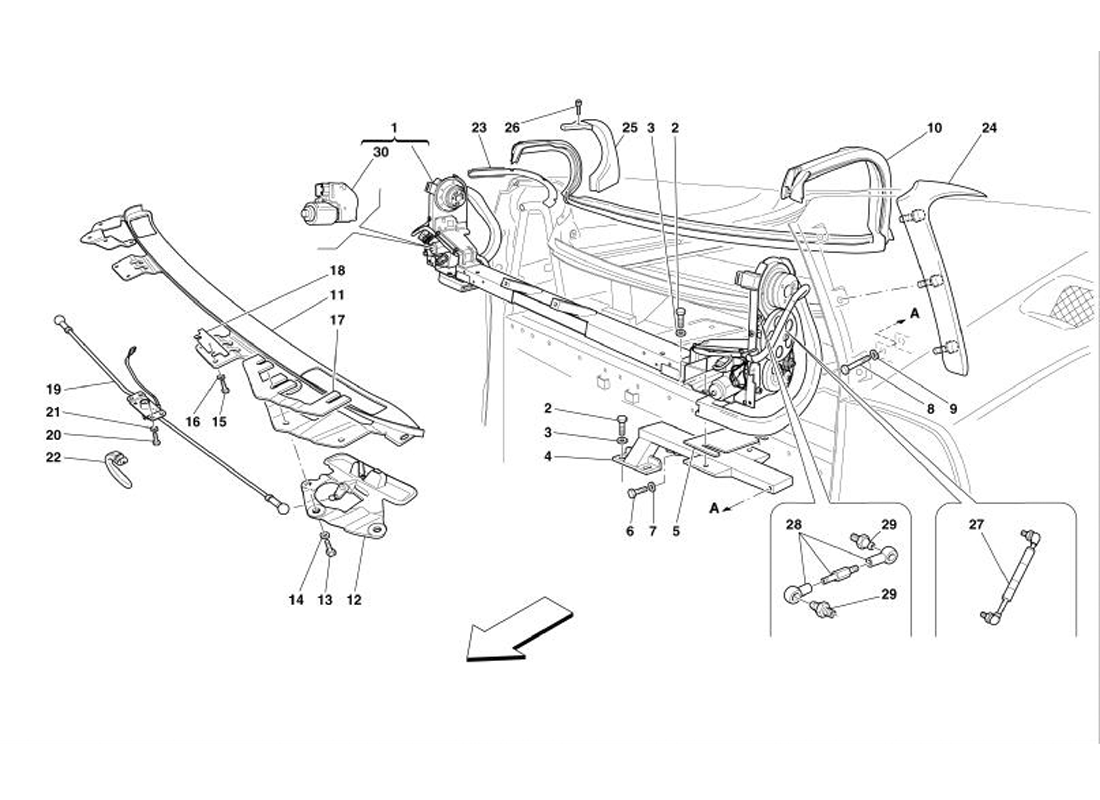

Schematic: Sun Roof Movement And Closing
Schematic: Sun Roof Movement And Closing
Loc
Part
Cond       Price
1
COMPLETE TRUNK DOOR
68710200 (1) Full qty
2
SHOCK ABSORBER FOR HOOD SUPPOR…
69059300 (2) Full qty
3
BRACKET
68858000 (2) Full qty
4
SCREW
10977824 (4) Full qty
5
Washer
12637801 (4) Full qty
6
PIN
69106400 (2) Full qty
7
BONNET GASKET
68548500 (1) Full qty
8
INNER DEVICE FOR HOOD UNLOCK
66466000 (1) Full qty
9
ROLL
63709300 (1) Full qty
10
SPRING
63709500 (1) Full qty
11
STRIKER
63143600 (1) Full qty
12
STRIKER PLATE OVERLAP
63861700 (1) Full qty
13
SCREW
10902087 (4) Full qty
14
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
15
WASHER
12647624 (2) Full qty
16
EMERGENCY CABLE
69059200 (1) Full qty
17
Clamp
60276607 (1) Full qty
18
Dowel
60276805 (1) Full qty
19
Snap ring
11087676 (1) Full qty
20
Handle for emergency cable
60710900 (1) Full qty
21
Spring for handle
60711000 (1) Full qty
22
Snap ring
11087676 (1) Full qty
23
WASHER
12647624 (2) Full qty
24
ROOF LIGHT
139517 (1) Full qty
25
GASKET
157872 (1) Full qty
26
CABLE FOR HANDLE
186500 (1) Full qty
27
HANDLE FOR SAFETY CHILDREN -Ap…
66403900 (1) Full qty
28
COMPLETE LID HINGE
64575900 (1) Full qty
29
PIN
63196400 (1) Full qty
30
Snap ring
11087676 (1) Full qty
31
SPRING
63196500 (1) Full qty
32
SCREW
14304124 (2) Full qty
33
WASHER -Applicable from Ass. N…
12637878 (2) Full qty
34
WASHER
12605274 (2) Full qty
35
NUT
13046011 (4) Full qty
36
WASHER
13579101 (4) Full qty
37
PLATE
66679900 (1) Full qty
38
SPACER
66804900 (2) Full qty
39
Fuel Flap Pad 599
63879900 (2) Full qty
40
FUEL INLET LID
68582000 (1) Full qty
41
Fuel Filler Actuator
65395900 (1) Full qty
42
ACTUATOR MOUNTING BRACKET
66679800 (1) Full qty
43
WASHER
69969500 (2) Full qty
44
NUT
168698 (2) Full qty
45
WASHER
12637824 (2) Full qty
46
SCREW
15641275 (2) Full qty
47
WASHER
14496277 (2) Full qty
48
Switch Door Pin 2-Term
New       Price on Enquiry
153069 (1) Full qty
EL00320n
49
SCREW
15916977 (1) Full qty
50
SAFETY CABLE
66678200 (1) Full qty
51
ACTUATOR
63191100 (1) Full qty
52
MICRO-SWITCH
173977 (1) Full qty
53
BONNET LOCK
63143300 (1) Full qty
54
SCREW
15903870 (2) Full qty
55
SCREW
10903224 (3) Full qty
56
WASHER
10615474 (3) Full qty
57
Washer 1.6mm 6.4x11.95x1.6
10519424 (3) Full qty
58
RUBBER
67121100 (2) Full qty
59
R.H. SEMI-LEVER
68709500 (1) Full qty
60
L.H. SEMI-LEVER
68709600 (1) Full qty
61
SCREW
16287731 (8) Full qty
62
Washer
12625201 (8) Full qty
63
WATER EXHAUST TUBE
69078400 (2) Full qty
64
Clamp
13000490 (4) Full qty
65
Hose fastening bracket
10441490 (1) Full qty
66
COMPLETE REAR LOCK
68826200 (1) Full qty
67
L.H. AESTHETIC COVER
68826700 (1) Full qty
67
R.H. AESTHETIC COVER
68826600 (1) Full qty
68
WATER EXHAUST TUBE
68993700 (2) Full qty
69
ELECTRIC MOTOR
214104 (1) Full qty
70
Clamp
10441190 (1) Full qty
