Crankcase

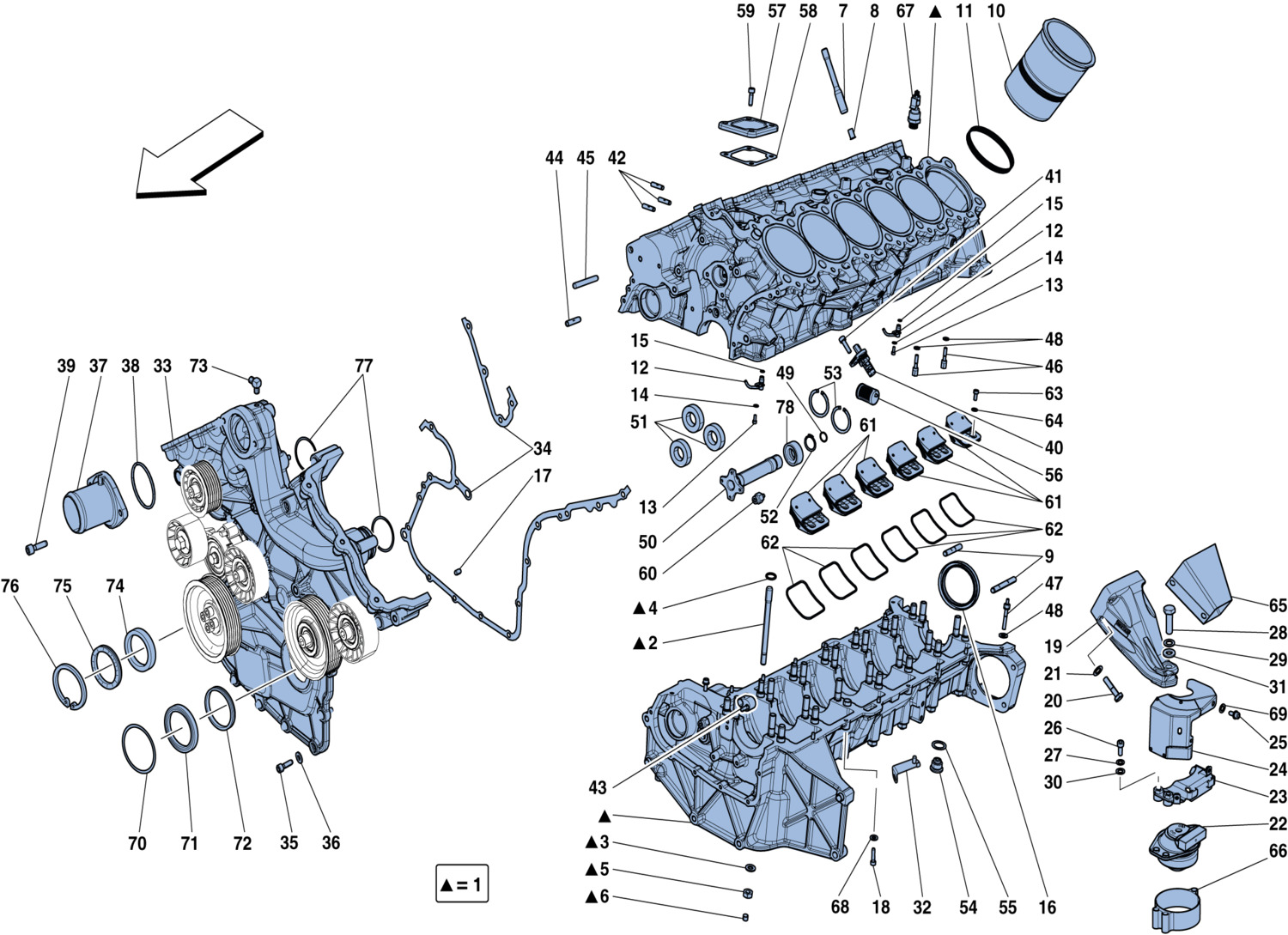

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
CRANKCASE-LOWER CRANKCASE SHEL…
313700 (1) Full qty
2
STUD BOLT -M12 X 1.75- -Outer …
312412 (14) Full qty
2
STUD BOLT -M12 X 1.75- -Inner …
312153 (14) Full qty
3
WASHER
178348 (28) Full qty
4
O-RING
134704 (28) Full qty
5
Nut
133988 (28) Full qty
6
ALIGNMENT DOWEL
176421 (14) Full qty
7
STUD BOLT
217968 (28) Full qty
8
ALIGNMENT DOWEL
185360 (4) Full qty
9
STUD BOLT
13546834 (2) Full qty
9
STUD BOLT -M10 X 1.25 X 20- -S…
13547034 (1) Full qty
9
STUD BOLT
13547234 (1) Full qty
9
STUD BOLT
13546934 (1) Full qty
9
STUD BOLT
13546834 (1) Full qty
9
STUD BOLT
13546834 (1) Full qty
10
CYLINDER SLEEVE
266366 (12) Full qty
11
O-RING
186251 (36) Full qty
12
COMPL. PISTON COOLING NOZZLE
264087 (12) Full qty
13
SCREW
14302921 (12) Full qty
14
WASHER
11181474 (12) Full qty
15
O-RING
164877 (12) Full qty
16
Rear Main Oil Seal 80/100/10 V6/8
New       Price on Enquiry
200323 (1) Full qty
CC11504n
16
Rear Main Oil Seal 80/100/10
New       Price on Enquiry
200323 (1) Full qty
CC11568n
17
ALIGNMENT DOWEL
175611 (1) Full qty
18
SCREW -M6 X 25-
231620 (12) Full qty
19
LH ENGINE STRUT
262744 (1) Full qty
19
RH ENGINE STRUT
262743 (1) Full qty
20
SCREW
11234734 (8) Full qty
21
WASHER
11190574 (8) Full qty
22
COMPL. LH FLEXIBLE ENGINE MOUN…
259757 (1) Full qty
22
COMPL. RH FLEXIBLE ENGINE MOUN…
259756 (1) Full qty
23
LH BUSH TRAVEL LIMITER BRACKET…
280019 (1) Full qty
23
RH BUSH TRAVEL LIMITER BRACKET…
280020 (1) Full qty
24
RH BUSHING HEAT SHIELD
336871 (1) Full qty
24
LH BUSHING HEAT SHIELD
333758 (1) Full qty
25
SCREW -M6 X 14-
231616 (4) Full qty
26
SCREW -M10 X 1.25 X 130-
274859 (6) Full qty
27
Washer
127497 (6) Full qty
28
SCREW -M12 X 1.75-
14422634 (2) Full qty
29
Washer
13550521 (2) Full qty
30
WASHER
14496624 (6) Full qty
31
Washer
127498 (2) Full qty
32
WIRING HARNESS MOUNTING BRACKE…
325816 (1) Full qty
33
FRONT CRANKCASE COVER
319865 (1) Full qty
34
GASKET BETWEEN CRANKCASE AND F…
317647 (1) Full qty
35
SCREW
14305924 (3) Full qty
35
SCREW -M6 X 55-
14304824 (1) Full qty
35
SCREW -M6 X 30-
14305524 (1) Full qty
35
SCREW -M6 X 20-
231618 (10) Full qty
35
SCREW -M6 X 35-
231622 (4) Full qty
35
SCREW -M6 X 50-
231625 (8) Full qty
35
SCREW -M6 X 55-
14304824 (3) Full qty
36
GASKET
216292 (5) Full qty
36
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (3) Full qty
GE35524n
37
WATER INLET
268695 (1) Full qty
38
GASKET
134907 (1) Full qty
39
SCREW -M6 X 20-
231618 (2) Full qty
40
RPM SENSOR
276125 (1) Full qty
41
SCREW -M6 X 20-
231618 (1) Full qty
42
Stud 8 x 32
New       £ 0.90
13516824 (3) Full qty
CC11805n
43
CHAIN COOLING NOZZLE
234002 (1) Full qty
44
STUD BOLT
13543124 (1) Full qty
45
STUD BOLT
13543824 (1) Full qty
46
STUD BOLT
214412 (2) Full qty
47
STUD BOLT
219283 (1) Full qty
48
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (3) Full qty
GE35524n
49
GASKET
186272 (1) Full qty
50
PUMP ARRAY DRIVE SHAFT
212592 (1) Full qty
51
BEARING
155996 (3) Full qty
52
Seeger ring
11067276 (1) Full qty
53
SEEGER RING
11381076 (2) Full qty
54
Transaxle Drain Plug
New       Price on Enquiry
104280 (1) Full qty
GB10488n
55
Copper Washer
New       Price on Enquiry
10261860 (1) Full qty
CC11528n
56
Central Oil Recovery Filter
187162 (3) Full qty
57
INSPECTION HATCH COVER
208451 (1) Full qty
58
GASKET
317312 (1) Full qty
59
SCREW -M6 X 20-
231618 (4) Full qty
60
STUD BOLT -Fastening front cov…
257379 (1) Full qty
61
COMPLETE VALVE HOLDER
300580 (6) Full qty
62
GASKET
154691 (6) Full qty
63
SCREW
13026924 (12) Full qty
64
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (12) Full qty
GE35524n
65
SHIELD ON ENGINE STRUT
301195 (2) Full qty
66
ENGINE MOUNTING BUSH COLLAR
257168 (2) Full qty
67
Oil Pressure Transmitter
New       Price on Enquiry
304074 (1) Full qty
EL99432n
68
WASHER
11193274 (1) Full qty
69
Washer
New       Price on Enquiry
12644424 (4) Full qty
CS12006n
69
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (4) Full qty
CS12006u
70
GASKET -D. 71.44 X 3.53-
263649 (1) Full qty
71
GASKET -D. 49.5 X 65 X 8-
274642 (1) Full qty
72
GASKET -D. 49.5 X 62 X 7-
274641 (1) Full qty
73
CONNECTOR
271811 (1) Full qty
74
BEARING
258593 (1) Full qty
75
GASKET -D. 34.9 X 62 X 7-
258572 (1) Full qty
76
Circlip
11061076 (1) Full qty
77
Front Cover O Ring
New       Price on Enquiry
183010 (2) Full qty
TC14204n
78
GASKET
184384 (1) Full qty
