Throttle Control -Rhd

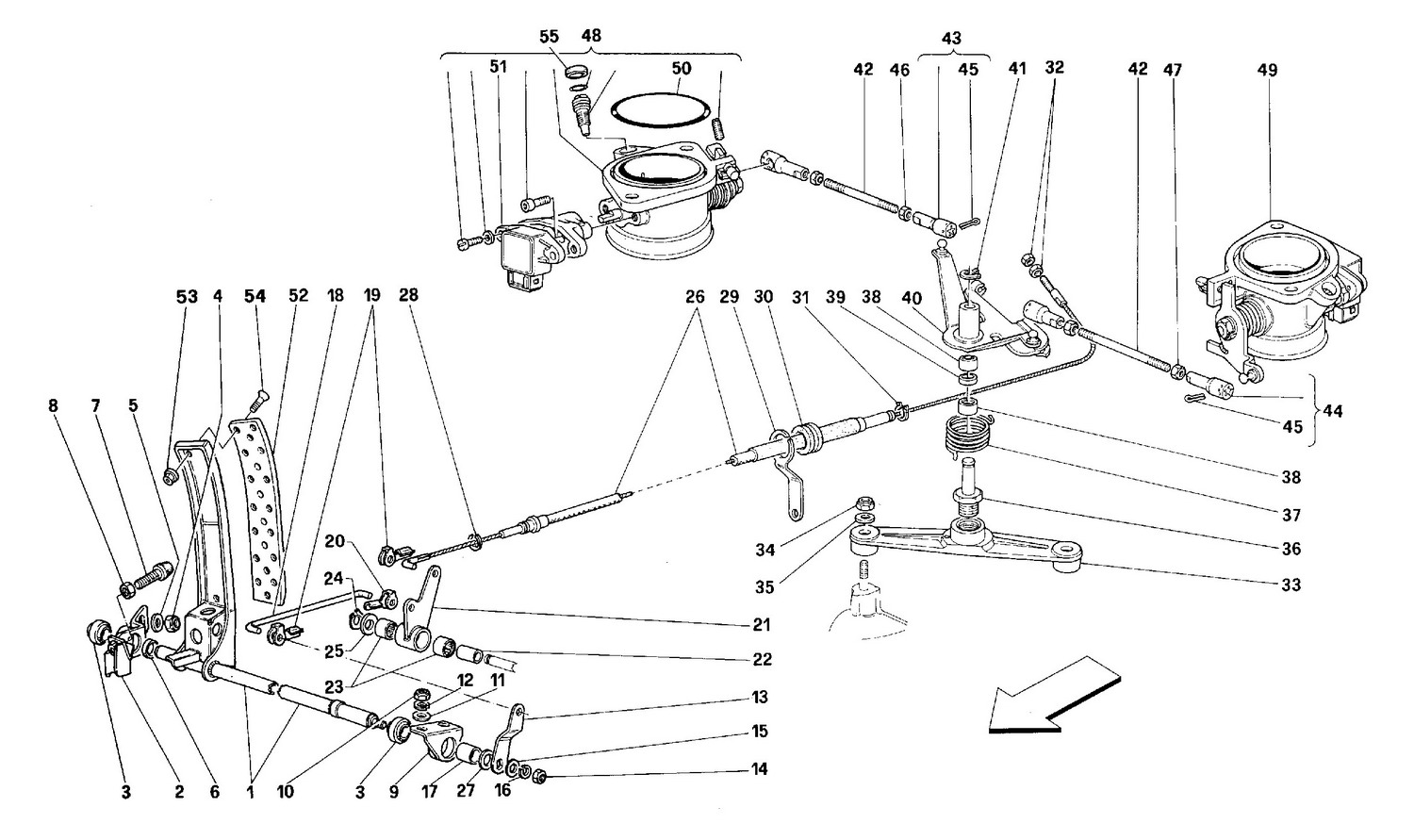

Schematic: Throttle Control -Rhd
Loc
Part
Cond       Price
1
Throttle pedal
151478 (1) Full qty
2
Pedal support
116526 (1) Full qty
3
Ball joint
122430 (2) Full qty
4
Nut
16104411 (2) Full qty
5
Washer
10519624 (2) Full qty
6
Spacer
121477 (1) Full qty
7
Adjusting screw
100640 (1) Full qty
8
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
9
Support for relay lever
116528 (1) Full qty
10
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
11
Flat Washer
12643701 (2) Full qty
12
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
13
Accelerator control lever
124997 (1) Full qty
14
Nut
16100811 (1) Full qty
16
Wavy Lock Washer 8mm
127496 (1) Full qty
17
Spacer
117991 (1) Full qty
18
Tie rod
124998 (1) Full qty
19
Fastened
119550 (2) Full qty
20
Fastened
119551 (1) Full qty
21
Relay lever
150408 (1) Full qty
22
Inner ring
125001 (2) Full qty
23
Roller cage
101677 (2) Full qty
24
Circlip
11065676 (1) Full qty
25
Washer
117311 (1) Full qty
26
Throttles control cable
159532 (1) Full qty
27
Shim 0,3 mm. thick
105929 (1) Full qty
27
Shim 0,5 mm. thick
105930 (1) Full qty
27
Shim 0,7 mm. Thick
105931 (1) Full qty
28
Circlip
11087974 (1) Full qty
29
BRACKET
154742 (1) Full qty
30
Wire carrier
10396680 (1) Full qty
32
Nut
10725011 (2) Full qty
33
Throttle support
145696 (1) Full qty
34
Nut
12574211 (2) Full qty
35
Washer
12639701 (2) Full qty
36
Pin
136705 (1) Full qty
37
Spring
153354 (1) Full qty
38
New       £ 6.55
132873 (2) Full qty
FU15821n
39
SPACER
136880 (1) Full qty
40
Lever
153356 (1) Full qty
42
Tie rod
145762 (2) Full qty
43
Head. L.H. thread
105619 (2) Full qty
44
Head, R.H. thread
105617 (2) Full qty
45
Copiglia
10795101 (4) Full qty
46
Nut. L.H. thread
105586 (2) Full qty
47
Nut to fixing front and rear s…
15896470 (2) Full qty
48
R.H. throttle body complete
146632 (1) Full qty
49
L.H. throttle body complete
148708 (1) Full qty
50
O.R. GASKET
142934 (2) Full qty
51
Potentiometer for throttle val…
142434 (2) Full qty
52
Pedal plate
163920 (1) Full qty
53
NUT
14058311 (3) Full qty
54
Screw
14440734 (3) Full qty
55
Safety plug
166419 (2) Full qty
