Crankcase

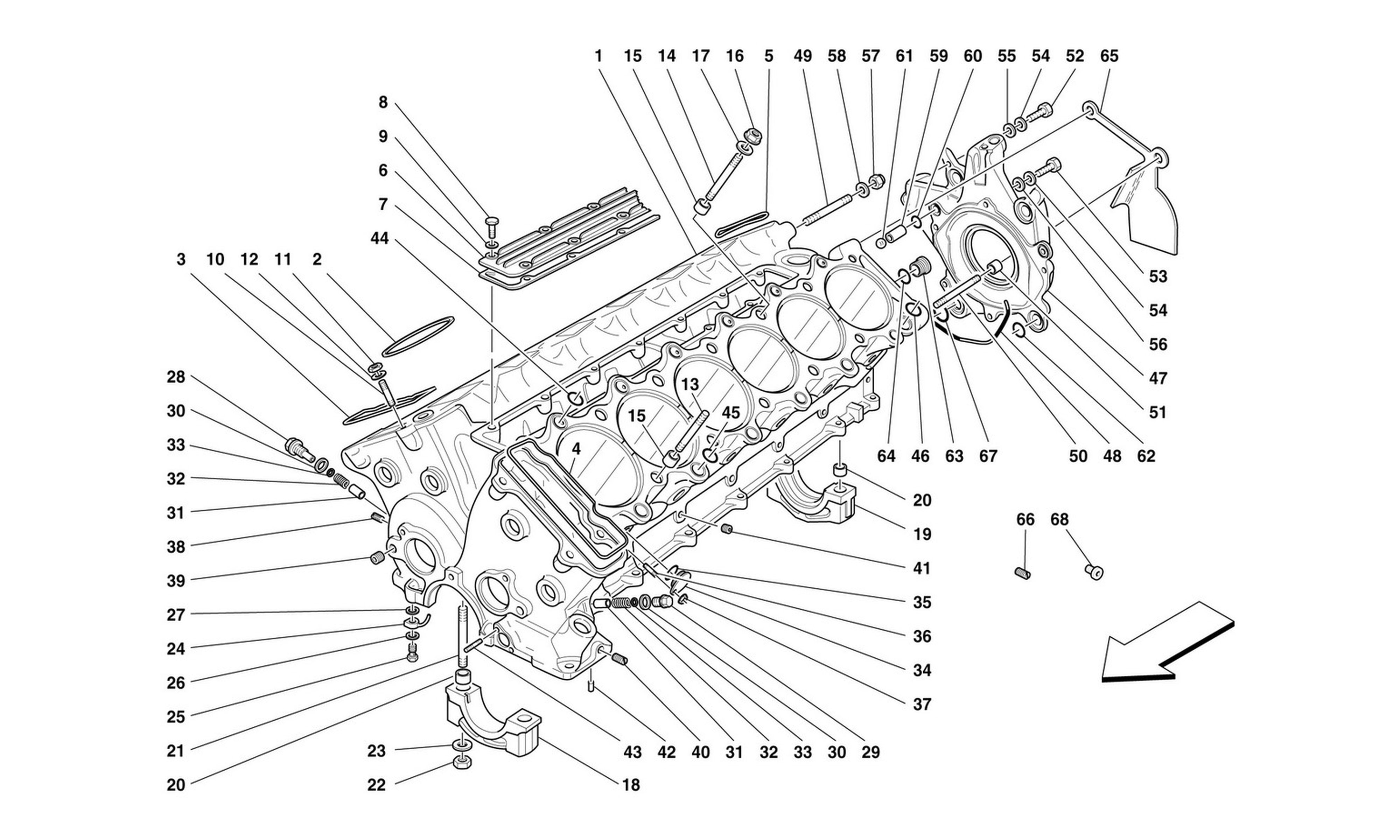

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
ENGINE CRANKCASE
164552 (1) Full qty
2
COOPERS SEAL RING
159144 (12) Full qty
3
R.H. GASKET
154035 (1) Full qty
4
LH Gasket (Timing Chain) F50
New       £ 15.40
154030 (1) Full qty
CC11800n
5
GASKET
150110 (2) Full qty
6
WATER DUCT COVER
158073 (1) Full qty
7
GASKET
158079 (1) Full qty
8
SCREW -M6 X 20- -Fastening bra…
10902424 (14) Full qty
9
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (14) Full qty
GE35524n
10
Stud 8 x 32
New       £ 0.90
13516824 (4) Full qty
CC11805n
11
Nut
133215 (4) Full qty
12
WASHER
12604474 (4) Full qty
13
STUD
154072 (14) Full qty
14
STUD
154073 (14) Full qty
15
DOWEL
149995 (4) Full qty
16
NUT
148093 (28) Full qty
17
WASHER
151117 (28) Full qty
18
FRONT AND INTERMEDIATE CAP
159126 (6) Full qty
19
REAR CAP
159127 (1) Full qty
20
DOWEL
159196 (14) Full qty
21
STUD
159198 (14) Full qty
22
Nut
103841 (14) Full qty
23
WASHER
159197 (14) Full qty
24
NOZZLE
149454 (12) Full qty
25
SCREW FOR NOZZLE
149453 (12) Full qty
26
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (12) Full qty
GE35524n
27
Gasket
10297760 (12) Full qty
28
R.H. PLUG
154176 (1) Full qty
29
L.H. PLUG
152569 (1) Full qty
30
Copper Washer Testarossa
New       Price on Enquiry
10257060 (2) Full qty
CC11524n
30
Temp Sender/Water Jacket/Sump Plug Washer
New       £ 0.21
10257060 (2) Full qty
SM99909n
31
SHUTTER PISTON
149520 (2) Full qty
32
SPRING
149519 (2) Full qty
33
SPACER
152570 (2) Full qty
34
PLUG
149105 (12) Full qty
35
O-Ring
New       Price on Enquiry
134233 (12) Full qty
GE00328n
36
STUD
149106 (12) Full qty
37
Nut
132877 (12) Full qty
38
THREADED PLUG
161439 (2) Full qty
39
THREADED PLUG
14324811 (2) Full qty
40
Plug
10267550 (1) Full qty
41
Plug closing rollers throug ho…
14326050 (7) Full qty
42
Pin
10334520 (2) Full qty
43
STUD
152270 (2) Full qty
44
O Ring
New       Price on Enquiry
123475 (12) Full qty
CC11704n
45
O-Ring
New       Price on Enquiry
134232 (12) Full qty
GE00326n
46
O-Ring
New       Price on Enquiry
134233 (2) Full qty
GE00328n
47
REAR COVER
159192 (1) Full qty
48
GASKET
162402 (1) Full qty
49
STUD BOLT -M10 X 1.25 X 20- -S…
13547034 (2) Full qty
50
STUD
13450234 (1) Full qty
51
DOWEL
125537 (2) Full qty
52
SCREW
10902224 (1) Full qty
53
Screw
10902621 (7) Full qty
54
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (8) Full qty
GE35524n
55
WASHER
103044 (1) Full qty
56
Washer 1.6mm 6.4x11.95x1.6
10519424 (7) Full qty
57
NUT
133216 (4) Full qty
58
WASHER
12642424 (4) Full qty
59
DOWEL
149112 (2) Full qty
60
O Ring
New       Price on Enquiry
123475 (2) Full qty
CC11704n
61
BALL
150557 (2) Full qty
62
O-Ring
New       Price on Enquiry
132248 (3) Full qty
GE00316n
63
PLUG
149113 (2) Full qty
64
O-Ring
New       Price on Enquiry
134233 (2) Full qty
GE00328n
65
R.H. PLATE
164280 (1) Full qty
65
L.H. PLATE
164281 (1) Full qty
66
THREADED PLUG
10269150 (1) Full qty
67
O Ring 31.47x
New       £ 0.51
148225 (1) Full qty
CH20044n
68
PLUG
165962 (2) Full qty
