Brake System

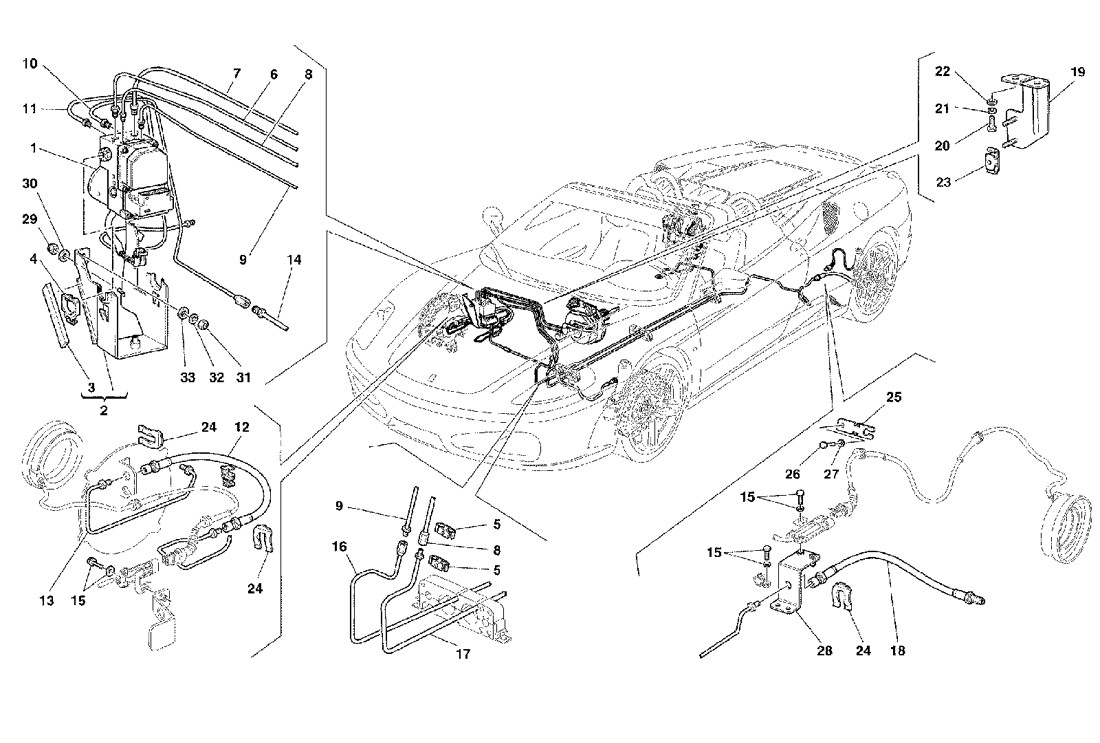

Schematic: Brake System
Loc
Part
Cond       Price
1
ABS Pump 430
194608 (1) Full qty
2
CONTROL STATION SUPPORTING BRA…
203603 (1) Full qty
3
VIBRATION DAMPER
197149 (1) Full qty
4
FASTENER CLIP
193877 (2) Full qty
5
CLIP
169476 (4) Full qty
6
BRAKE PIPE FROM FRONT PUMP TO …
209904 (1) Full qty
7
BRAKE PIPE FROM REAR PUMP TO C…
209906 (1) Full qty
8
PIPE FROM CONTROL STATION TO L…
194603 (1) Full qty
9
PIPE FROM CONTROL STATION TO R…
194604 (1) Full qty
10
PIPE FROM CONTROL STATION TO I…
194605 (1) Full qty
11
PIPE FROM CONTROL STATION TO R…
194606 (1) Full qty
12
Brake Hose 360mm
137313 (2) Full qty
12
Brake Hose Front 550/575
137313 (2) Full qty
13
PIPE TO L.H. FRONT BRAKE
205294 (1) Full qty
13
PIPE TO R.H. FRONT BRAKE
205293 (1) Full qty
14
INTERMEDIATE PIPE
205295 (1) Full qty
15
SCREW -M6 X 16-
11625724 (6) Full qty
16
TUBE TO REAR RH. HOSE
205093 (1) Full qty
17
TUBE TO REAR LH. HOSE
205094 (1) Full qty
18
Brake Hose
118100 (2) Full qty
19
BRAKE PIPE MOUNTING BRACKET
207278 (1) Full qty
20
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
22
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
22
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
23
CLIP
169476 (2) Full qty
24
Front Brake Calipar - Clamp
116374 (8) Full qty
25
MOUNTING
178938 (2) Full qty
26
Screw
10902024 (2) Full qty
27
WASHER
12605374 (2) Full qty
28
REAR MOUNTING
185283 (2) Full qty
29
New       Price on Enquiry
101139 (1) Full qty
GB10400n
30
WASHER
12638524 (1) Full qty
31
NUT
177778 (1) Full qty
32
Wavy Lock Washer 8mm
127496 (1) Full qty
33
WASHER
12638524 (1) Full qty
