Pump And Fuel Piping -Not For Usa -

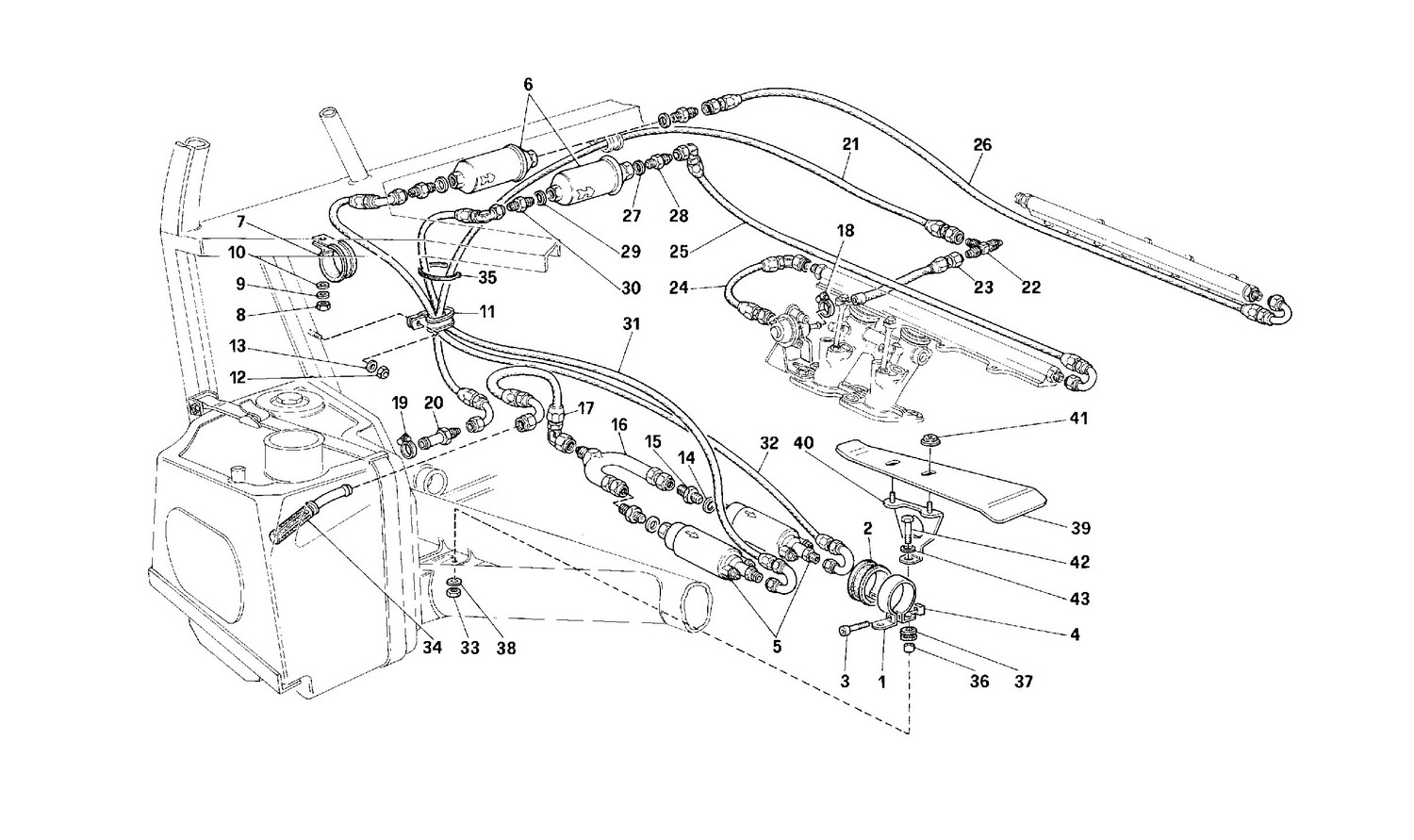

Schematic: Pump And Fuel Piping -Not For Usa -
Loc
Part
Cond       Price
1
Clip
147617 (2) Full qty
2
New       £ 17.26
123848 (2) Full qty
FU15922n
3
Screw
14305521 (2) Full qty
3
New       Price on Enquiry
14305674 (2) Full qty
CL11876n
4
Square nut
14089311 (2) Full qty
5
Fuel pump
199618 (2) Full qty
6
Fuel Filter F40 (Weber) 134470…
134470 (2) Full qty
7
Bracket
137243 (2) Full qty
8
NUT
15896214 (2) Full qty
9
Washer
11197773 (2) Full qty
10
WASHER
12643724 (2) Full qty
11
Hose fastening bracket
61712500 (1) Full qty
12
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
13
WASHER
12643724 (1) Full qty
14
New       Price on Enquiry
10257060 (2) Full qty
CC11524n
14
New       £ 0.21
10257060 (2) Full qty
SM99909n
15
Union
136845 (2) Full qty
16
Union
136935 (1) Full qty
17
Fuel pipe from tank to 3-way …
136089 (1) Full qty
18
SCREW COLLAR
12179690 (2) Full qty
19
Clamp
13000390 (1) Full qty
20
Union
136107 (1) Full qty
21
Fuel pipe from 3-way flutes t…
136846 (1) Full qty
22
Union
136109 (1) Full qty
23
Fuel pipe from pressure adjust…
136849 (2) Full qty
23
Fuel pipe from pressure adjust…
146358 (2) Full qty
24
Pipe from flute to pressure …
136847 (2) Full qty
25
Fuel pipe from L.H. filter to…
136848 (1) Full qty
26
Fuel pipe from R.H. filter to…
136852 (1) Full qty
27
New       Price on Enquiry
10298460 (2) Full qty
EX10416n
28
Union
136077 (2) Full qty
29
COPPER GASKET
11270260 (2) Full qty
30
Union
136099 (2) Full qty
31
Fuel pipe from L.H. pump to L…
136851 (1) Full qty
32
Fuel pipe from R.H. pump to R…
136850 (1) Full qty
33
Nut
102741 (4) Full qty
34
Filter
137107 (1) Full qty
35
Clamp for pad cable
14560187 (1) Full qty
36
Spacer
103550 (4) Full qty
37
New       Price on Enquiry
103549 (4) Full qty
AC00210n
38
Washer
14499301 (4) Full qty
39
Shield
149083 (1) Full qty
40
Bracket
149089 (1) Full qty
41
Nut
13832101 (2) Full qty
42
SCREW
10902624 (1) Full qty
43
WASHER
12643724 (1) Full qty
