Crankcase

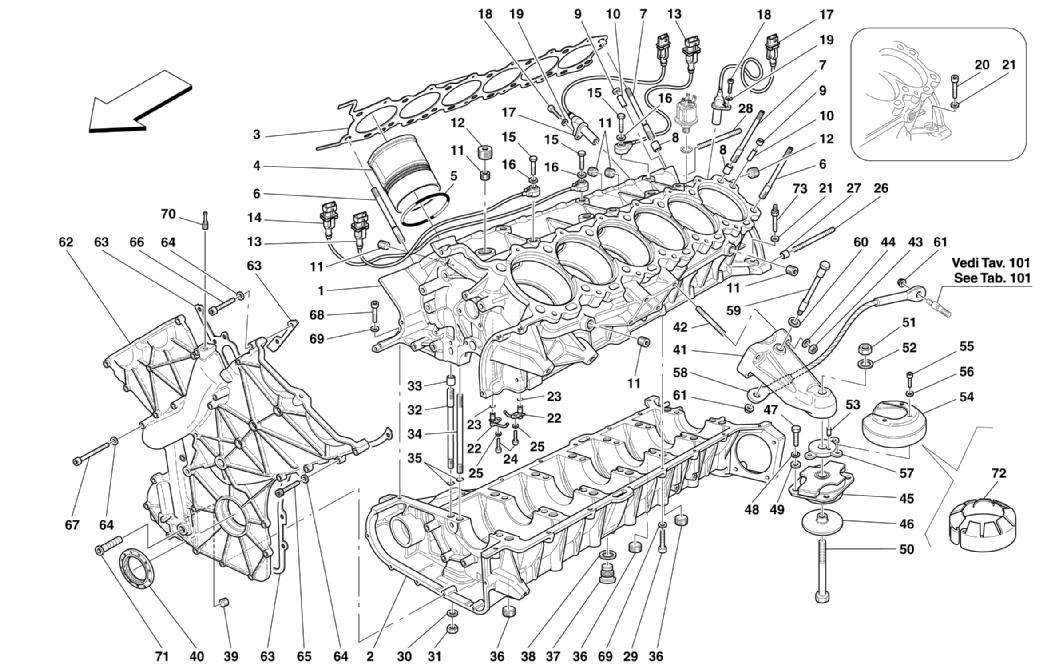

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
ENGINE BASE-PLATE
181339 (1) Full qty
2
COMPLETE UNDERCRANKCASE
186684 (1) Full qty
3
R.H. GASKET
181832 (1) Full qty
3
L.H. GASKET
181833 (1) Full qty
4
CYLINDER LINER
187806 (12) Full qty
5
O-RING
186251 (36) Full qty
6
STUD
186134 (14) Full qty
7
STUD
186133 (14) Full qty
8
ALIGNMENT DOWEL
185360 (4) Full qty
9
DOWEL
195382 (2) Full qty
10
NONRETURN VALVE
156862 (2) Full qty
11
THREADED PLUG
194490 (7) Full qty
12
Plug for lubricating ports
10269850 (4) Full qty
13
SENSOR FOR FIRING
182266 (4) Full qty
14
SENSOR FOR FIRING
181809 (2) Full qty
15
Bolt Front Brake Hub
New       £ 0.32
16043834 (6) Full qty
BS00099n
16
WASHER
11198074 (6) Full qty
17
Speed Sensor
New       £ 49.75
182194 (2) Full qty
GB10362n
18
SCREW -M6 X 14-
14305724 (2) Full qty
19
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (2) Full qty
GE35524n
20
SCREW
14305824 (2) Full qty
21
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (2) Full qty
GE35524n
22
PISTONS COOLING NOZZLE
182973 (12) Full qty
23
O-RING
164877 (12) Full qty
24
SCREW
14302921 (12) Full qty
25
WASHER
11181474 (12) Full qty
26
STUD BOLT
13546934 (2) Full qty
27
Dowel
100052 (2) Full qty
28
STUD BOLT
13546734 (5) Full qty
29
SCREW
14305424 (12) Full qty
29
SCREW
14305324 (1) Full qty
30
WASHER
178348 (28) Full qty
31
Nut
133988 (28) Full qty
32
STUD
185084 (14) Full qty
33
ALIGNMENT DOWEL
176421 (14) Full qty
34
STUD BOLT
190426 (14) Full qty
35
O-RING
134704 (28) Full qty
36
Plug for lubricating ports
10269850 (3) Full qty
37
Transaxle Drain Plug
New       Price on Enquiry
104280 (1) Full qty
GB10488n
38
Copper Washer
New       Price on Enquiry
10261860 (1) Full qty
CC11528n
38
Copper Washer 22x27mm
New       £ 0.30
10263460 (1) Full qty
CC11530n
39
THREADED PLUG
194490 (1) Full qty
40
Front Main Oil Seal
New       £ 17.16
188717 (1) Full qty
TC14202n
41
ENGINE FIXING SUPPORT
186307 (2) Full qty
42
STUD
13546624 (8) Full qty
43
Nut
133988 (8) Full qty
44
WASHER
11190574 (8) Full qty
45
FLEXIBLE PAD
190255 (2) Full qty
46
RETAINING WASHER
182141 (2) Full qty
46
Motor Mount Washer
New       Price on Enquiry
204086 (2) Full qty
CC11644n
47
SCREW
15970634 (8) Full qty
48
Washer
127497 (8) Full qty
49
WASHER -Fastening diagonal gea…
13550424 (8) Full qty
50
SCREW
15864334 (2) Full qty
51
NUT
176573 (2) Full qty
52
WASHER
12601774 (2) Full qty
53
Dowel
125716 (2) Full qty
54
SHIELD
189819 (2) Full qty
55
SCREW
14305024 (6) Full qty
56
WASHER
12604274 (6) Full qty
57
SPACER FOR SHIELD ENGINE HOLDI…
188853 (2) Full qty
58
0
191430 (2) Full qty
58
R.H. ENGINE HOLDING CABLE
201868 (1) Full qty
58
L.H. ENGINE HOLDING CABLE
201869 (1) Full qty
59
SCREW
193849 (2) Full qty
60
WASHER
10523225 (2) Full qty
61
NUT
133216 (4) Full qty
62
FRONT COVER
190486 (1) Full qty
63
Front Cover Gasket Enzo
New       £ 240.83
190487 (1) Full qty
TC14209n
64
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (33) Full qty
GE35524n
65
SCREW
14305324 (2) Full qty
65
SCREW
14305424 (15) Full qty
66
SCREW -M6 X 30-
14305524 (3) Full qty
66
SCREW
14305624 (6) Full qty
67
SCREW
14305824 (2) Full qty
67
SCREW
14305924 (1) Full qty
67
SCREW
14306024 (4) Full qty
68
SCREW
14305324 (1) Full qty
69
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (14) Full qty
GE35524n
70
THREADED UNION
155093 (1) Full qty
71
THREADED UNION
158025 (1) Full qty
72
HEAT SHIELD
206943 (2) Full qty
73
STUD
198871 (1) Full qty
