Air Conditioning System

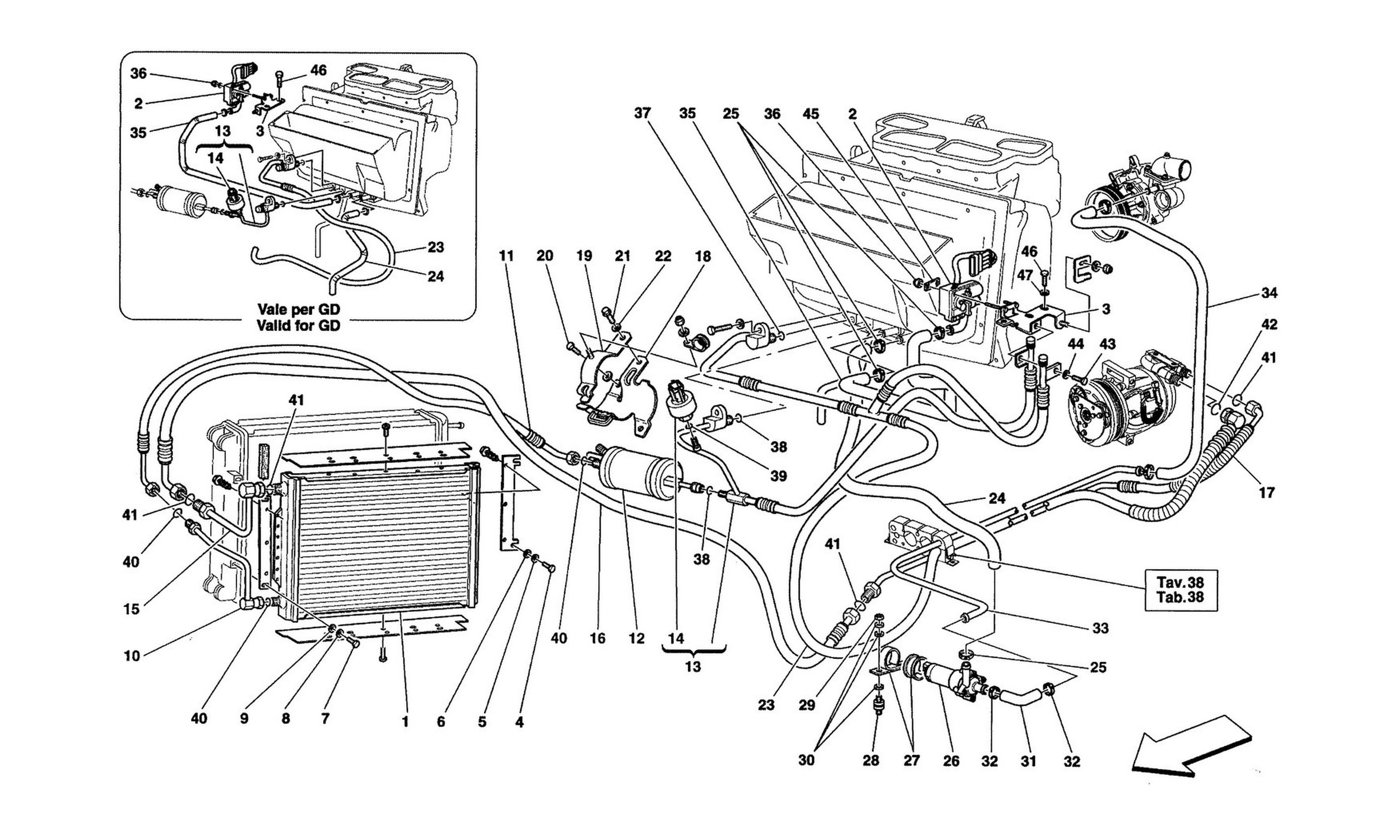

Schematic: Air Conditioning System
Loc
Part
Cond       Price
1
AC Condenser 360
178565 (1) Full qty
2
New       Price on Enquiry
65066400 (1) Full qty
AC00208n
3
VALVE FASTENING BRACKET
66150300 (1) Full qty
3
BRACKET FOR VALVE FIXING
65882200 (1) Full qty
4
SCREW -M6 X 14-
10902124 (3) Full qty
5
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
6
WASHER
14496424 (3) Full qty
7
Screw 6x15
60909500 (1) Full qty
8
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
9
WASHER
12643724 (1) Full qty
10
DELIVERY METAL PIPE
65830900 (1) Full qty
11
HOSE FROM CONDENSER TO FILTER…
65830700 (1) Full qty
12
New       Price on Enquiry
65628300 (1) Full qty
AC00304n
13
PIPE FROM FILTER TO A.C. SYSTE…
66643000 (1) Full qty
13
PIPE FROM FILTER TO A.C. SYSTE…
66147900 (1) Full qty
13
PIPE FROM FILTER TO A.C. SYSTE…
66090200 (1) Full qty
14
PRESSOSTAT
65628200 (1) Full qty
15
INLET METAL PIPE
65830800 (1) Full qty
16
PIPE FROM UNDERFLOOR PIPE TO C…
65830600 (1) Full qty
16
PIPE FROM UNDERFLOOR PIPE TO C…
65744300 (1) Full qty
17
UNDERFLOOR DELIVERY TUBE FRO…
65230500 (1) Full qty
18
FILTER SUPPORT
65539400 (1) Full qty
18
FILTER SUPPORT
65880700 (1) Full qty
19
BRACKET
65880900 (1) Full qty
19
BRACKET
65547700 (1) Full qty
20
SCREW
10902224 (2) Full qty
21
SCREW
68721400 (1) Full qty
21
SCREW
13840511 (1) Full qty
22
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
22
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
23
PIPE FROM A.C. SYSTEM TO COMPR…
66643100 (1) Full qty
23
PIPE FROM A.C. SYSTEM TO COMPR…
66148000 (1) Full qty
24
PIPE FROM MINIMUM PUMP TO A.C.…
65460800 (1) Full qty
24
PIPE FROM MINIMUM PUMP TO A.C.…
65744600 (1) Full qty
25
Clamp
13000390 (4) Full qty
26
WATER RECIRCULATION PUMP
65460300 (1) Full qty
27
BRACKET FOR PUMP FIXING
63994900 (1) Full qty
28
New       £ 18.63
142202 (2) Full qty
FU15682n
29
NUT
15896214 (2) Full qty
30
Spring washer
10571570 (2) Full qty
31
PIPE FROM UNDERBODY TUBE TO MI…
65460700 (1) Full qty
32
Clamp
13000390 (2) Full qty
33
WATER PIPE UNDERFLOOR
65231400 (1) Full qty
34
PIPE FROM WATER PUMP TO UNDR…
65831500 (1) Full qty
35
PIPE FROM A.C. HEATER TO TGK V…
65744700 (1) Full qty
35
PIPE FROM A.C. HEATER TO TGK V…
65231700 (1) Full qty
36
NUT
14078010 (2) Full qty
36
NUT
62790300 (2) Full qty
37
O-RING
66309800 (1) Full qty
38
O-RING
66309700 (2) Full qty
39
O-RING
66309600 (1) Full qty
40
O-RING
66309300 (2) Full qty
41
O.R. GASKET
66309400 (4) Full qty
42
O.R. GASKET
66309500 (1) Full qty
43
SCREW
10977524 (1) Full qty
44
Washer
11188079 (1) Full qty
45
PLATE
65929400 (1) Full qty
46
WASHER
11193274 (2) Full qty
46
SCREW
15210624 (2) Full qty
47
WASHER
11193274 (2) Full qty
