Doors - Framework And Trim

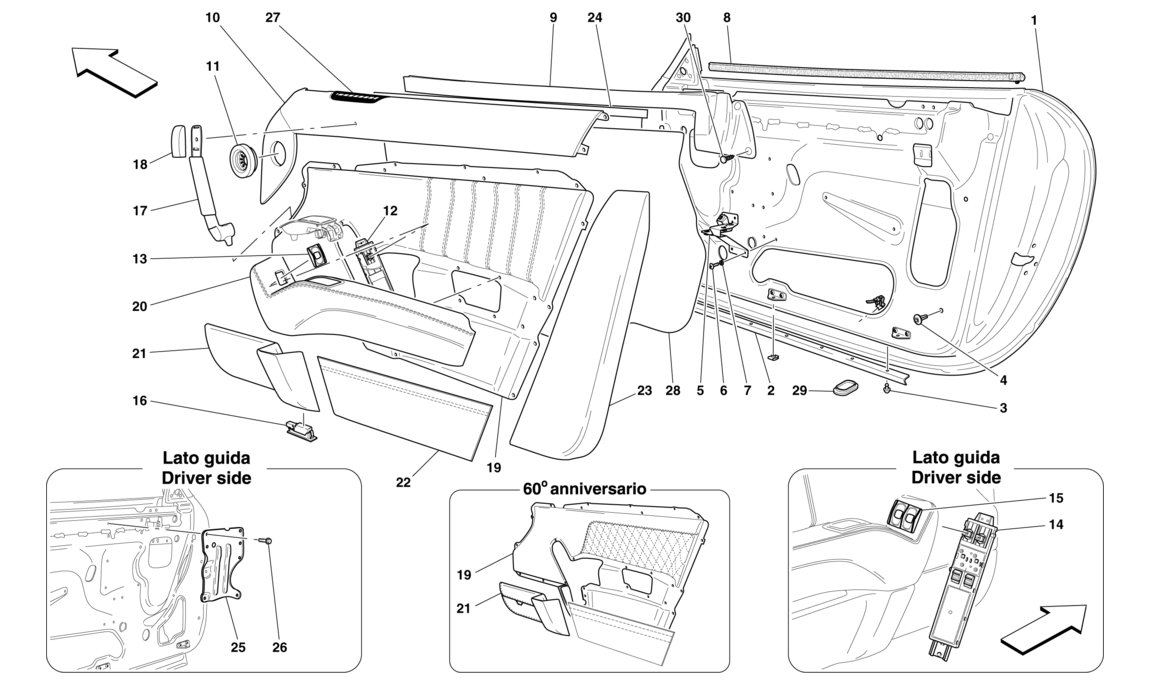

Schematic: Doors - Framework And Trim
Loc
Part
Cond       Price
1
RH DOOR BODYWORK
66990711 (1) Full qty
1
RH DOOR BODYWORK
80288711 (1) Full qty
1
LH DOOR BODYWORK
66990811 (1) Full qty
1
LH DOOR BODYWORK
80288811 (1) Full qty
2
GASKET
67613000 (2) Full qty
3
RIVET
62764000 (14) Full qty
4
New       £ 4.38
67302800 (8) Full qty
NT35371n
5
RH BRACKET
67000200 (1) Full qty
5
LH BRACKET
67000300 (1) Full qty
6
Screw
13274211 (6) Full qty
7
WASHER
12637824 (6) Full qty
8
RH EXTERNAL WINDOW SCRAPER
66867800 (1) Full qty
8
LH EXTERNAL WINDOW SCRAPER
66867900 (1) Full qty
9
RH INTERNAL WINDOW SCRAPER
67618800 (1) Full qty
9
LH INTERNAL WINDOW SCRAPER
67618900 (1) Full qty
10
RH UPPER PANEL
668638.. (1) Full qty
10
RH UPPER PANEL
674577.. (1) Full qty
10
RH UPPER PANEL
805352.. (1) Full qty
10
RH UPPER PANEL
805356.. (1) Full qty
10
LH UPPER PANEL
668639.. (1) Full qty
10
LH UPPER PANEL
674578.. (1) Full qty
10
LH UPPER PANEL
805354.. (1) Full qty
10
LH UPPER PANEL
805358.. (1) Full qty
11
AIR DUCT CONNECTOR
67001000 (2) Full qty
11
LH DOOR PANEL DEFROSTER CONNEC…
81152400 (2) Full qty
12
PASSENGER SIDE NODE ECU
191362 (1) Full qty
12
PASSENGER SIDE NODE ECU
228323 (1) Full qty
12
PASSENGER SIDE NODE ECU
221596 (1) Full qty
12
PASSENGER SIDE NODE ECU
240066 (1) Full qty
12
PASSENGER SIDE NODE ECU
240066 (1) Full qty
12
PASSENGER SIDE NODE ECU
272402 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
67000400 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
80986600 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
80986600 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
83976000 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
69543500 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
80986900 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
80986900 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
83976100 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
81145700 (1) Full qty
13
RH SEAT BELT SLOT SURROUND
81145800 (1) Full qty
14
DRIVER SIDE NODE ECU
191361 (1) Full qty
14
DRIVER SIDE NODE ECU
228321 (1) Full qty
14
DRIVER SIDE NODE ECU
272403 (1) Full qty
14
DRIVER SIDE NODE ECU
198644 (1) Full qty
14
DRIVER SIDE NODE ECU
228322 (1) Full qty
14
DRIVER SIDE NODE ECU
240065 (1) Full qty
14
DRIVER SIDE NODE ECU
221597 (1) Full qty
14
New       £ 728.87
240061 (1) Full qty
EL99451n
14
New       £ 728.87
240061 (1) Full qty
EL99451n
14
New       £ 728.87
240061 (1) Full qty
EL99451n
15
LH SEAT BELT SLOT SURROUND
67000500 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
80986700 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
80986700 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
83976200 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
69543700 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
80987000 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
80987000 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
83976300 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
81146900 (1) Full qty
15
LH SEAT BELT SLOT SURROUND
81147000 (1) Full qty
16
LIGHT UNIT
188250 (1) Full qty
17
RH HANDLE
668644.. (1) Full qty
17
RH HANDLE
689785.. (1) Full qty
17
RH HANDLE
805384.. (1) Full qty
17
RH HANDLE
805386.. (1) Full qty
17
RH HANDLE
806550.. (1) Full qty
17
LH HANDLE
809141.. (1) Full qty
17
LH HANDLE
678510.. (1) Full qty
17
LH HANDLE
689796.. (1) Full qty
17
LH HANDLE
805387.. (1) Full qty
17
LH HANDLE
805389.. (1) Full qty
18
CAP
67174100 (1) Full qty
18
CAP
69543600 (1) Full qty
18
CAP
81145500 (1) Full qty
18
CAP
81145600 (1) Full qty
18
CAP
81174500 (1) Full qty
18
CAP
81174600 (1) Full qty
18
CAP
67458900 (1) Full qty
18
CAP
69543800 (1) Full qty
19
CENTRE RH PANEL
679330.. (1) Full qty
19
CENTRE RH PANEL
805360.. (1) Full qty
19
CENTRE RH PANEL
806410.. (1) Full qty
19
CENTRE RH PANEL
806562.. (1) Full qty
19
LH CENTRE PANEL
679331.. (1) Full qty
19
LH CENTRE PANEL
805363.. (1) Full qty
19
LH CENTRE PANEL
806411.. (1) Full qty
19
LH CENTRE PANEL
806565.. (1) Full qty
20
RH ARMREST
679306.. (1) Full qty
20
RH ARMREST
674585.. (1) Full qty
20
RH ARMREST
805367.. (1) Full qty
20
RH ARMREST
805371.. (1) Full qty
20
LH ARMREST
679307.. (1) Full qty
20
LH ARMREST
674586.. (1) Full qty
20
LH ARMREST
805369.. (1) Full qty
20
LH ARMREST
805373.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692184.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806730.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692185.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806731.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692186.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806732.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692187.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806733.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692188.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806734.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692189.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806735.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692190.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806736.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692191.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806737.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692192.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806738.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692193.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806739.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692194.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806740.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692195.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806741.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692196.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806742.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692197.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806743.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
692198.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806744.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
692199.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806745.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807640.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807641.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807642.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807643.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807644.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807645.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807646.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807647.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807648.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807649.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807650.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807651.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807652.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807653.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807654.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807655.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807656.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807657.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807658.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807659.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807660.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807661.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807662.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807663.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807664.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807665.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807666.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807667.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807668.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807669.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807670.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807671.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807672.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807673.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807674.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807675.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807676.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807677.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807678.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807679.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807680.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807681.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807682.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807683.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807684.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807685.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
807686.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
807687.. (1) Full qty
21
RH FRONT LOWER SUBSTRUCTURE
806563.. (1) Full qty
21
LH FRONT LOWER SUBSTRUCTURE
806566.. (1) Full qty
22
ODDMENT STORAGE POCKET
679393.. (2) Full qty
22
ODDMENT STORAGE POCKET
806418.. (2) Full qty
23
RH REAR STRIP
679320.. (1) Full qty
23
RH REAR STRIP
805375.. (1) Full qty
23
LH REAR STRIP
679321.. (1) Full qty
23
LH REAR STRIP
805378.. (1) Full qty
24
RH WINDOW SCRAPER
66865500 (1) Full qty
24
LH WINDOW SCRAPER
66865600 (1) Full qty
25
LH REINFORCEMENT
68115600 (1) Full qty
25
RH REINFORCEMENT
68297900 (1) Full qty
26
SCREW
16132624 (4) Full qty
27
RH AIR VENT
802894.. (1) Full qty
27
LH AIR VENT
802895.. (1) Full qty
28
RH WATERPROOF MEMBRANE
66865700 (1) Full qty
28
LH WATERPROOF MEMBRANE
66865800 (1) Full qty
29
CAP
67935100 (4) Full qty
30
CLIP
178949 (4) Full qty
