Lubrication System - Tank

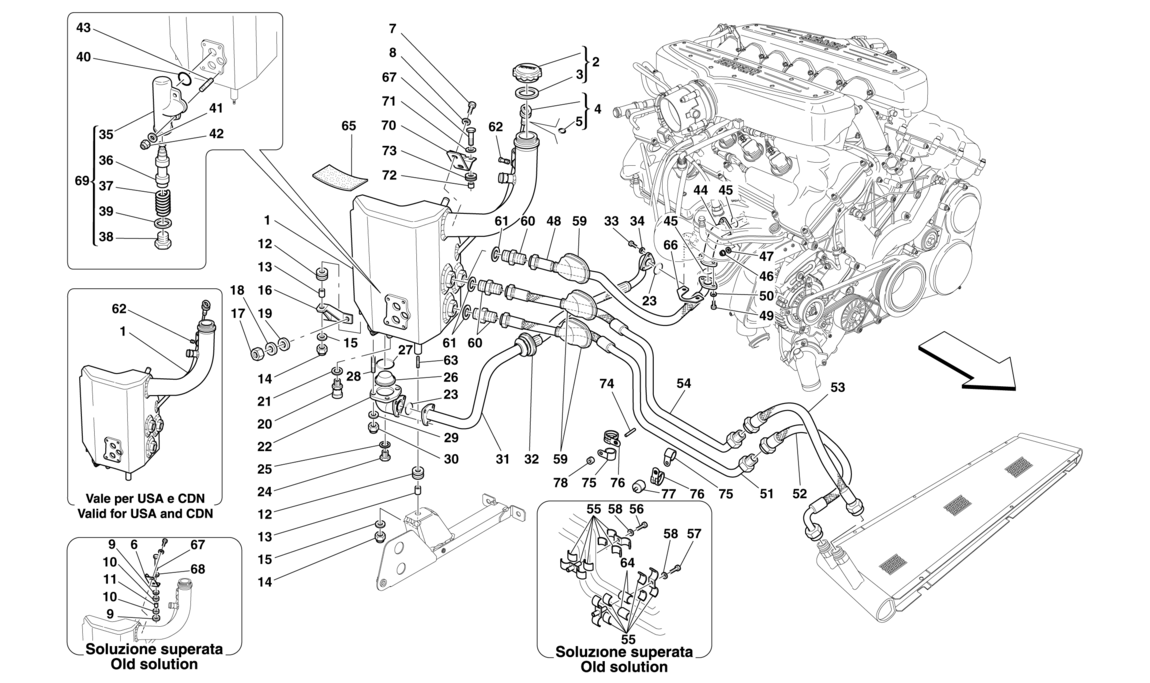

Schematic: Lubrication System - Tank
Loc
Part
Cond       Price
1
OIL TANK
224541 (1) Full qty
2
COMPLETE CAP
175708 (1) Full qty
3
GASKET
175709 (1) Full qty
4
DIPSTICK
225788 (1) Full qty
5
O-RING
233118 (1) Full qty
5
New       Price on Enquiry
121813 (1) Full qty
GE00074n
6
UPPER BRACKET
218428 (1) Full qty
7
Screw
10902024 (2) Full qty
8
WASHER
12620474 (2) Full qty
9
Cup
107979 (2) Full qty
10
New       £ 8.29
107978 (2) Full qty
SU12063n
11
New       £ 4.83
107980 (1) Full qty
SU12065n
12
New       Price on Enquiry
103549 (2) Full qty
AC00210n
13
New       Price on Enquiry
149707 (2) Full qty
CS11902n
14
NUT
14059214 (2) Full qty
15
WASHER
12643724 (2) Full qty
16
INFERIOR BRACKET
194451 (1) Full qty
17
SCREW
16043434 (2) Full qty
18
WASHER
12647024 (2) Full qty
19
Do Not Use - See GE07667n
12601374 (2) Full qty
19
New       £ 0.12
12601374 (2) Full qty
CH11905n
20
WATER/OIL TEMPERATURE SENSOR
180137 (1) Full qty
21
GASKET
153722 (1) Full qty
22
OIL PICKUP
210914 (1) Full qty
23
New       £ 0.53
153628 (2) Full qty
CL12024n
23
New       Price on Enquiry
153628 (2) Full qty
SU11796n
24
Threaded Plug 575 Oil Tank
10300711 (1) Full qty
25
New       Price on Enquiry
10257060 (1) Full qty
CC11524n
25
New       £ 0.21
10257060 (1) Full qty
SM99909n
26
New       £ 27.23
100332 (1) Full qty
SU11418n
26
New       Price on Enquiry
100332 (1) Full qty
SU11720n
27
New       Price on Enquiry
125521 (1) Full qty
GE00302n
28
STUD BOLT
11500424 (4) Full qty
28
STUD BOLT
11500424 (4) Full qty
29
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
30
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
31
OIL PIPE FROM PUMP TO PICKUP
224291 (1) Full qty
31
OIL PIPE FROM PUMP TO PICKUP
234734 (1) Full qty
32
BELLOW
202151 (1) Full qty
33
SCREW
14433124 (3) Full qty
34
WASHER
12604274 (3) Full qty
35
VALVE BODY
227443 (1) Full qty
36
THERMOSTAT VALVE
163951 (1) Full qty
36
THERMOSTAT VALVE
163951 (1) Full qty
37
Spring
136867 (1) Full qty
38
Plug
136868 (1) Full qty
39
New       Price on Enquiry
10303460 (1) Full qty
SU11654n
40
O-RING
139934 (3) Full qty
41
Washer 1.6mm 6.4x11.95x1.6
10519424 (4) Full qty
42
Nut
102741 (4) Full qty
43
STUD
13540924 (4) Full qty
44
OIL OUTLET PIPE
219688 (1) Full qty
45
New       £ 0.53
153628 (2) Full qty
CL12024n
45
New       Price on Enquiry
153628 (2) Full qty
SU11796n
46
NUT
177778 (3) Full qty
47
WASHER
12604474 (3) Full qty
48
OIL PIPE FROM ENGINE TO TANK
225621 (1) Full qty
48
OIL PIPE FROM ENGINE TO TANK
246353 (1) Full qty
49
SCREW
16043524 (2) Full qty
50
WASHER
12604474 (2) Full qty
51
OIL PIPE FROM TANK TO RADIATOR…
225623 (1) Full qty
52
OIL PIPE FROM TANK TO RADIATOR…
225628 (1) Full qty
53
OIL PIPE FROM RADIATOR TO TANK…
225630 (1) Full qty
54
OIL PIPE FROM RADIATOR TO TANK…
225633 (1) Full qty
55
FASTENING BRACKET
218425 (2) Full qty
56
SCREW
10903711 (1) Full qty
57
SCREW
10903424 (1) Full qty
58
WASHER
12604274 (2) Full qty
59
BELLOW
202152 (3) Full qty
60
Union
138150 (3) Full qty
61
New       Price on Enquiry
144487 (3) Full qty
GB10464n
62
CONNECTOR -Not for CINA, USA, …
117715 (1) Full qty
62
THREADED PLUG -Applicable for …
14326101 (1) Full qty
63
STUD BOLT
11500524 (2) Full qty
64
SLEEVE
228208 (2) Full qty
64
SLEEVE
228209 (2) Full qty
65
Rubber spacer
142798 (2) Full qty
66
SHIELD
231837 (1) Full qty
67
SCREW
10902824 (1) Full qty
68
WASHER
12620474 (1) Full qty
69
COMPLETE THERMOSTAT VALVE
235648 (1) Full qty
70
UPPER BRACKET
252336 (1) Full qty
71
WASHER
12643724 (1) Full qty
72
New       Price on Enquiry
149707 (1) Full qty
CS11902n
73
New       Price on Enquiry
103549 (1) Full qty
AC00210n
74
STUD
11501024 (1) Full qty
75
Bracket
10441790 (2) Full qty
76
Bracket
10442190 (2) Full qty
77
Fuel Pump Mounting
102947 (1) Full qty
77
New       Price on Enquiry
102947 (1) Full qty
GE00644n
78
SHIM
13604115 (1) Full qty
