Doors - Frameworks And Coverings

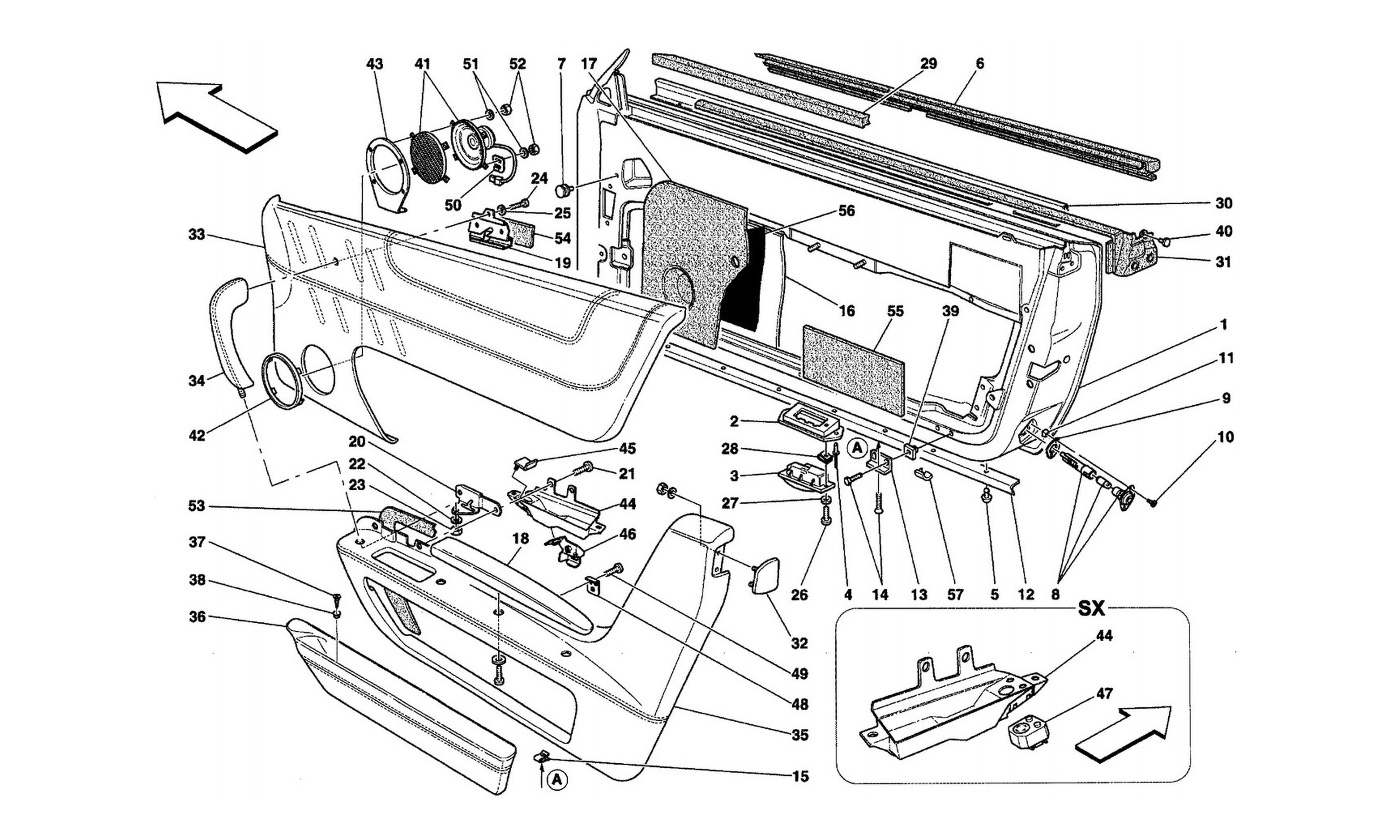

Schematic: Doors - Frameworks And Coverings
Loc
Part
Cond       Price
1
R.H. DOOR FRAME
66086400 (1) Full qty
1
L.H. DOOR FRAME
66086900 (1) Full qty
2
Frame
60842000 (2) Full qty
3
Roof lamp
65088400 (2) Full qty
4
Rivet to fix. evaporator apron…
60643400 (4) Full qty
5
RIVET
62764000 (16) Full qty
6
R.H. OUTER GLASS SCRAPER
64715800 (1) Full qty
6
L.H. OUTER GLASS SCRAPER
64715900 (1) Full qty
7
New       £ 0.39
64580400 (12) Full qty
NT00060n
8
OPENING DOOR LAMP WITH BULB
184786 (2) Full qty
9
GASKET
140576 (2) Full qty
10
SCREW
15901475 (4) Full qty
11
BLOCK
14115580 (4) Full qty
12
R.H. OUTER LOWER GASKET
63758200 (1) Full qty
12
SEAT BACK CENTRAL
672831.. (2) Full qty
12
L.H. OUTER LOWER GASKET
63488300 (1) Full qty
13
BRACKET
64592600 (6) Full qty
14
SCREW
15957201 (18) Full qty
15
BLOCK
14115885 (12) Full qty
16
WATER PROTECTION CLOTH FOR SWI…
65059500 (2) Full qty
17
R.H. WATER PROTECTION CLOTH
66085500 (1) Full qty
17
L.H. WATER PROTECTION CLOTH
66085600 (1) Full qty
18
R.H. DOOR ARM-REST
670881.. (1) Full qty
18
L.H. DOOR ARM-REST
670882.. (1) Full qty
19
R.H. UPPER BRACKET FOR HANDLE …
66177200 (1) Full qty
19
L.H. UPPER BRACKET FOR HANDLE …
66177300 (1) Full qty
20
R.H. BRACKET
66163800 (1) Full qty
20
L.H. BRACKET
66163900 (1) Full qty
21
SCREW
13274014 (4) Full qty
22
Washer
12646601 (2) Full qty
23
NUT
14058421 (2) Full qty
24
SCREW
14304621 (2) Full qty
25
Washer
12624101 (2) Full qty
26
SCREW
15901575 (4) Full qty
27
WASHER
62767100 (4) Full qty
28
CLIP
62767500 (4) Full qty
29
R.H. GASKET
65196100 (1) Full qty
29
L.H. GASKET
65196200 (1) Full qty
30
R.H. GLASS SCRAPER
66288400 (1) Full qty
30
L.H. GLASS SCRAPER
66288500 (1) Full qty
31
R.H. GASKET
64905000 (1) Full qty
31
L.H. GASKET
64905100 (1) Full qty
32
R.H. PANEL SEAL
645912.. (1) Full qty
32
L.H. PANEL SEAL
645911.. (1) Full qty
33
R.H. UPPER PANEL
661600.. (1) Full qty
33
R.H. LINING
665337.. (1) Full qty
33
R.H. UPPER PANEL
666354.. (1) Full qty
33
R.H. LINING
666360.. (1) Full qty
33
L.H. UPPER PANEL
661601.. (1) Full qty
33
L.H. UPPER PANEL
666355.. (1) Full qty
33
L.H. LINING
666361.. (1) Full qty
34
R.H. HANDLE MOULDING
661632.. (1) Full qty
34
R.H. HANDLE LINING
661636.. (1) Full qty
34
L.H. HANDLE MOULDING
661633.. (1) Full qty
34
L.H. HANDLE LINING
661637.. (1) Full qty
35
R.H. LOWER PANEL
661610.. (1) Full qty
35
R.H. LINING
661618.. (1) Full qty
35
R.H. LOWER PANEL
666366.. (1) Full qty
35
R.H. LINING
666374.. (1) Full qty
35
R.H. LOWER PANEL
66836300 (1) Full qty
35
R.H. LOWER PANEL
66837300 (1) Full qty
35
L.H. LOWER PANEL
661611.. (1) Full qty
35
L.H. LINING
661619.. (1) Full qty
35
L.H. LOWER PANEL
666367.. (1) Full qty
35
L.H. LINING
666375.. (1) Full qty
35
L.H. LOWER PANEL
66836400 (1) Full qty
35
L.H. LOWER PANEL
66837400 (1) Full qty
36
R.H. POCKET
661622.. (1) Full qty
36
R.H. LINING
661626.. (1) Full qty
36
R.H. POCKET
66836700 (1) Full qty
36
L.H. POCKET
661623.. (1) Full qty
36
L.H. LINING
661627.. (1) Full qty
36
L.H. POCKET
66836800 (1) Full qty
37
SCREW
15915977 (8) Full qty
38
New       £ 3.25
66853800 (8) Full qty
NT35376n
39
BLOCK
14115885 (12) Full qty
40
BUTTON
14592587 (6) Full qty
41
LOUD SPEAKER WOOFER
184676 (2) Full qty
41
Door Speaker 575SA
183364 (2) Full qty
42
RING NUT MOULDING
66285000 (2) Full qty
43
LOUD SPEAKER SUPPORTING BRACKE…
66286500 (2) Full qty
44
R.H. HANDLE PLATE
66220900 (1) Full qty
44
L.H. HANDLE PLATE
66221000 (1) Full qty
45
MOULDING BRACKET
66639000 (1) Full qty
46
R.H. BRACKET FOR HANDLE FIXING…
66177900 (1) Full qty
46
L.H. BRACKET FOR HANDLE FIXING…
66178000 (1) Full qty
47
SWITCH FOR OUTER REARVIEW
191046 (1) Full qty
48
BRACKET FOR POCKET
66177800 (6) Full qty
49
SCREW
15782601 (12) Full qty
50
FRONT CONNECTOR FIXING BRACKET…
175856 (2) Full qty
51
Washer
12642801 (8) Full qty
52
NUT
10794014 (8) Full qty
53
SPONGE
67124800 (1) Full qty
54
SPONGE
67124900 (1) Full qty
55
SPONGE
67125000 (1) Full qty
56
WATER PROTECTION CLOTH
67668900 (2) Full qty
57
RUBBER
67111400 (4) Full qty
