Fuel Tanks, Pumps And Pipes

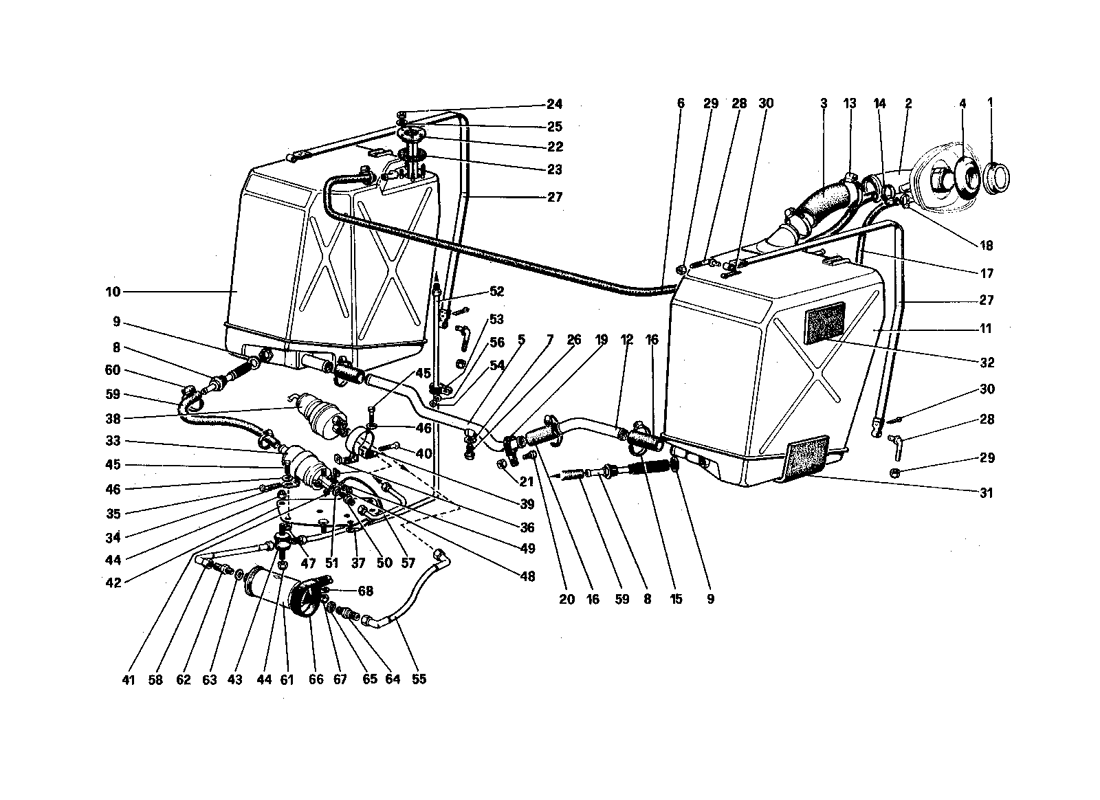

Schematic: Fuel Tanks, Pumps And Pipes
Loc
Part
Cond       Price
1
Filler cap
113401 (1) Full qty
1
Tappo per bocchettone di caric…
118941 (1) Full qty
2
Bocchettone di carico
117881 (1) Full qty
3
Manicotto
117617 (1) Full qty
4
New       Price on Enquiry
101465 (1) Full qty
BW10224n
4
Fuel Filler Neck Seal
101465 (1) Full qty
5
Tubo Dx. collegamento serbatoi…
117882 (1) Full qty
6
Tubo sfiato dal serbatoio dest…
103442 (1) Full qty
7
Gasket
10278650 (1) Full qty
8
Filter on tank
116404 (2) Full qty
9
Gasket for fuel filter
117884 (2) Full qty
10
Serbatoio Dx. carburante
117880 (1) Full qty
11
Serbatoio Sx. carburante
117879 (1) Full qty
12
Tubo sinistro collegamento ser…
105821 (1) Full qty
13
New       £ 2.95
12174790 (2) Full qty
FU00141n
14
Clamp
12179990 (2) Full qty
15
Clamp
108785 (6) Full qty
16
Fuel Cross Over Hose
114277 (3) Full qty
16
New       £ 17.46
114277 (3) Full qty
FU14423n
17
Tubo sfiato dal bocchettone
105959 (1) Full qty
18
Fascetta
101296 (1) Full qty
19
Pipe supporting clamp
106195 (1) Full qty
20
Vite
106196 (1) Full qty
21
Nut
12574211 (1) Full qty
22
Comando indicatore di livello
117883 (1) Full qty
23
New       £ 12.05
101462 (1) Full qty
FT10041n
23
New       Price on Enquiry
101462 (1) Full qty
FU14074n
24
Nut
10794011 (6) Full qty
25
Washer
106848 (6) Full qty
26
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
27
Nastro fissaggio serbatoi
110317 (2) Full qty
28
Tie rod for strap
12311271 (4) Full qty
29
Nut
16104111 (4) Full qty
30
Cotter pin
10796401 (4) Full qty
31
Feltro adattamento serbatoi
106479 (6) Full qty
32
Shim for tanks
107889 (8) Full qty
33
Fuel Pump
113976 (2) Full qty
34
Pump retaining clamp
113673 (2) Full qty
35
Screw
10377311 (2) Full qty
36
Square nut
14089311 (4) Full qty
37
Earth cable
115153 (2) Full qty
38
Fuel Accumulator 0438170004
113978 (2) Full qty
39
Accumulator retaining clamp
113674 (2) Full qty
40
Screw
10376111 (2) Full qty
41
New       Price on Enquiry
107003 (4) Full qty
EL99222n
42
Supporto Dx.
117841 (1) Full qty
42
Supporto Sx.
117842 (1) Full qty
43
Fuel Pump Mounting
102947 (6) Full qty
43
New       Price on Enquiry
102947 (6) Full qty
GE00644n
44
Dado autobloccante
12574221 (12) Full qty
45
Screw
10902121 (8) Full qty
46
Washer
10519421 (4) Full qty
50
Union on delivery side
109797 (2) Full qty
51
Gasket
113910 (2) Full qty
52
Tubo dal filtro al dosatore Dx…
117844 (1) Full qty
52
Tubo dal filtro al dosatore Sx…
117846 (1) Full qty
53
Clamp
10441190 (6) Full qty
55
Tubo dall'accumulatore al filt…
117847 (2) Full qty
56
Washer
10519401 (6) Full qty
57
Pipe from pump to accumulator
115532 (2) Full qty
58
Pipe, accumulator to filter
117848 (2) Full qty
59
New       Price on Enquiry
117873 (2) Full qty
FT10026n
60
Clamp
12179590 (4) Full qty
61
Fuel Filter
113977 (2) Full qty
64
Union on feeding side
109889 (2) Full qty
65
New       £ 1.25
10280060 (2) Full qty
FU00140n
66
Bracket
113909 (2) Full qty
67
Selflocking nut
16104121 (2) Full qty
68
Rosetta
11193871 (2) Full qty
