Antievaporation Device -Valid For Usa M.Y. 2000 And Cdn M.Y. 2000-

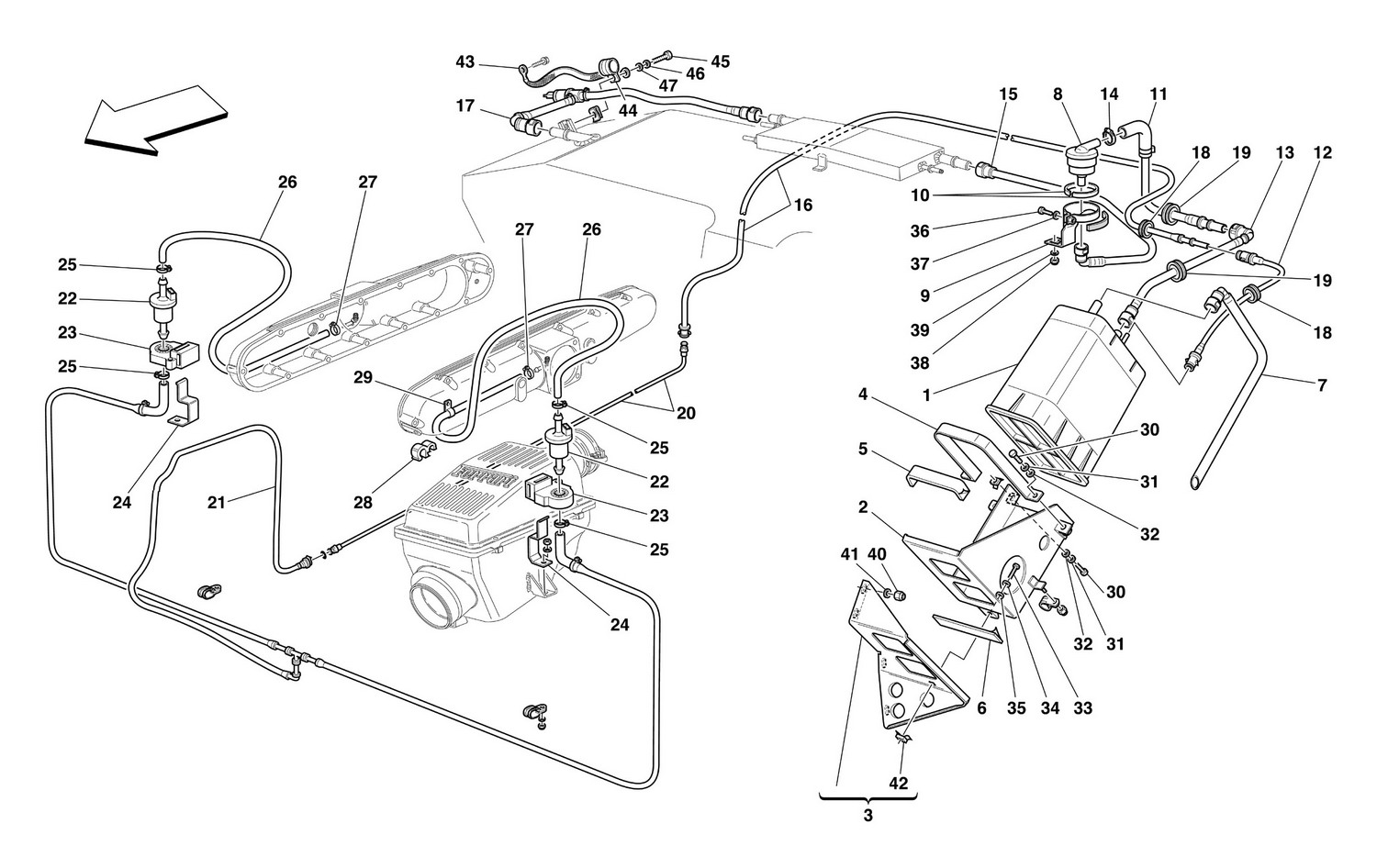

Schematic: Antievaporation Device -Valid For Usa M.Y. 2000 And Cdn M.Y. 2000-
Loc
Part
Cond       Price
1
FUEL VAPOR FILTER
178536 (1) Full qty
2
VAPOR FILTER CONTAINER
180783 (1) Full qty
3
CONTAINER SUPPORT
180777 (1) Full qty
4
FIXING BRACKET
180781 (1) Full qty
5
RUBBER THICKNESS
180789 (1) Full qty
6
RUBBER THICKNESS
180790 (3) Full qty
7
VAPOR FILTER EXHAUST TUBE
181186 (1) Full qty
8
New       Price on Enquiry
180573 (1) Full qty
FU15740n
9
FIXING BRACKET
180866 (1) Full qty
10
RUBBER THICKNESS
180867 (1) Full qty
11
PIPE FROM VALVE TO VAPOR FILT…
100259 (1) Full qty
12
PIPE FROM VAPOR FILTER TO UND…
181185 (1) Full qty
13
PIPE FROM CONNECTION TO VAPOR …
181178 (1) Full qty
14
Clamp
13000390 (1) Full qty
15
PIPE FROM DISAERATOR TO VALVE
181179 (1) Full qty
16
PIPE FROM CONNECTION TO UNDER…
181177 (1) Full qty
17
PIPE WITH UNION
182061 (1) Full qty
18
Wire carrier
10396680 (2) Full qty
19
CABLE GROMMET
10397980 (2) Full qty
20
UNDERFLOOR TUBE
183821 (1) Full qty
20
UNDERFLOOR TUBE
181176 (1) Full qty
21
PIPE FROM UNDERFLOOR TUBE TO …
181174 (1) Full qty
22
New       Price on Enquiry
162412 (2) Full qty
FU14092n
23
BUFFER FOR SUPPORT
174623 (2) Full qty
24
R.H. PAD SUPPORT BRACKET
178792 (2) Full qty
25
COLLAR FOR SLEEVE
13431870 (4) Full qty
26
PIPE FROM AIR CAPACITY TO VALV…
179768 (2) Full qty
27
SCREW COLLAR
157934 (2) Full qty
27
SCREW COLLAR
157934 (2) Full qty
28
CLIP
180148 (2) Full qty
29
Clamp ? 14 mm
10418601 (2) Full qty
30
Screw
10902024 (2) Full qty
31
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
32
WASHER
14499324 (2) Full qty
33
Screw
10902024 (2) Full qty
34
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
35
WASHER
14499324 (2) Full qty
36
Screw
10902024 (1) Full qty
37
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
38
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
39
WASHER
14499324 (2) Full qty
40
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
41
WASHER
14499324 (4) Full qty
42
Caget nut
60758600 (1) Full qty
43
GROUND CABLE
184206 (1) Full qty
44
Bracket
10442190 (1) Full qty
45
SCREW
10977824 (1) Full qty
46
WASHER -No longer supplied- -R…
13577701 (1) Full qty
47
Washer For pump
10571470 (1) Full qty
