Clutch And Gearbox Hydraulic Controls

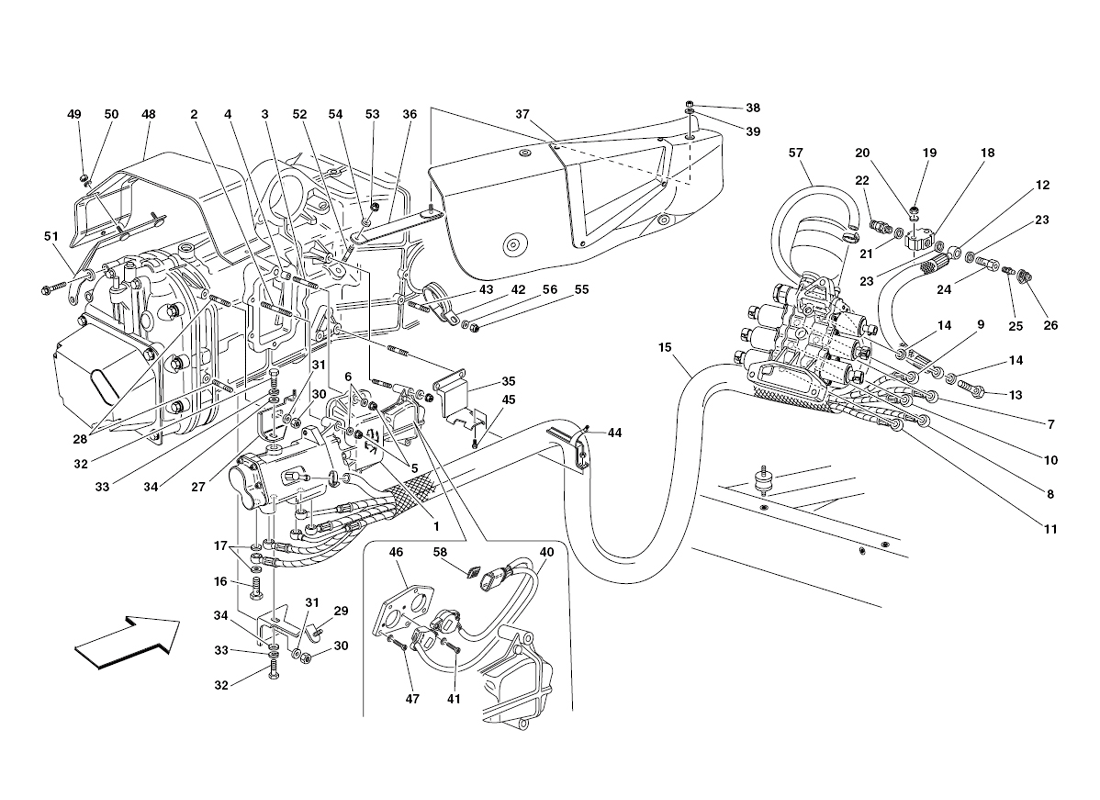

Schematic: Clutch And Gearbox Hydraulic Controls
Schematic: Clutch And Gearbox Hydraulic Controls
Loc
Part
Cond       Price
1
COMPLETE HYDRAULIC ACTUATOR
220244 (1) Full qty
2
STUD
11501024 (4) Full qty
3
STUD
11500724 (2) Full qty
4
Dowel
103038 (2) Full qty
5
NUT
16100814 (2) Full qty
6
Wavy Lock Washer 8mm
127496 (2) Full qty
7
PIPE (EV1)
179340 (1) Full qty
7
PIPE (EV1)
232407 (1) Full qty
8
PIPE (EV2)
179342 (1) Full qty
8
PIPE (EV2)
232408 (1) Full qty
9
PIPE (EV3)
179343 (1) Full qty
9
PIPE (EV3)
232409 (1) Full qty
10
PIPE (EV4)
179344 (1) Full qty
10
PIPE (EV4)
232410 (1) Full qty
11
PIPE (EV5)
179345 (1) Full qty
11
PIPE (EV5)
232411 (1) Full qty
12
PIPE FROM PUMP TO BLOCK
217346 (1) Full qty
13
UNION
171454 (3) Full qty
13
UNION
204545 (3) Full qty
14
Gasket
10261060 (12) Full qty
15
PROTECTIVE SHEATH
179346 (1) Full qty
16
UNION
171454 (2) Full qty
16
UNION
204543 (3) Full qty
17
Gasket
10261060 (10) Full qty
18
BLOCK
175667 (1) Full qty
19
NUT
15896214 (2) Full qty
20
Washer
12601279 (2) Full qty
21
WASHER
171755 (1) Full qty
22
QUICK MALE COUPLING
210468 (1) Full qty
23
Gasket
10261060 (2) Full qty
24
UNION
171630 (1) Full qty
25
Bleed Screw
152954 (1) Full qty
26
PROTECTION BOOT
152955 (1) Full qty
27
UPPER ACTUATOR SUPPORT BRACKET…
174257 (1) Full qty
28
STUD
13516424 (2) Full qty
29
ACTUATOR SUPPORT LOWER BRACKET…
195549 (1) Full qty
30
NUT
16100814 (2) Full qty
31
Wavy Lock Washer 8mm
127496 (2) Full qty
32
Screw
16043124 (2) Full qty
33
Wavy Lock Washer 8mm
127496 (2) Full qty
34
Washer
10519624 (2) Full qty
35
TUBES MOUNTING BRACKET
208101 (1) Full qty
36
SHIELD MOUNTING BRACKET
208242 (1) Full qty
37
SHIELD FOR ACTUATOR PROTECTION…
224391 (1) Full qty
38
NUT
160472 (4) Full qty
39
WASHER
12637824 (4) Full qty
40
COMPLETE SENSOR KIT
193442 (1) Full qty
41
SCREW
192865 (4) Full qty
42
BRACKET WITH SHEATH
124034 (1) Full qty
43
STUD
13540724 (1) Full qty
44
BRACKET
208103 (1) Full qty
45
Screw
16043124 (1) Full qty
46
POTENTIOMETERS FLANGE
222502 (1) Full qty
47
SCREW
192866 (4) Full qty
48
SENSOR PROTECTION SHIELD
224390 (1) Full qty
49
NUT
160472 (2) Full qty
50
WASHER
12637824 (2) Full qty
51
SHIELD MOUNTING BRACKET
180745 (1) Full qty
52
STUD
13516424 (1) Full qty
53
NUT
177778 (1) Full qty
54
WASHER
12638524 (2) Full qty
55
Nut
102741 (1) Full qty
56
WASHER
12643724 (1) Full qty
57
OIL RECYCLE PIPE
180965 (1) Full qty
58
CLIP
213472 (1) Full qty
