Crankcase

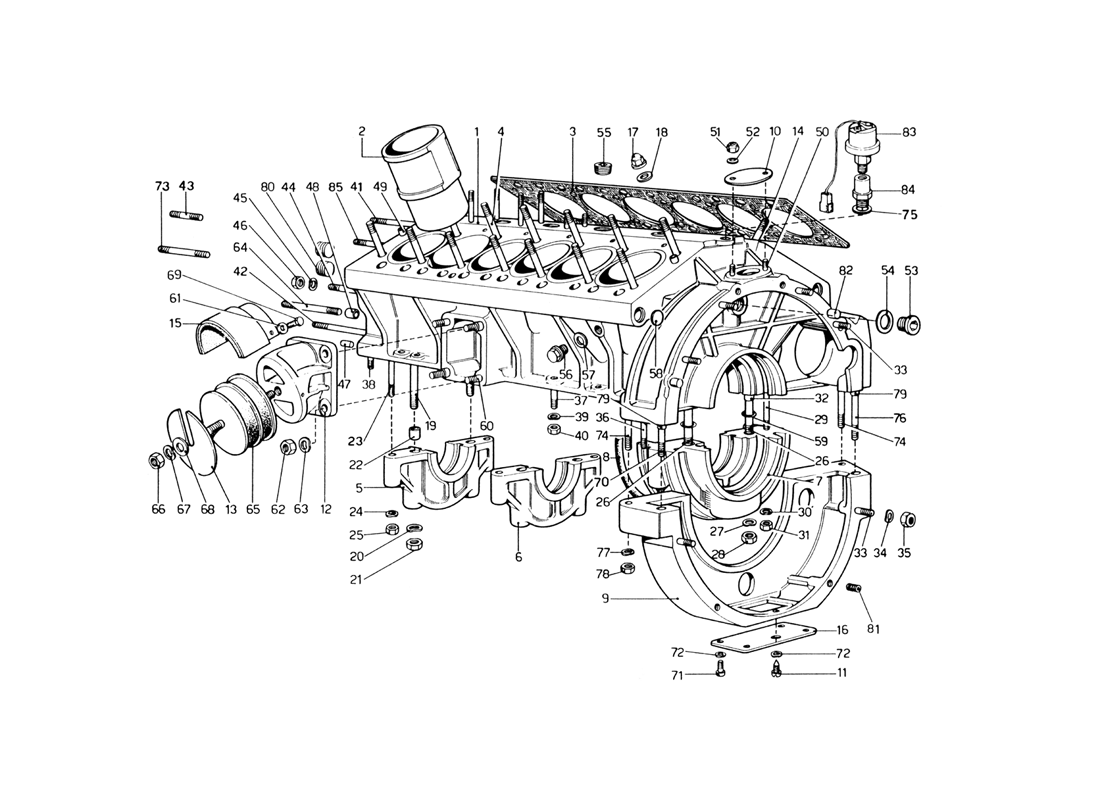

Schematic: Crankcase
Loc
Part
Cond       Price
1
Basamento completo
108886 (1) Full qty
1
Basamento
108742 (1) Full qty
2
Canna cilindro
108819 (12) Full qty
3
Gasket
100096 (2) Full qty
4
New       £ 26.35
100098 (27) Full qty
CH11906n
5
Front support
108829 (1) Full qty
6
Intermediate support
108827 (5) Full qty
7
Rear support
108828 (1) Full qty
8
New       Price on Enquiry
100055 (1) Full qty
CC11672n
9
Ftangia attacco frizione
109944 (1) Full qty
10
Inspection cover
102902 (1) Full qty
11
Grano indice fasatura
100182 (1) Full qty
12
Support for crankcase
105263 (2) Full qty
13
New       Price on Enquiry
100084 (4) Full qty
CC11588n
14
New       £ 29.95
100099 (1) Full qty
CH20084n
15
Guard for buffer
105266 (2) Full qty
16
Plate on rear flange
100183 (1) Full qty
17
New       £ 9.35
100101 (28) Full qty
CH11520n
18
New       £ 1.35
100100 (28) Full qty
CC11675n
19
Long stud
100012 (12) Full qty
20
Washer
11198673 (12) Full qty
21
Nut
16101521 (12) Full qty
22
Dowel
100013 (12) Full qty
23
Short stud
103183 (12) Full qty
24
Washer
103180 (12) Full qty
25
Nut
103181 (12) Full qty
26
Long stud
104170 (2) Full qty
27
New       Price on Enquiry
12601571 (2) Full qty
CC11570n
28
Nut
16101521 (2) Full qty
29
Short stud
103179 (2) Full qty
30
Washer
103180 (2) Full qty
31
Nut
103181 (2) Full qty
32
Dowel
100013 (2) Full qty
33
Stud bolt
13543921 (6) Full qty
34
Washer
11198073 (6) Full qty
35
Nut
16100821 (6) Full qty
36
Stud. securing sump
100020 (2) Full qty
37
Stud
13517321 (10) Full qty
38
Stud
13516821 (2) Full qty
39
Washer
11198073 (14) Full qty
40
Nut
16100821 (14) Full qty
41
Stud
100036 (2) Full qty
42
Stud
100037 (1) Full qty
43
Stud for belt stretcher
13517421 (1) Full qty
44
Stud
100038 (1) Full qty
45
Washer
11198073 (6) Full qty
46
Nut
16100821 (5) Full qty
46
New       Price on Enquiry
101240 (1) Full qty
TC14168n
47
Dowel
100040 (1) Full qty
48
Dowel
100041 (1) Full qty
49
Grano
100097 (4) Full qty
50
Stud for cover of flywheel ins…
11500021 (2) Full qty
51
Cam/Chain Cover Nuts
101239 (2) Full qty
51
Cam/Chain Cover Nuts
101239 (2) Full qty
51
New       £ 7.21
101239 (2) Full qty
CH11808n
52
Washer
10414170 (1) Full qty
53
Cap
10275040 (1) Full qty
54
New       £ 0.30
10263460 (1) Full qty
CC11530n
55
New       £ 16.45
10269950 (2) Full qty
CC11739n
55
New       £ 16.48
10269950 (2) Full qty
CH20087n
56
New       £ 10.95
10300740 (2) Full qty
CC11774n
57
New       Price on Enquiry
10257060 (2) Full qty
CC11524n
57
New       £ 0.21
10257060 (2) Full qty
SM99909n
58
New       Price on Enquiry
10158801 (4) Full qty
CH11920n
59
New       Price on Enquiry
100015 (2) Full qty
GE00066n
60
Stud
13449521 (8) Full qty
61
Washer
12601171 (4) Full qty
62
Nut
12164721 (8) Full qty
63
Rondella
11198373 (8) Full qty
64
Stud
100036 (2) Full qty
65
Engine Mounting 330 GTC (106mm…
104956 (2) Full qty
66
Nut
12164721 (2) Full qty
67
Rondella
10516873 (2) Full qty
68
Washer
100086 (2) Full qty
69
Vite fiss. tirante
10977611 (4) Full qty
70
Stud
13450621 (1) Full qty
71
Screw
100184 (4) Full qty
72
Washer
12541671 (5) Full qty
73
Stud
100039 (1) Full qty
74
Stud
102810 (1) Full qty
75
New       Price on Enquiry
10257060 (2) Full qty
CC11524n
75
New       £ 0.21
10257060 (2) Full qty
SM99909n
76
Stud
104186 (1) Full qty
77
Rondella
11198373 (4) Full qty
78
Nut
12164721 (4) Full qty
79
Dowel
100052 (2) Full qty
80
New       Price on Enquiry
10268450 (2) Full qty
CH11924n
81
Heli-coil
105510 (2) Full qty
82
Reference dowel
10839910 (2) Full qty
83
New       £ 100.00
100343 (1) Full qty
SU11795n
84
UNION
100344 (1) Full qty
85
Stud
104187 (1) Full qty
