Air Injection - Ignition

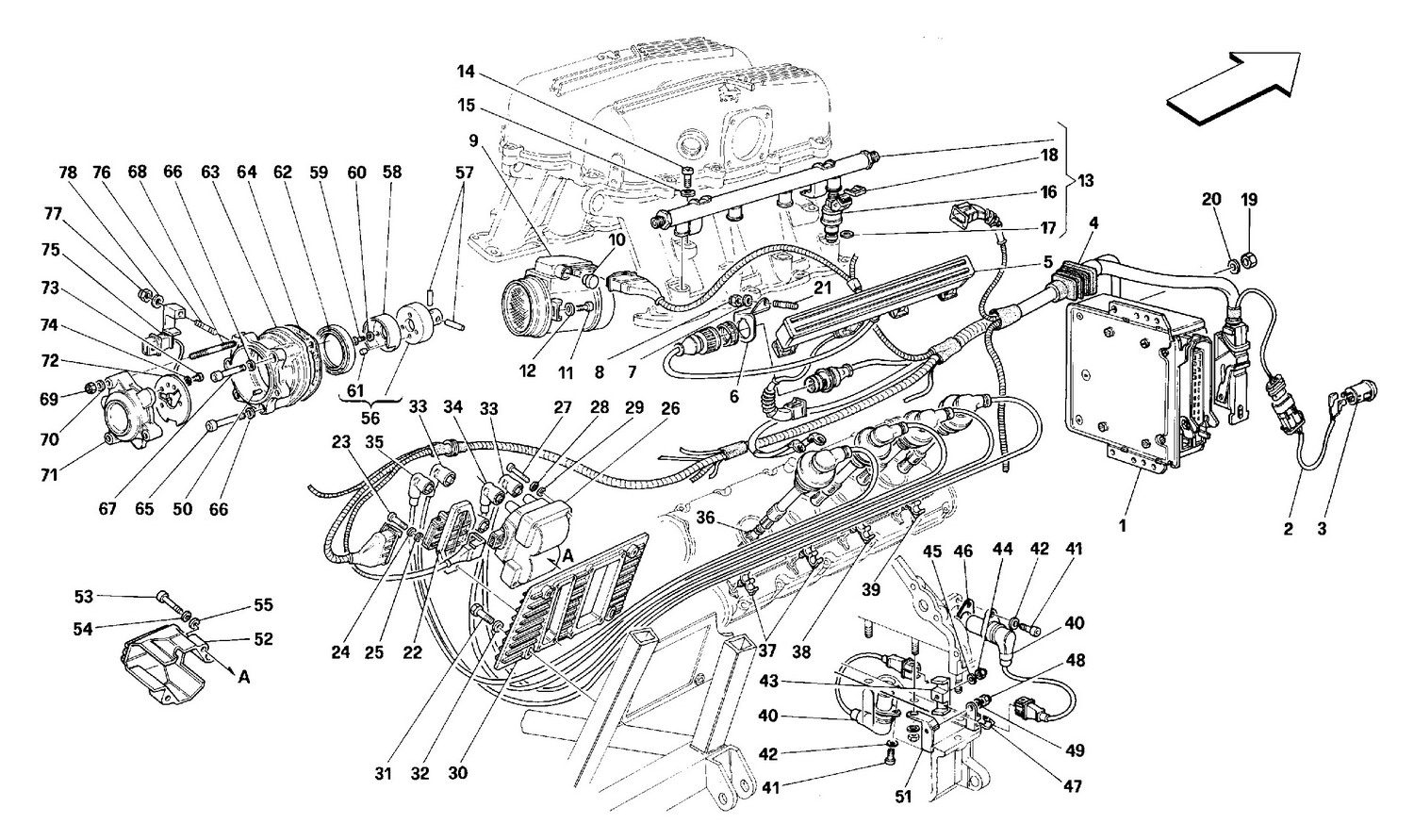

Schematic: Air Injection - Ignition
Loc
Part
Cond       Price
1
IGNITION/SUPPLY CONTROL SYSTEM…
156536 (2) Full qty
2
TESTER PUSH CABLE
146196 (1) Full qty
3
Tester push
145810 (1) Full qty
4
Bellows
139465 (2) Full qty
5
Cable and connectors container…
142842 (2) Full qty
6
L.H. bracket
145476 (1) Full qty
6
R.H. bracket
145477 (1) Full qty
7
Washer
10519401 (2) Full qty
8
Nut
12574211 (2) Full qty
9
New       £ 478.50
136374 (2) Full qty
FU14421n
10
Plug
144092 (2) Full qty
10
Plug
140190 (2) Full qty
11
Screw
10373677 (4) Full qty
12
Washer
12639978 (4) Full qty
13
Pipe with injectors
137326 (2) Full qty
14
Screw
20293306 (4) Full qty
15
Do Not Use - See GE07667n
12601374 (4) Full qty
15
New       £ 0.12
12601374 (4) Full qty
CH11905n
16
Injector
130968 (8) Full qty
17
Gasket
133902 (16) Full qty
18
Injector retaining spring
144763 (8) Full qty
19
Nut
12575411 (4) Full qty
20
Washer
14496401 (4) Full qty
21
Stud
11499921 (2) Full qty
22
New       £ 65.95
137511 (2) Full qty
EL00100n
23
Screw
13274672 (4) Full qty
24
Washer
149951 (4) Full qty
25
Washer
10519377 (4) Full qty
26
New       £ 164.45
138255 (2) Full qty
EL99483n
27
Screw
13274972 (8) Full qty
28
Washer
149951 (8) Full qty
29
Washer
10519377 (8) Full qty
30
Coil and module support
139434 (2) Full qty
31
Screw
10902724 (8) Full qty
32
Washer 1.6mm 6.4x11.95x1.6
10519424 (8) Full qty
33
CABLE (FOR SPARK PLUGS 1, 2, 7…
188914 (4) Full qty
33
Cable (for sparking plugs 1, 2…
137450 (4) Full qty
34
Cable (for sparking plugs 3, 6…
145501 (2) Full qty
34
Cable (for sparking plugs 3, 6…
137451 (2) Full qty
34
CABLE (FOR SPARKING PLUGS 3,6)…
188912 (2) Full qty
35
Cable (for sparking plugs 4, 5…
137452 (2) Full qty
35
Cable (for sparking plugs 4, 5…
145502 (2) Full qty
35
CABLE (FOR SPARKING PLUGS 4,5)…
188913 (2) Full qty
36
Spark plug Bosch X R4CS
139425 (8) Full qty
36
SPARK PLUG
154490 (8) Full qty
36
New       Price on Enquiry
156441 (8) Full qty
EL11460n
37
Spring
119402 (4) Full qty
38
Spring
119403 (2) Full qty
39
2 Wire Clip QV
121790 (2) Full qty
40
ANGULAR SPEED SENSOR
130975A (2) Full qty
40
Angular speed sensor
130975 (2) Full qty
41
Screw
14305121 (2) Full qty
42
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
43
Support
139244 (1) Full qty
44
Nut to fixing front and rear s…
15896470 (1) Full qty
45
Washer
11199279 (1) Full qty
46
New       Price on Enquiry
140621 (2) Full qty
EL99446n
47
Clip
129544 (1) Full qty
48
Nut
12574211 (1) Full qty
49
Washer
12648201 (1) Full qty
50
Pin
10331010 (1) Full qty
51
Bracket
145550 (1) Full qty
52
Protection
150631 (2) Full qty
53
Screw
13274872 (4) Full qty
54
Washer
149951 (4) Full qty
55
Washer
10519377 (4) Full qty
56
Camshaft joint
133378 (1) Full qty
57
Spring pin
132355 (2) Full qty
58
Nut
- (1) Full qty
59
Screw
10374721 (3) Full qty
60
Washer
12604070 (3) Full qty
61
Pin
10486110 (1) Full qty
62
New       £ 11.59
149917 (1) Full qty
GE00640n
63
Phase sensor support
137508 (1) Full qty
64
New       Price on Enquiry
150076 (1) Full qty
EL11428n
65
Screw
14305920 (2) Full qty
66
Washer
12604279 (3) Full qty
67
Screw
14305821 (1) Full qty
68
Stud bolt
13539821 (3) Full qty
69
Nut
12577811 (3) Full qty
70
Washer
10519377 (3) Full qty
71
Cover
137510 (1) Full qty
72
Phase sensor
146312 (1) Full qty
73
Screw
14418131 (2) Full qty
74
Washer
12600479 (2) Full qty
75
Support
144805 (1) Full qty
76
Stud bolt
11001221 (1) Full qty
77
Nut to fixing front and rear s…
15896470 (1) Full qty
78
Washer
11199279 (1) Full qty
