Weber Carburettor (40 Dcz-6)

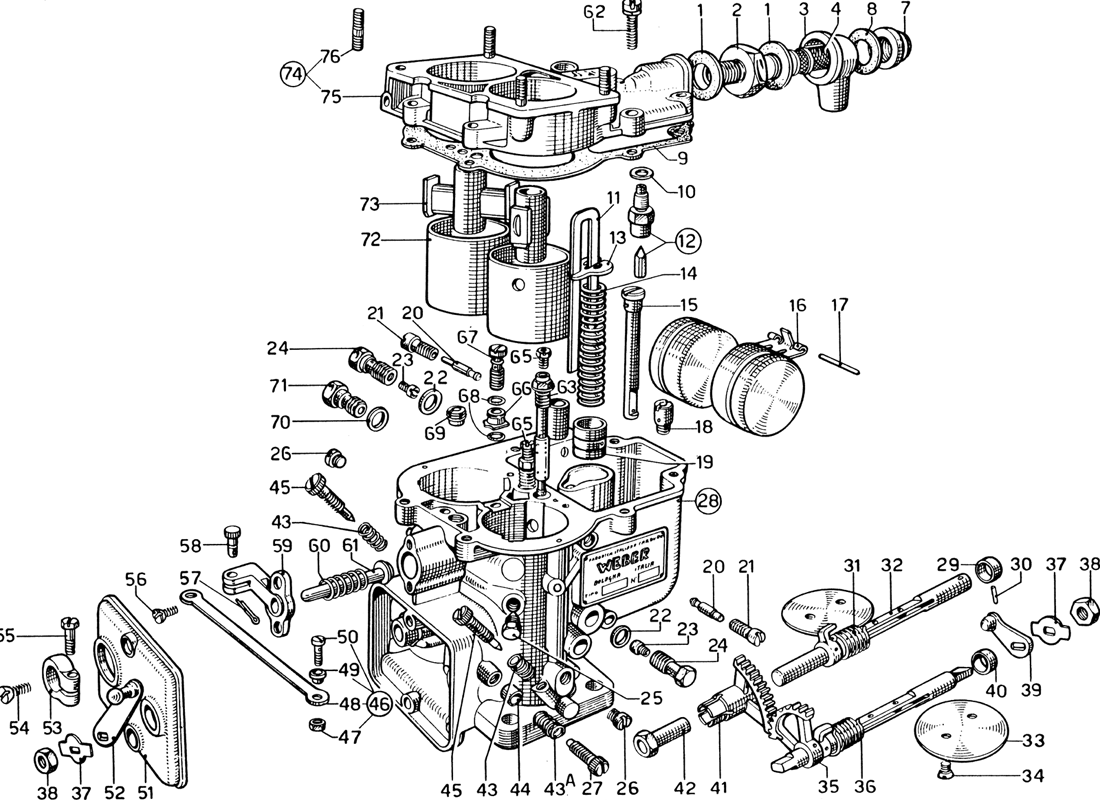

Schematic: Weber Carburettor (40 Dcz-6)
Schematic: Weber Carburettor (40 Dcz-6)
Loc
Part
Cond       Price
1
GASKET OR SEAL
235 (2) Full qty
1
Carb Banjo Fibre Washer Big
235 (2) Full qty
2
Fuel Rail To Carb.Banjo&Nut
New       £ 103.79
TS597+TS598 (1) Full qty
FU14125n
2
Fuel Rail To Carb.Banjo&Nut (Brass)
New       £ 103.79
TS597+TS598 (1) Full qty
FU14135n
3
FILTER HOUSING
F23 (1) Full qty
4
STRAINER FILTER
241A (1) Full qty
7
NUT
TS598 (1) Full qty
8
GASKET
236 (1) Full qty
8
Carb Banjo Fibre Washer Small
236 (1) Full qty
9
GASKET OR SEAL
2436 (1) Full qty
10
GASKET OR SEAL
1975 (1) Full qty
11
ASTA PUMP CONTROL
5343 (1) Full qty
11
Carb Needle Valve 2.00
5343 (1) Full qty
12
NEEDLE VALVE COMPLETE
1660A (1) Full qty
13
PLATE
2903 (1) Full qty
14
SPRING
4456 (1) Full qty
15
LOG START
1381A (1) Full qty
16
FLOATING OUT
4108A (1) Full qty
17
PIVOT FASTENING
1829 (1) Full qty
18
SUCTION VALVE
2948A (1) Full qty
19
PISTON PUMP COMPLETE
2866A (1) Full qty
20
IDLE JET
TS865 (2) Full qty
21
PORT IDLE JET
TS864 (2) Full qty
22
GASKET OR SEAL
2546 (2) Full qty
22
Main Jet
New       £ 3.51
2546 (2) Full qty
FU14097n
23
JET HOME
TS510 (2) Full qty
24
JET HOME PORT
2545 (2) Full qty
25
SCREW
TS674 (2) Full qty
26
SCREW
TS625 (2) Full qty
27
SCREW
TS548 (2) Full qty
27
Carb Mixture Screw
TS548 (2) Full qty
28
Nut
- (1) Full qty
29
BUSH
3565 (1) Full qty
30
PIN
2999 (1) Full qty
31
SPRING
3351 (1) Full qty
32
POST LEFT OUT
TS539A (1) Full qty
33
VALVO A FARFA
TS555 (2) Full qty
34
SCREW
767 (4) Full qty
34
Butterfly Screw
New       £ 1.16
767 (4) Full qty
FU00023n
35
RIGHT FULL POST
TS536A (1) Full qty
36
MOLLS RETURN TO POST RIGHT
2911 (1) Full qty
37
WASHER
2464 (2) Full qty
38
NUT
865 (2) Full qty
39
LEVER
TS541A (1) Full qty
40
BUSH
3564 (1) Full qty
41
DENTATO RECORD INDUSTRY.
TS500 (1) Full qty
42
BUSH
1350 (1) Full qty
43
SPRING
38 (2) Full qty
44
SPACER TO SCREW
TS546 (2) Full qty
45
SCREW
864 (2) Full qty
46
LEVER
3554A (1) Full qty
47
_ GIVEN FOR VITE FISS. FILO
364 (1) Full qty
48
Carburettor Choke Arm [DCL]
TS511 (1) Full qty
48
Carburettor Choke Arm [DCL]
TS511 (1) Full qty
49
_BOCCOLA FOR LIVES
375 (1) Full qty
50
_VITE MOUNTING THREAD
374 (1) Full qty
51
COVER
6885 (1) Full qty
52
Carburettor Throttle Arm [DCL …
TS1073A (1) Full qty
52
Carburettor Throttle Arm [DCL …
TS1073A (1) Full qty
53
CLAMP FIXING THE FIELD
4837 (1) Full qty
53
Carburettor Brass Gear Clamp
4837 (1) Full qty
54
SCREW
2288 (2) Full qty
55
SCREW
A1408 (1) Full qty
56
SCREW
336 (2) Full qty
57
SEAL
133 (1) Full qty
58
PIVOT
1585 (1) Full qty
59
COVER
TS501 (1) Full qty
60
SPRING
939 (1) Full qty
60
Carburettor Accelerator Pump S…
939 (1) Full qty
61
START VALVE
936 (1) Full qty
62
SCREW
1187 (6) Full qty
63
TUBE EMULSIFIER
TS534A (2) Full qty
63
F8 Emulsion Tube
New       £ 67.52
TS534A (2) Full qty
FU14285n
65
JET AIR BRAKE
1311 (2) Full qty
66
JET PUMP
TS507 (1) Full qty
66
Carb Pump Valve
TS507 (1) Full qty
67
VALVOLA MANDATORY POMP
TS991A (1) Full qty
68
GASKET OR SEAL
1520 (2) Full qty
69
AIR JET START
512 (1) Full qty
70
GASKET OR SEAL
1339 (1) Full qty
71
JET START
1338 (1) Full qty
72
DISTRIBUTION
TS502 (2) Full qty
73
Aux. Venturui 2.5 DCZ
Used       £ 107.35
5571a (2) Full qty
FU11526u
73
Aux.Venturi 3.5 (40DCL6/40DCZ6 )
New       £ 107.09
5571a (2) Full qty
FU14301n
74
COVER
6884A (1) Full qty
75
COVER
6883A (1) Full qty
76
M5 Carb Top Stud 24mm
G228 (4) Full qty
76
M5 Carb Top Stud 24mm
New       £ 6.14
G228 (4) Full qty
FU14261n
