Clutch And Controls

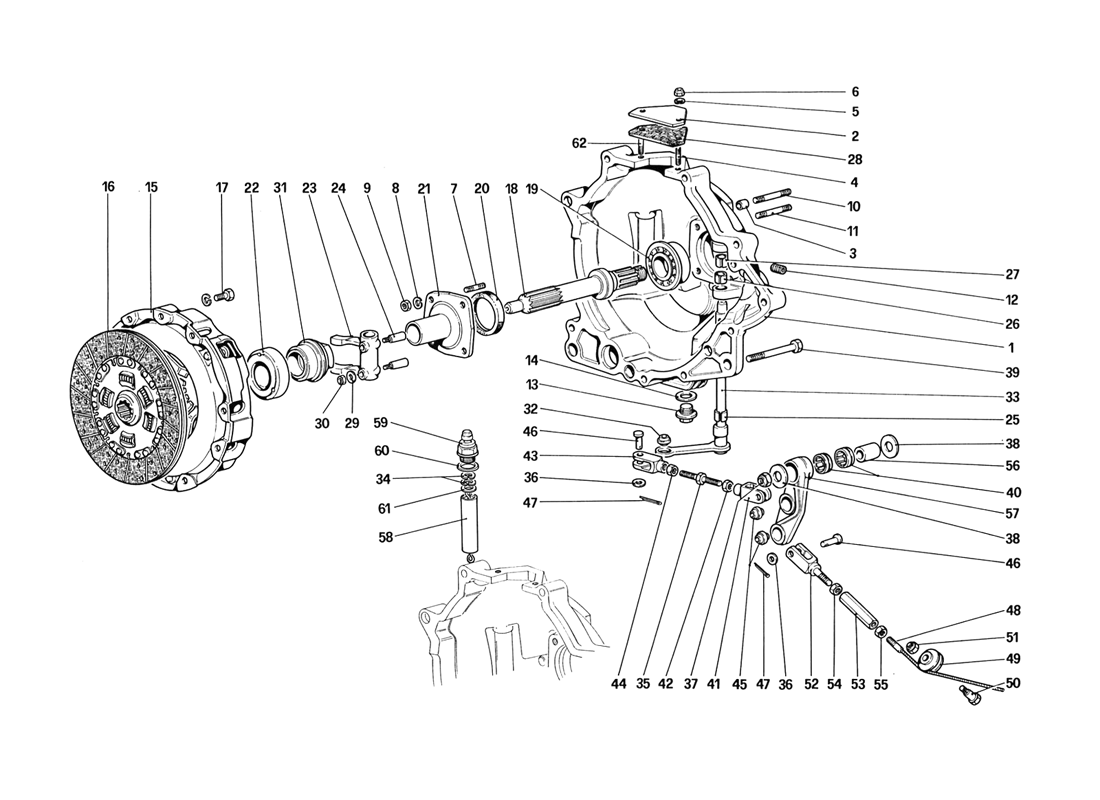

Schematic: Clutch And Controls
Loc
Part
Cond       Price
1
Clutch housing
126025 (1) Full qty
1
Clutch housing, complete
127752 (1) Full qty
2
Inspection centering dowel
109404 (1) Full qty
3
Dowel
102704 (2) Full qty
4
Stud bolt
11000921 (1) Full qty
5
Washer
12601171 (2) Full qty
6
Nut
15896411 (2) Full qty
7
Stud
13516521 (4) Full qty
8
Washer
106852 (4) Full qty
9
New       Price on Enquiry
16102311 (4) Full qty
BS00703n
10
New       £ 12.07
13517621 (2) Full qty
GB10575n
11
Stud
13517521 (8) Full qty
12
Plug
14326150 (1) Full qty
13
Oil drain plug
14326540 (1) Full qty
14
Gasket
10279560 (1) Full qty
15
Clutch (not for spare)
134997 (1) Full qty
15
Clutch 9.5in
121478 (1) Full qty
15
Clutch Pressure Plate V8
121562 (1) Full qty
16
Clutch disc
120482 (1) Full qty
16
Clutch disc
134996 (1) Full qty
17
Bolt
13825821 (6) Full qty
18
Clutch shaft
133398 (1) Full qty
19
New       Price on Enquiry
103042 (1) Full qty
GB10260n
20
Off retainer
110314 (1) Full qty
21
Clutch Flange
105136 (1) Full qty
22
New       Price on Enquiry
100849 (1) Full qty
CL11616n
23
Clutch control lever
108428 (1) Full qty
24
Pin
108429 (2) Full qty
25
BUSHING
103226 (1) Full qty
26
Bush
103227 (1) Full qty
27
SELF-LUBRICATING BUSHING
106500 (1) Full qty
28
Gasket for inspection cover
109405 (1) Full qty
29
Washer
108430 (2) Full qty
30
Nut
12574121 (2) Full qty
31
Bush for bearing
116326 (1) Full qty
32
Bail joint
100860 (1) Full qty
33
Lever and control shaft
116327 (1) Full qty
34
Washer
12604571 (2) Full qty
35
Tie rod
116329 (1) Full qty
36
Washer
12639701 (3) Full qty
37
Selflocking nut
16105121 (1) Full qty
38
Spacer for lever
108939 (2) Full qty
39
Bolt
15541121 (1) Full qty
40
Clutch Lever Roller Bearing
103223 (2) Full qty
41
Fork
100855 (1) Full qty
42
New       £ 3.84
100862 (1) Full qty
CL12098n
43
Forcella
103238 (1) Full qty
44
New       £ 2.15
100861 (2) Full qty
CL12097n
45
Bail joint
100860 (2) Full qty
46
Clevis Pin
103218 (3) Full qty
47
Split pin
10734201 (3) Full qty
48
Clutch Cable 308/328
106745 (1) Full qty
49
Carrucola
105665 (1) Full qty
50
Screw
10902621 (1) Full qty
51
Nut
12575411 (1) Full qty
52
Fork
138523 (1) Full qty
53
Adjuster
10091011 (1) Full qty
54
Nut
10725911 (1) Full qty
55
Locknut, left thread
10727311 (1) Full qty
56
Bushing for lever
107437 (1) Full qty
57
Clutch control lever
116472 (1) Full qty
58
Breather pipe
126044 (1) Full qty
59
Plug
126046 (1) Full qty
60
New       £ 0.30
10263460 (1) Full qty
CC11530n
61
Washer
12625201 (1) Full qty
62
Long stud
11001121 (1) Full qty
