Electric Generating System (Engine With 2 Individual Belts)

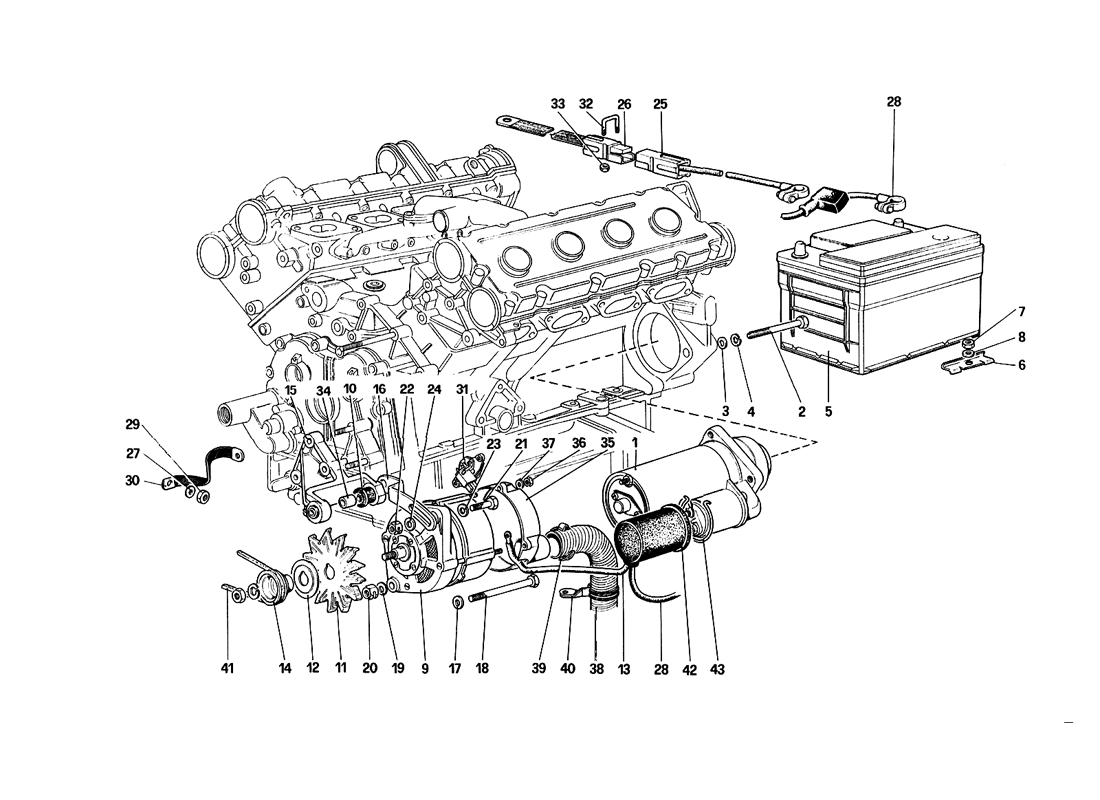

Schematic: Electric Generating System (Engine With 2 Individual Belts)
Loc
Part
Cond       Price
1
Starter motor
106966 (1) Full qty
1
New       Price on Enquiry
120967 (1) Full qty
EL99240n
2
Screw
16045021 (3) Full qty
3
Washer
11198071 (3) Full qty
4
Flat washer
10519621 (3) Full qty
5
1 2 V - 66 Ah - 300 A battery
118060 (1) Full qty
6
New       Price on Enquiry
106525 (1) Full qty
EL99438n
7
Nut
16100811 (1) Full qty
8
Washer
106852 (1) Full qty
9
Alternator BOSCH 85A
121761 (1) Full qty
10
Elastic bush
117969 (2) Full qty
11
Fan
118802 (1) Full qty
12
Washer
114305 (1) Full qty
13
Generator connecting cables
121188 (1) Full qty
14
Pulley
123708 (1) Full qty
14
Pulley
118803 (1) Full qty
15
Support for alternator
117924 (1) Full qty
16
Plate for regulation
117937 (1) Full qty
17
Washer
13550421 (1) Full qty
18
Bolt
15972221 (1) Full qty
18
Bolt
15972921 (1) Full qty
19
Washer
12601471 (1) Full qty
20
Nut
117702 (1) Full qty
21
Screw
11343821 (1) Full qty
22
Nut
117702 (1) Full qty
23
Washer
13550421 (1) Full qty
24
Washer
105391 (1) Full qty
25
CAVO PULP BATT. (INTER. MM. 36…
115660 (1) Full qty
26
Copper braid from battery term…
115667 (1) Full qty
27
Washer
10615671 (1) Full qty
28
Cable from battery to starter
120082 (1) Full qty
29
Nut
16100821 (1) Full qty
30
Earthing plait for engine
115668 (1) Full qty
31
Voltage regulator
121840 (1) Full qty
32
Pos. cable fastening U bolt
116591 (1) Full qty
33
Nut securing batt. disconn. sw…
12574011 (2) Full qty
34
Bush
124678 (1) Full qty
35
Air conveyor
121837 (1) Full qty
36
Nut
15896421 (1) Full qty
37
Washer
12601171 (4) Full qty
38
Pipe
121190 (1) Full qty
39
Clamp
102958 (1) Full qty
40
Clamp
121839 (1) Full qty
41
Alternatr belt
123709 (1) Full qty
42
New       £ 84.55
113990 (1) Full qty
EL99046n
43
Clamp
14560287 (1) Full qty
