Electric Generating System (Engine With Single Belt)

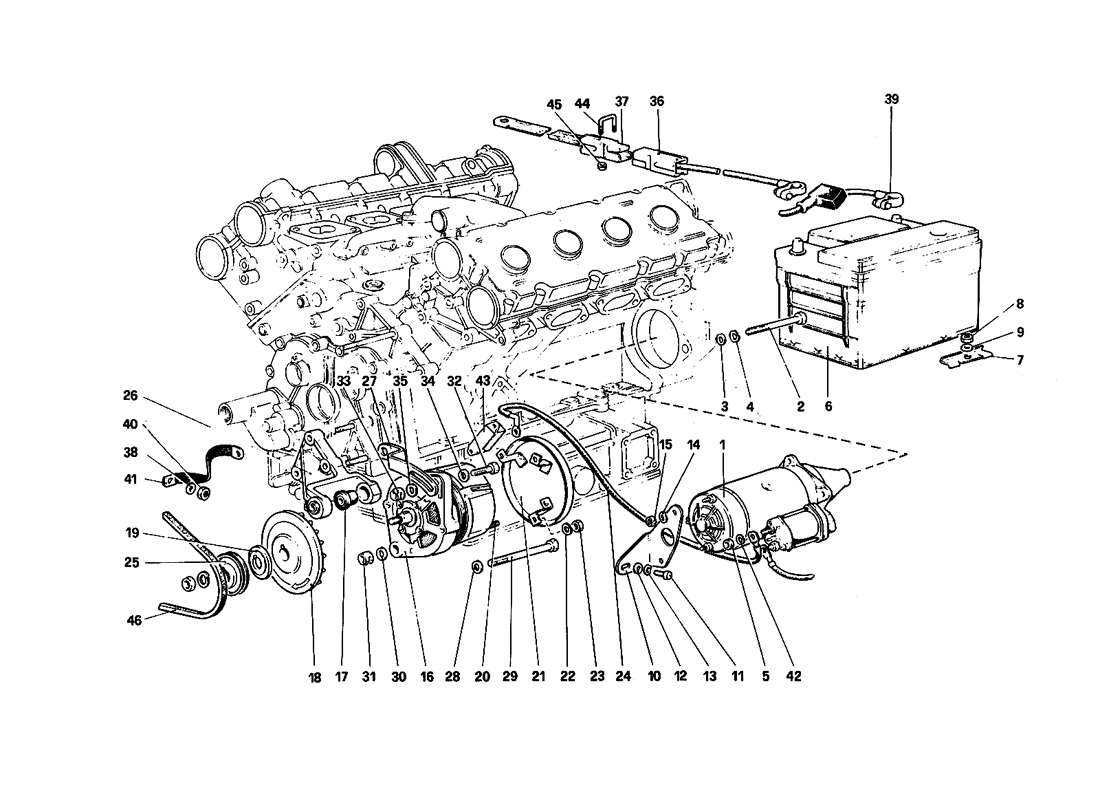

Schematic: Electric Generating System (Engine With Single Belt)
Loc
Part
Cond       Price
1
Starter motor
106966 (1) Full qty
1
New       Price on Enquiry
120967 (1) Full qty
EL99240n
2
Fixing bolt
16045121 (3) Full qty
3
Washer
11198071 (3) Full qty
4
Flat washer
10519621 (3) Full qty
5
Nut
16100811 (1) Full qty
6
1 2 V - 66 Ah - 300 A battery
118060 (1) Full qty
7
New       Price on Enquiry
106525 (1) Full qty
EL99438n
8
Nut
16100811 (1) Full qty
9
Washer
106852 (1) Full qty
10
Support bracket
107129 (1) Full qty
11
Bolt
15970721 (1) Full qty
12
Washer
105391 (1) Full qty
13
Washer
106853 (1) Full qty
14
Washer
106850 (2) Full qty
15
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
16
New       £ 123.75
117967 (1) Full qty
EL11694n
17
Elastic bush
117969 (2) Full qty
18
Fan
117968 (1) Full qty
19
Washer
114305 (1) Full qty
20
Stud
11499921 (3) Full qty
21
Protection plate
117978 (1) Full qty
22
Washer
106850 (3) Full qty
23
Nut
15896221 (3) Full qty
24
Generator connecting cables
118078 (1) Full qty
25
Pulley
117938 (1) Full qty
26
Support for alternator
117924 (1) Full qty
27
Plate for regulation
117937 (1) Full qty
28
Washer
13550421 (1) Full qty
29
Bolt
15972221 (1) Full qty
30
Washer
12601471 (1) Full qty
31
Nut
117702 (1) Full qty
32
Screw
11343821 (1) Full qty
33
Nut
117702 (1) Full qty
34
Washer
13550421 (1) Full qty
35
Washer
105391 (1) Full qty
36
CAVO PULP BATT. (INTER. MM. 36…
115660 (1) Full qty
37
Copper braid from battery term…
115667 (1) Full qty
38
Washer
10615671 (1) Full qty
39
Cable from battery to starter
120082 (1) Full qty
40
Nut
16100821 (1) Full qty
41
Earthing plait for engine
115668 (1) Full qty
42
Washer
10516670 (1) Full qty
43
Voltage regulator
107396 (1) Full qty
44
Pos. cable fastening U bolt
116591 (1) Full qty
45
Nut securing batt. disconn. sw…
12574011 (1) Full qty
46
New       Price on Enquiry
107971 (1) Full qty
GE00570n
