Rear Suspension - Wishbones

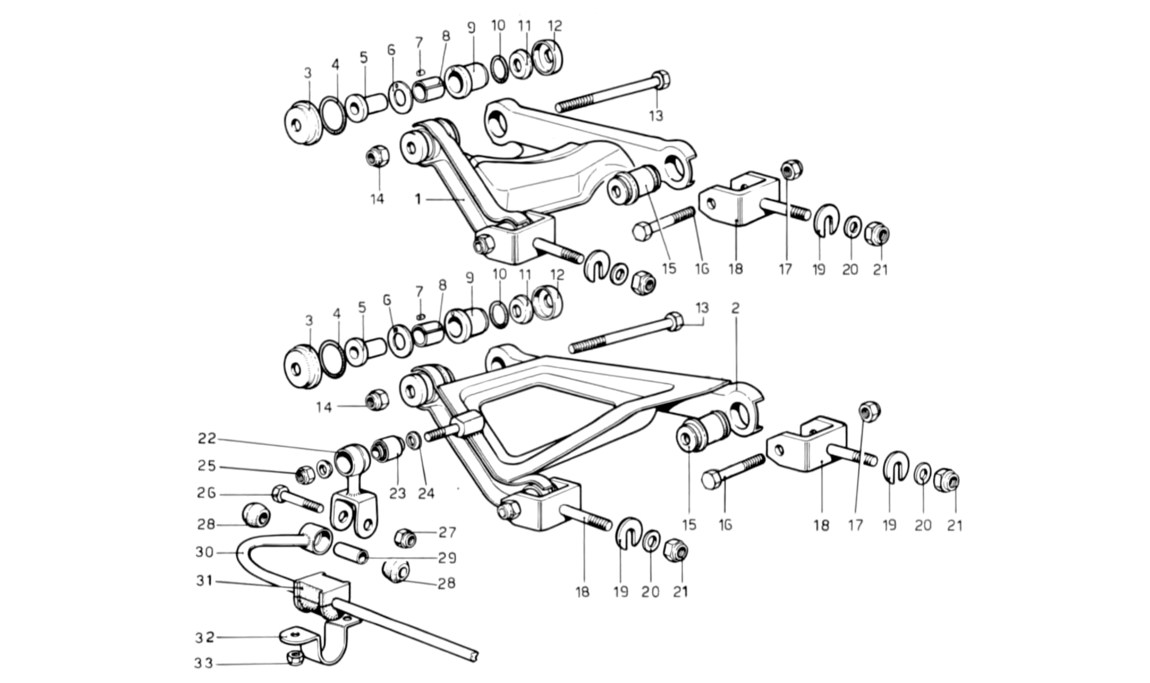

Schematic: Rear Suspension - Wishbones
Schematic: Rear Suspension - Wishbones
Loc
Part
Cond       Price
1
Upper lever, right
104423 (1) Full qty
1
Upper lever, left
104422 (1) Full qty
2
BUSH ASSEMBLY LOWER AND UPPER
601409 (8) Full qty
2
ASSEMBLY LEVER LOWER RIGHT
602102 (1) Full qty
2
LEVER
104428 (1) Full qty
2
ASSEMBLY LEVER LOWER LEFT
601326 (1) Full qty
2
LEVER
104429 (1) Full qty
3
Suspension Bushing Dust Cover
New       Price on Enquiry
101014 (8) Full qty
RS00346n
3
Rear Susp Cup Large
New       £ 5.23
101014 (8) Full qty
RS00365n
4
O Ring Seal OR3150
New       £ 1.10
101044 (8) Full qty
GE00070n
4
Rear Suspension Cup O Ring Large
New       £ 1.52
101044 (8) Full qty
RS00289n
5
BUSH
602109 (8) Full qty
5
Distanzialfl
109905 (8) Full qty
6
Suspension Washer
New       Price on Enquiry
101009 (8) Full qty
FS10080n
6
Rear Suspension Thrust Washer 275
New       £ 9.02
101009 (8) Full qty
RS00291n
7
Suspension Dowel Pin
New       Price on Enquiry
100796 (8) Full qty
FS10076n
8
Wishbone Outer Bush 308
New       £ 5.74
100787 (8) Full qty
RS10437n
9
Rear Suspension Bush
600739 (8) Full qty
10
O Ring 3.5x25 Water Outlet (330)
New       £ 1.52
101043 (8) Full qty
GE00025n
10
O Ring Seal OR4106
New       Price on Enquiry
101043 (8) Full qty
GE00068n
10
Rear Suspension Cup O Ring Small
New       £ 1.05
101043 (8) Full qty
RS00287n
11
Suspension Spacing Washer
101016 (8) Full qty
12
Rear Susp Cup Small
New       £ 6.00
101011 (8) Full qty
RS00285n
12
Suspension Bushing Dust Cover
New       Price on Enquiry
101011 (8) Full qty
RS00344n
13
Hub Bolt 246
New       Price on Enquiry
101052 (4) Full qty
BS00492n
14
NUT
95900617 (4) Full qty
15
Bushing
New       Price on Enquiry
163038 (8) Full qty
FS10170n
15
Rear A-Arm Bushing Complete 308/328 (1 bushing)
New       Price on Enquiry
163038 (8) Full qty
RS00292n
15
Rear A-Arm Bushing Complete 246
New       Price on Enquiry
163038 (8) Full qty
RS00322n
16
Inner Wishbone Bolt 246
New       £ 3.36
15541221 (8) Full qty
FS10434n
17
NUT
95900617 (8) Full qty
18
FORK
601720 (8) Full qty
19
Suspension Shim 1mm
New       £ 1.69
101039 (8) Full qty
FS00161n
19
Suspension Shim 1mm
Used       £ 1.64
101039 (8) Full qty
FS00161u
20
Front Wishbone Mounting U Bolt…
101041 (8) Full qty
21
Wishbone Mounting U Bolt Nut
New       £ 1.05
95900611 (8) Full qty
FS10439n
22
Anti-Roll Bar Drop Link 250
New       £ 292.53
104420 (2) Full qty
FS00018n
22
Anti-Roll Bar Drop Link 250
Used       £ 258.50
104420 (2) Full qty
FS00018u
23
Anti-Roll Bar Drop Link Bush 250
New       £ 15.49
100773 (2) Full qty
FS10045n
24
Dlstanziaie
104421 (4) Full qty
25
Spring Cup/Drop Link Nut M12x1.5
New       £ 1.05
95900610 (2) Full qty
FS10433n
26
SCREW
105962 (2) Full qty
27
NUT
95900617 (2) Full qty
28
Anti-Roll Bar Rubber
New       £ 8.29
100984 (4) Full qty
FS00114n
29
Do Not Use - See FS10057n
(2) Full qty
29
Anti-Roll Bar Inner Bush
New       £ 32.95
100985 (2) Full qty
FS10057n
30
ANTI - ROLL BAR
601725 (1) Full qty
31
Sway Bar "D" Mount Bushing Dino
New       Price on Enquiry
104445 (2) Full qty
RS00300n
32
Anti-Roll Bar Bracket
New       £ 17.59
104417 (2) Full qty
FS10059n
32
Sway Bar Mount Bracket
New       Price on Enquiry
104417 (2) Full qty
FS10138n
33
Selflocking nut
12575621 (4) Full qty
33
NUT
104114 (4) Full qty
