Electric Generating System

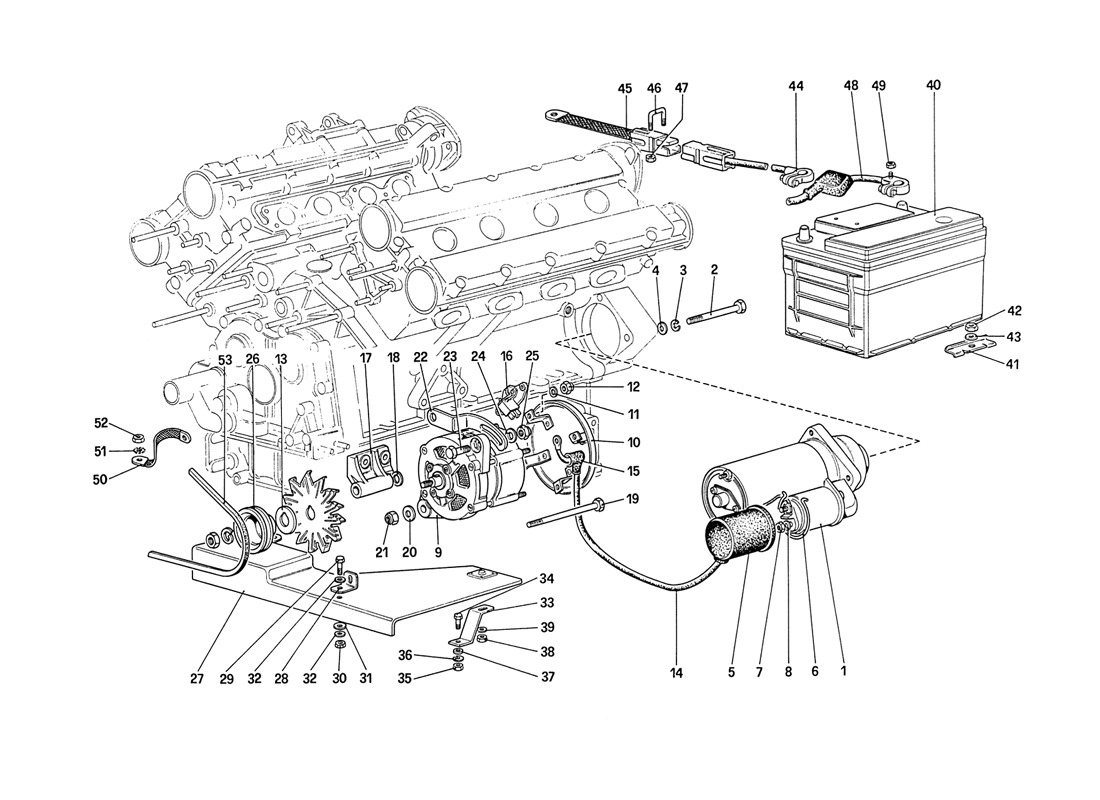

Schematic: Electric Generating System
Loc
Part
Cond       Price
1
New       Price on Enquiry
120967 (1) Full qty
EL99240n
2
Fixing bolt
16045121 (3) Full qty
3
Flat washer
10519621 (3) Full qty
4
Washer
11198071 (3) Full qty
5
New       £ 84.55
113990 (1) Full qty
EL99046n
6
Clamp
14560287 (1) Full qty
7
Nut
16100811 (1) Full qty
8
Washer
10516670 (1) Full qty
9
Generator 70 A
130619 (1) Full qty
10
Paratia di protezione
107221 (1) Full qty
11
Spring ring
11195471 (4) Full qty
12
Nut
15896411 (4) Full qty
13
Rondella di spallamento
106543 (1) Full qty
14
Cavi collegamento alternatore
106989 (1) Full qty
15
New       Price on Enquiry
107003 (1) Full qty
EL99222n
16
Voltage regulator
121840 (1) Full qty
17
Supporto inferiore
105158 (1) Full qty
18
Washer
106426 (1) Full qty
19
Bullone
105390 (1) Full qty
20
Conic washer
11198671 (1) Full qty
21
Nut
16109221 (1) Full qty
22
Staffa regolazione
105940 (1) Full qty
23
Vite
15970931 (1) Full qty
24
Washer
105391 (1) Full qty
25
Nut
13598021 (1) Full qty
26
PULLEY
129329 (1) Full qty
27
SHIELD PANEL
120107 (1) Full qty
28
BRACKET
120108 (1) Full qty
29
New       £ 0.12
10902321 (1) Full qty
WW10106n
30
Nut
New       Price on Enquiry
15896211 (1) Full qty
CH11996n
31
Washer
106850 (1) Full qty
32
WASHER
12643724 (2) Full qty
33
Bracket
118619 (1) Full qty
34
Screw
16043521 (1) Full qty
35
Nut
16100811 (1) Full qty
36
Washer
106852 (1) Full qty
37
Washer
10519624 (1) Full qty
38
Nut
New       Price on Enquiry
15896211 (1) Full qty
CH11996n
39
Washer
106850 (1) Full qty
40
1 2 V - 66 Ah - 300 A battery
118060 (1) Full qty
41
New       Price on Enquiry
106525 (1) Full qty
EL99438n
42
Nut
16100811 (1) Full qty
43
Washer
106852 (1) Full qty
44
CAVO PULP BATT. (INTER. MM. 36…
115660 (1) Full qty
45
Copper braid from battery term…
115667 (1) Full qty
46
Pos. cable fastening U bolt
116591 (1) Full qty
47
Nut securing batt. disconn. sw…
12574011 (2) Full qty
48
Cable from battery to starter …
61804100 (1) Full qty
49
Nut
16104411 (1) Full qty
50
Earthing plait for engine
115668 (1) Full qty
51
Washer
10615671 (1) Full qty
52
Nut
16100821 (1) Full qty
53
WATER PUMP AND ALTERNATOR BELT…
125557 (1) Full qty
