360 Modena

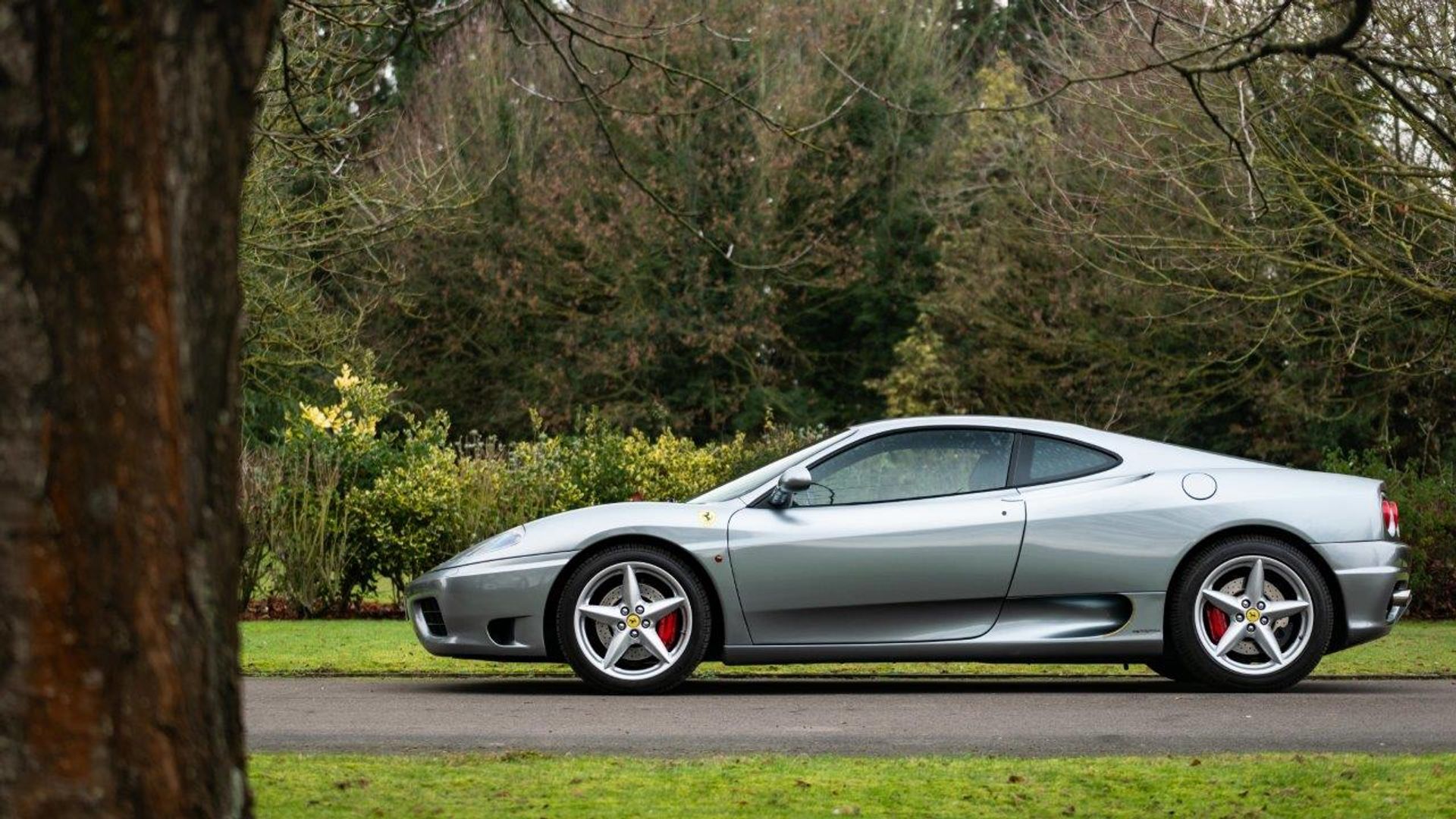

The 360 Modena was the first road-going Ferrari constructed entirely in aluminium including the monocoque chassis, bodyshell and suspension wishbones allowing weight-saving benefits and increased performance of previous mid-engine V8 cars. Launched at the Geneva Motor Show in 1999, the 360 Modena was a radical departure for Ferrari even down to the removal of the previously-iconic central egg crate “radiator” grille.

Replacing them are twin radiator inlet grilles, one either side, allowing airflow to pass under the raised centre section to feed via the flat bottom to the twin rear diffuser section, increasing downforce as the car’s speed increases. However, some retro detail was included, for example the engine compartment intakes in the rear wings that hinted of the Dino, plus the traditional paired rear light design.

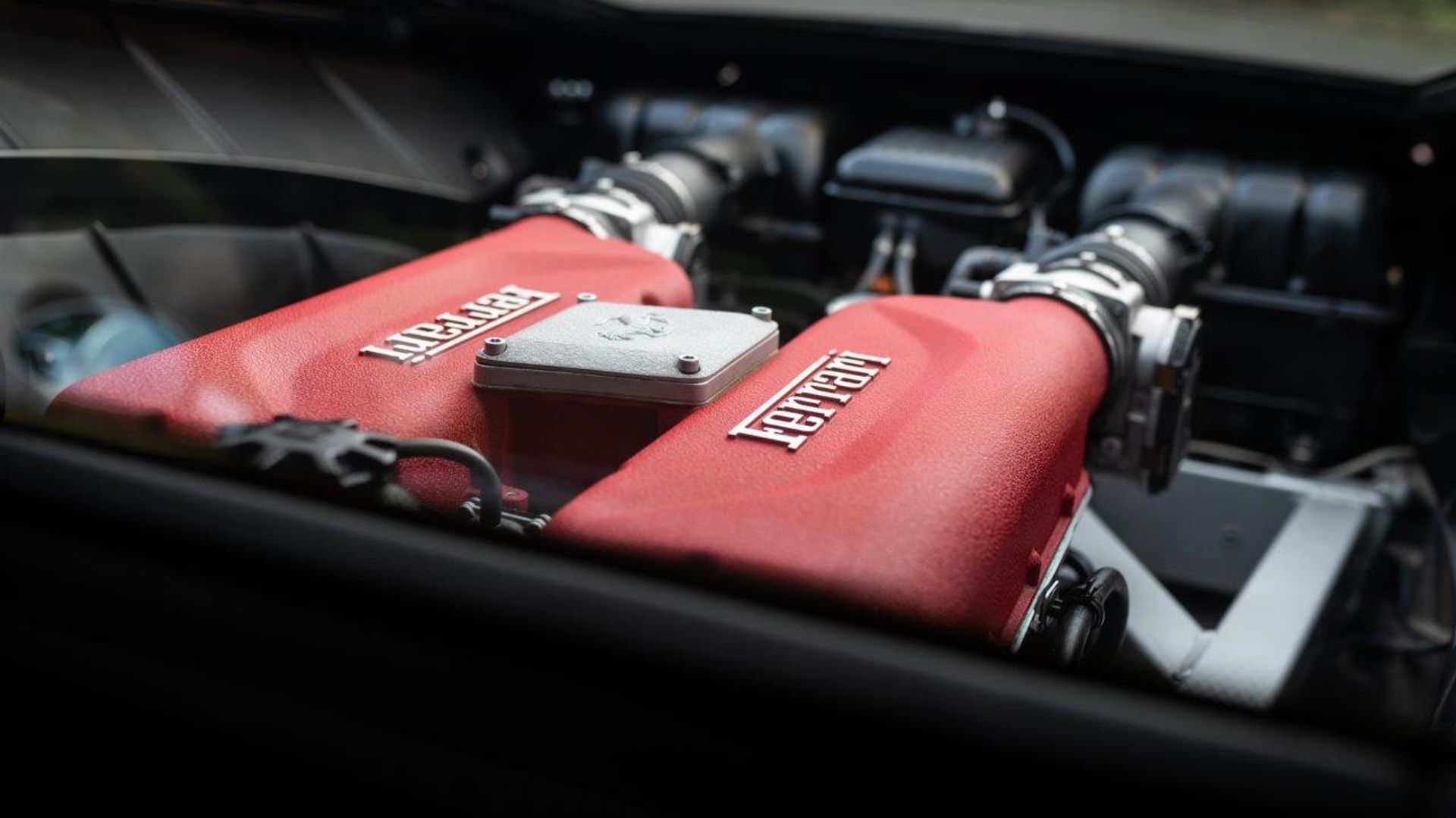

The engine is a development of that designed for the F355 with a small increase in cubic capacity to 3.6 litres, hence the 360 model name. A longitudinally mid-mounted 90 degree V8 engine had an actual cubic capacity of 3586cc, with a bore and stroke of 85mm x 79mm, five valves per cylinder, twin overhead camshafts per bank, and dry sump lubrication.

As you will see from this site, GTO Parts offer an extensive range of specialist components for the 360 Modena as well as the 360 Spider and Challenge Stradale. In both our LA and UK workshops, we offer a Fixed Price Servicing Program for the 360 offering a simple route to servicing with all work undertaken by our factory-trained engineers.

Engine

Chassis and Suspension

Dimensions and Weight

Performance
