Starter Battery

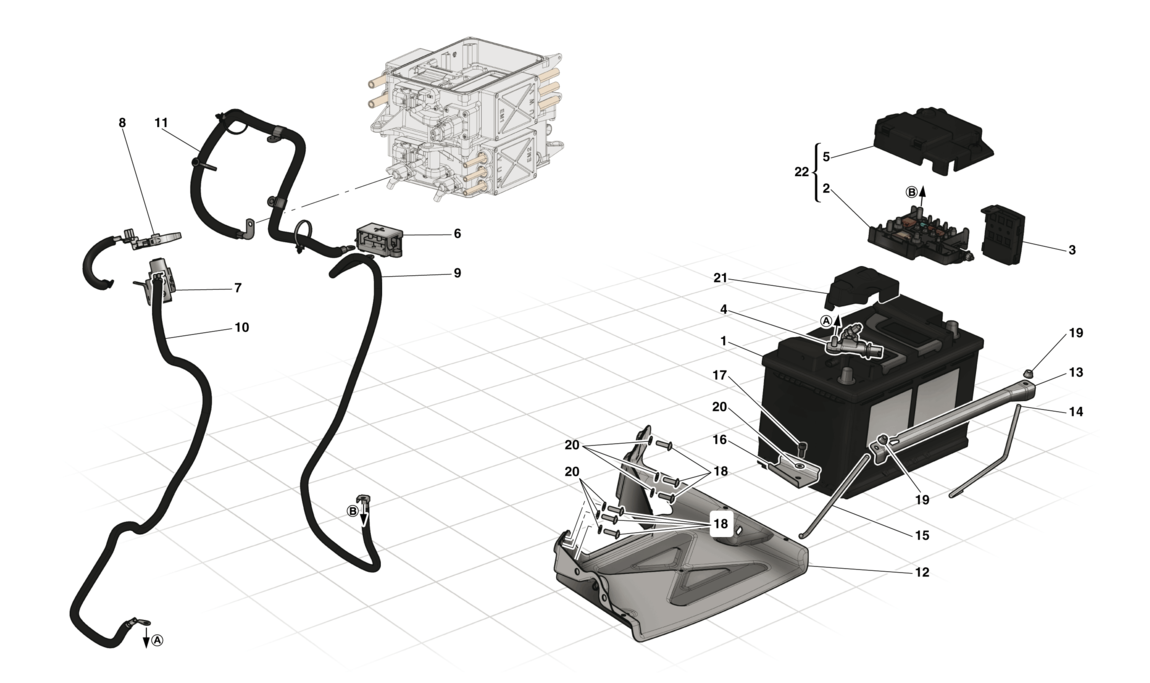

Schematic: Starter Battery
Loc
Part
Cond       Price
1
12V BATTERY
283032 (1) Full qty
2
BATTERY ECU -After depletion, …
292621 (1) Full qty
3
CFO ECU
302147 (1) Full qty
4
BATTERY SENSOR
274661 (1) Full qty
5
COVER -After depletion, order …
251161 (1) Full qty
6
TERMINAL BLOCK
170114 (1) Full qty
7
COMPL. REMOTE NEGATIVE POLE
302277 (1) Full qty
8
BATTERY MASTER SWITCH AND GROU…
301416 (1) Full qty
9
BATTERY CABLE
299891 (1) Full qty
10
GROUND CABLES FROM SENSOR TO F…
292784 (1) Full qty
11
CABLE FROM INVERTER TO BATTERY…
299892 (1) Full qty
12
BATTERY CARRIER TRAY
85597700 (1) Full qty
13
UPPER BATTERY RETAINER BRACKET…
85598000 (1) Full qty
14
REAR BATTERY FASTENER TIE-ROD
85597900 (1) Full qty
15
FRONT BATTERY FASTENER TIE-ROD…
85597800 (1) Full qty
16
LOWER BATTERY RETAINER BRACKET…
85598100 (1) Full qty
16
LOWER BATTERY RETAINER BRACKET…
86204900 (1) Full qty
17
SCREW -No longer supplied- -Re…
14305725 (1) Full qty
17
Screw
14305224 (1) Full qty
18
SCREW -M6 X 20-
85629300 (6) Full qty
19
NUT
14058419 (2) Full qty
20
WASHER
13550224 (7) Full qty
21
BATTERY SENSOR PROTECTION
307021 (1) Full qty
22
COMPL. BATTERY ECU
292456 (1) Full qty
