Brake System

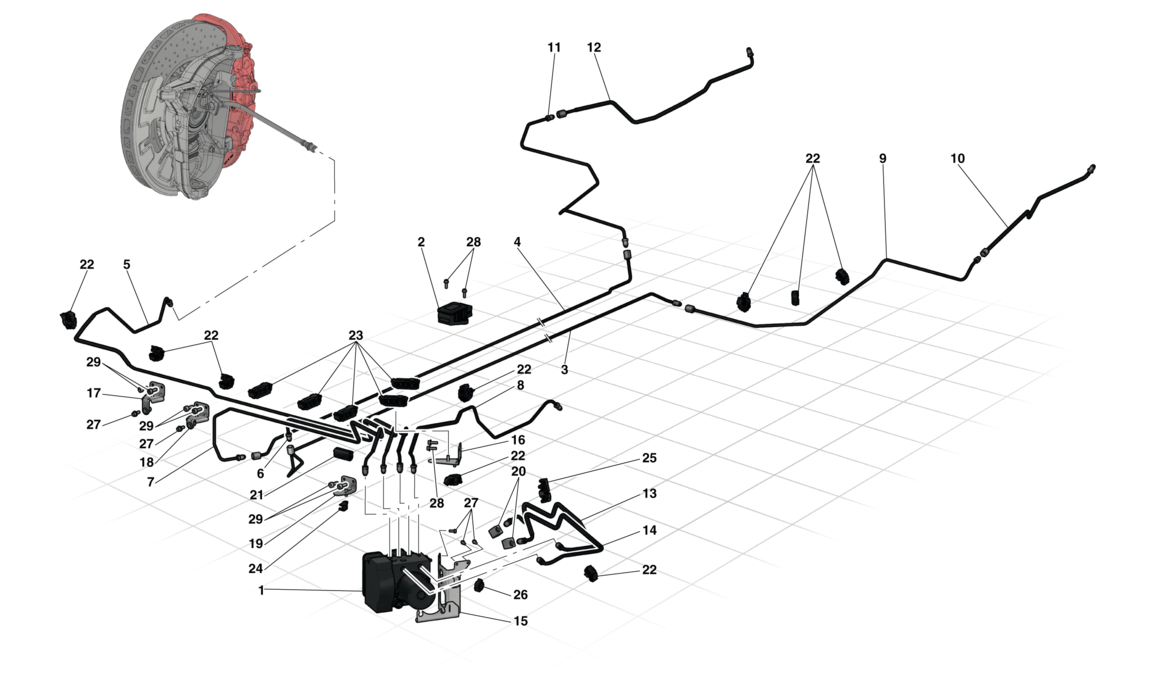

Schematic: Brake System
Loc
Part
Cond       Price
1
HYDRAULIC UNIT
290302 (1) Full qty
2
YAW SENSOR
206070 (1) Full qty
3
UNDERBODY BRAKE PIPE TO LH REA…
292639 (1) Full qty
4
UNDERBODY BRAKE PIPE TO RH REA…
292737 (1) Full qty
5
BRAKE PIPE FROM RH FRONT WHEEL…
295854 (1) Full qty
6
BRAKE PIPE FROM LH REAR WHEEL …
295853 (1) Full qty
7
BRAKE PIPE FROM RH REAR WHEEL …
295849 (1) Full qty
8
BRAKE PIPE FROM LH FRONT WHEEL…
295860 (1) Full qty
9
LH REAR BRAKE PIPE FROM UNDERB…
298238 (1) Full qty
10
LH REAR BRAKE PIPE ON REAR TRE…
304392 (1) Full qty
11
RH REAR BRAKE PIPE FROM UNDERB…
304321 (1) Full qty
12
RH REAR BRAKE PIPE ON REAR TRE…
304322 (1) Full qty
13
MC1 BRAKE PIPE
300877 (1) Full qty
14
MC2 BRAKE PIPE
300878 (1) Full qty
15
ESP ECU AND POWER STEERING PUM…
303016 (1) Full qty
16
BRACKET FASTENING BRAKE PIPES …
295870 (1) Full qty
17
FRONT BRAKE PIPE BRACKET FOR R…
296740 (1) Full qty
18
FRONT BRAKE PIPE BRACKET FOR L…
296741 (1) Full qty
19
FRONT BRAKE PIPE BRACKET FOR L…
296951 (1) Full qty
20
2-WAY CONNECTOR
293189 (2) Full qty
21
RUBBER RETAINER
262737 (1) Full qty
22
CLIP
234285 (9) Full qty
23
CLIP
234286 (5) Full qty
24
CLIP
235682 (1) Full qty
25
CLIP
292487 (1) Full qty
26
CLIP
199592 (1) Full qty
27
ERGAL SCREW -M6 X 15-
302574 (5) Full qty
28
SCREW -M5 X 15-
302723 (4) Full qty
29
SCREW
14304124 (6) Full qty
