Fuel System Pumps And Pipes

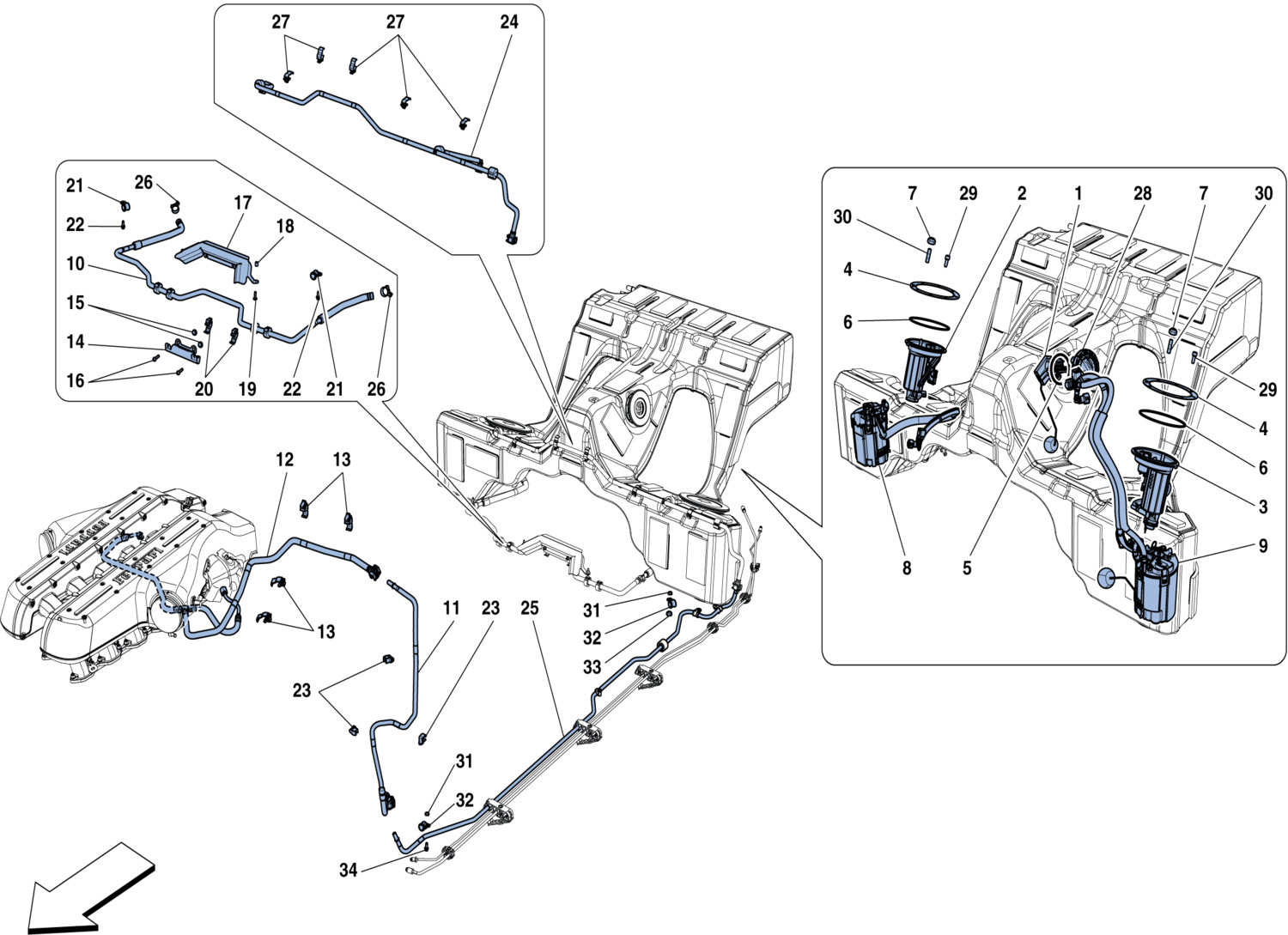

Schematic: Fuel System Pumps And Pipes
Loc
Part
Cond       Price
1
COMPL. INCLINATION SENSOR
273540 (1) Full qty
2
RH FUEL PUMP FILTER
282784 (1) Full qty
3
LH FUEL PUMP FILTER
282785 (1) Full qty
4
FASTENER RING
275998 (2) Full qty
5
O-RING
239413 (1) Full qty
6
O-RING
239412 (2) Full qty
7
NUT
14040514 (2) Full qty
8
FUEL PUMP
272086 (1) Full qty
9
LH FUEL PUMP
272087 (1) Full qty
10
LOWER CONNECTOR PIPE
272859 (1) Full qty
11
FUEL DELIVERY PIPE, FRONT SECT…
290293 (1) Full qty
12
LOW PRESSURE FUEL PIPE
289212 (1) Full qty
13
CLIP
204777 (4) Full qty
14
LOWER PIPE SHIELD
270767 (1) Full qty
15
CAP
14622387 (2) Full qty
16
SCREW -M5 X 20-
85692400 (2) Full qty
17
LOWER PIPE HEAT SHIELD
270768 (1) Full qty
18
NUT
14040514 (2) Full qty
19
SCREW -M5 X 20-
85692400 (2) Full qty
20
RAYMOND CLIP
257886 (2) Full qty
21
Hose fastening bracket
10441490 (2) Full qty
22
SCREW -M6 X 18-
11568027 (2) Full qty
23
CLIP
235682 (4) Full qty
24
FUEL DELIVERY PIPE, REAR SECTI…
285160 (1) Full qty
25
FUEL DELIVERY PIPE, CENTRE SEC…
271937 (1) Full qty
26
COLLAR
281598 (2) Full qty
27
RING CLAMP
177553 (5) Full qty
28
LEVEL SENSOR FASTENER RING
276001 (1) Full qty
29
SCREW
256323 (20) Full qty
30
STUD BOLT
11001124 (2) Full qty
31
SHIM
13604015 (3) Full qty
32
Clamp
10441290 (3) Full qty
33
NUT
14040614 (2) Full qty
34
SCREW -M6 X 22-
231619 (1) Full qty
