Alternator - Starter Motor

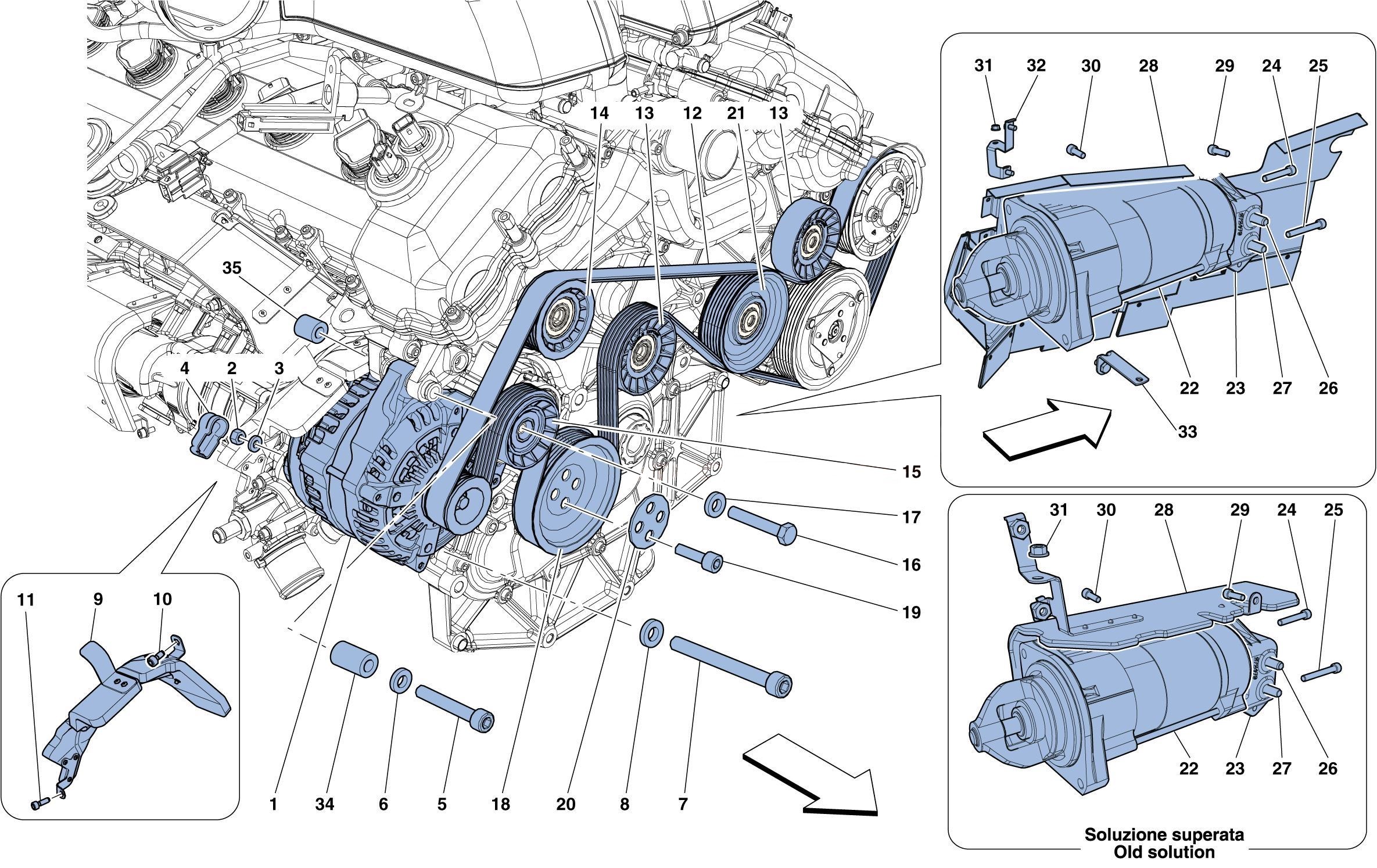

Schematic: Alternator - Starter Motor
Loc
Part
Cond       Price
1
ALTERNATOR
327289 (1) Full qty
2
NUT
16102314 (1) Full qty
3
Do Not Use - See GE07667n
12601374 (1) Full qty
3
New       £ 0.12
12601374 (1) Full qty
CH11905n
4
PROTECTIVE CAP
154803 (1) Full qty
5
SCREW -M10 X 1.25 X 65-
14308224 (1) Full qty
6
WASHER
10569474 (1) Full qty
7
SCREW -M10 X 1.25 X 100-
14308724 (1) Full qty
8
WASHER
10569474 (1) Full qty
9
HEAT SHIELD
295111 (1) Full qty
10
SCREW -M6 X 12-
233600 (1) Full qty
11
SCREW -M6 X 18-
231617 (1) Full qty
12
BELT
243857 (1) Full qty
13
SMOOTH PULLEY
272554 (2) Full qty
14
6-GROOVE PULLEY WITH SCREW
295763 (1) Full qty
15
BELT TENSIONER
271881 (1) Full qty
16
Screw
16044431 (1) Full qty
17
WASHER
11193874 (1) Full qty
18
ANCILLARY DRIVE BELT
260136 (1) Full qty
19
SCREW
14306424 (1) Full qty
20
PLATE
258597 (1) Full qty
21
6-GROOVE PULLEY WITH SCREW
257942 (1) Full qty
22
STARTER MOTOR
272494 (1) Full qty
23
REAR STARTER MOTOR BRACKET
272479 (1) Full qty
24
SCREW -M6 X 45-
231624 (1) Full qty
25
SCREW -M6 X 55-
255494 (1) Full qty
26
SCREW -M8 X 25-
231628 (1) Full qty
27
SCREW -M8 X 30-
231629 (1) Full qty
28
HEAT SHIELD
333494 (1) Full qty
29
BUSHING
258137 (2) Full qty
30
THREADED BUSHING
258138 (2) Full qty
31
NUT
14040611 (3) Full qty
32
BRACKET
333696 (1) Full qty
33
BRACKET
290098 (1) Full qty
