Front Suspension - Shock Absorber And Brake Disc

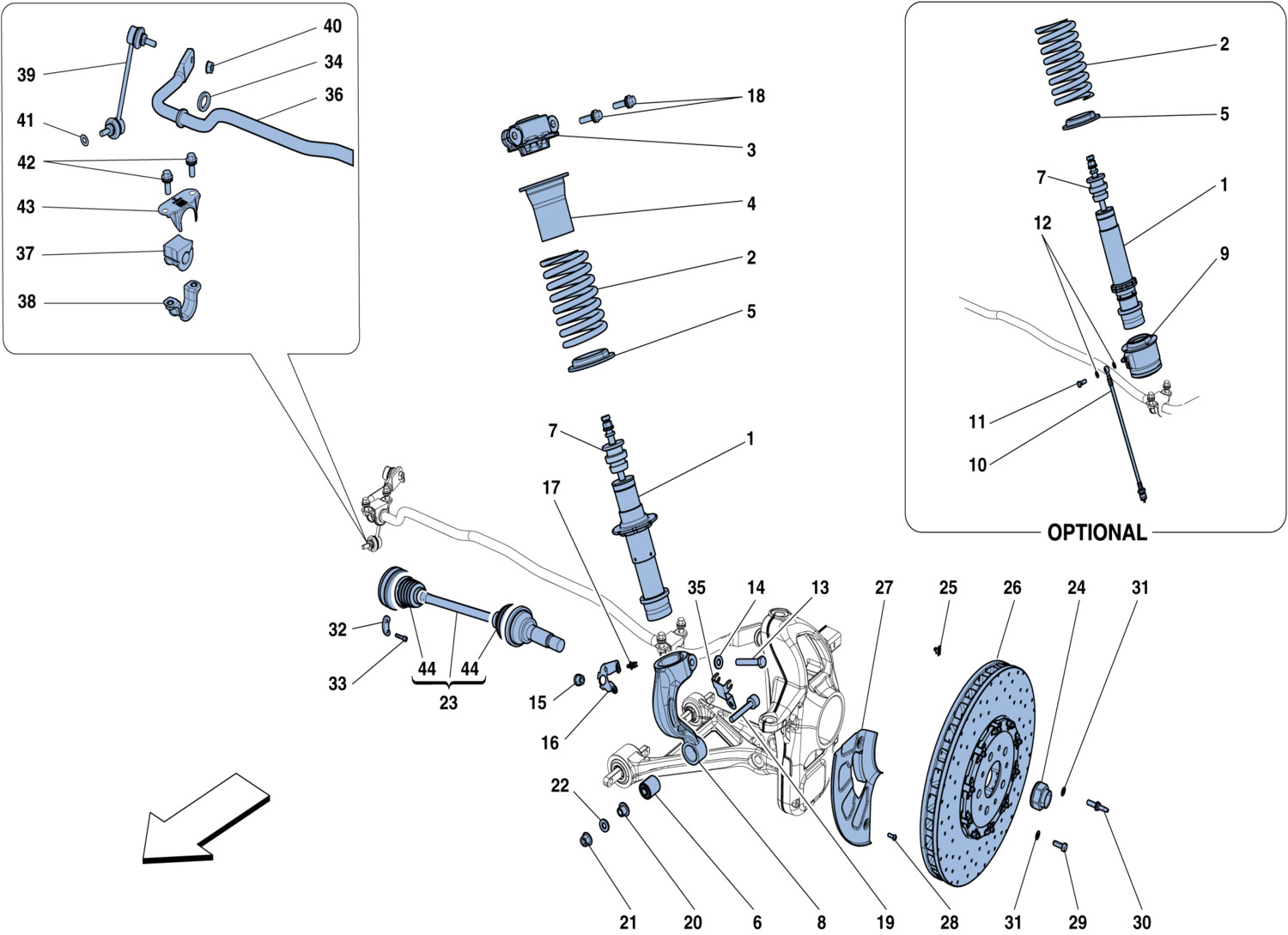

Schematic: Front Suspension - Shock Absorber And Brake Disc
Schematic: Front Suspension - Shock Absorber And Brake Disc
Loc
Part
Cond       Price
1
FRONT SHOCK ABSORBER
309803 (2) Full qty
1
FRONT SHOCK ABSORBER -Version …
309804 (2) Full qty
2
SPRING
312989 (2) Full qty
2
SPRING -Version with lifter-
326481 (2) Full qty
3
STOP CAP
274308 (2) Full qty
4
UPPER SPACER
212517 (2) Full qty
5
LOWER SPACER
211236 (2) Full qty
6
Shock Bushing
New       Price on Enquiry
157630 (2) Full qty
RS00314n
7
ENDSTOP BUSH
288828 (2) Full qty
8
RH STRUT OF SHOCK ABSORBER FOR…
261914 (1) Full qty
8
LH STRUT OF SHOCK ABSORBER FOR…
261913 (1) Full qty
9
COMPL. ACTUATOR -Version with …
300214 (2) Full qty
10
RUBBER PIPE -Version with lift…
260408 (2) Full qty
11
PIPE UNION
261587 (2) Full qty
12
GASKET
259638 (4) Full qty
13
SCREW -M12 X 1.25 X 70-
15541234 (2) Full qty
14
WASHER
259664 (2) Full qty
15
BUSHING
259711 (2) Full qty
16
RH BRACKET
263315 (1) Full qty
16
LH BRACKET
263314 (1) Full qty
17
RAYMOND CLIP
261214 (2) Full qty
18
SCREW
248790 (4) Full qty
19
SCREW
237297 (2) Full qty
20
BUSHING
237821 (2) Full qty
21
NUT
255271 (2) Full qty
22
Washer
12646921 (2) Full qty
23
FRONT AXLE SHAFT
280511 (2) Full qty
24
NUT
203780 (2) Full qty
25
FASTENER CLIP
204781 (2) Full qty
26
BRAKE DISC
315457 (2) Full qty
27
RH DISC SHIELD
260676 (1) Full qty
27
LH DISC SHIELD
260675 (1) Full qty
28
SCREW -M6 X 14-
190870 (4) Full qty
29
SCREW
228131 (2) Full qty
30
Brake Disc Fixing Screw
New       £ 4.68
104370 (2) Full qty
BS00951n
31
WASHER
228132 (4) Full qty
32
PLATE
268410 (12) Full qty
33
SCREW -M8 X 50-
14306931 (24) Full qty
34
GROMMET -No longer supplied-
10397680 (2) Full qty
35
ABS CABLE GUIDE BRACKET
260586 (2) Full qty
36
STABILISER BAR
265000 (1) Full qty
37
PLUG
236241 (2) Full qty
38
RETAINER BRACKET
245822 (2) Full qty
39
SPHERICAL TIE-ROD -On lower LH…
247950 (1) Full qty
39
SPHERICAL TIE-ROD -On lower RH…
247952 (1) Full qty
40
NUT
12164714 (2) Full qty
41
Main Bearing Wave Washer
New       £ 0.12
12601474 (4) Full qty
CC11464n
41
M10 Wavy Washer
New       Price on Enquiry
12601474 (4) Full qty
CC11574n
42
SCREW -M10 X 1.25 X 30-
245843 (4) Full qty
43
BUSHING MOUNT
286144 (2) Full qty
44
GAITER REPLACEMENT KIT -Gearbo…
70006025 (2) Full qty
44
GAITER REPLACEMENT KIT -Wheel/…
70006024 (2) Full qty
