Intake Manifold

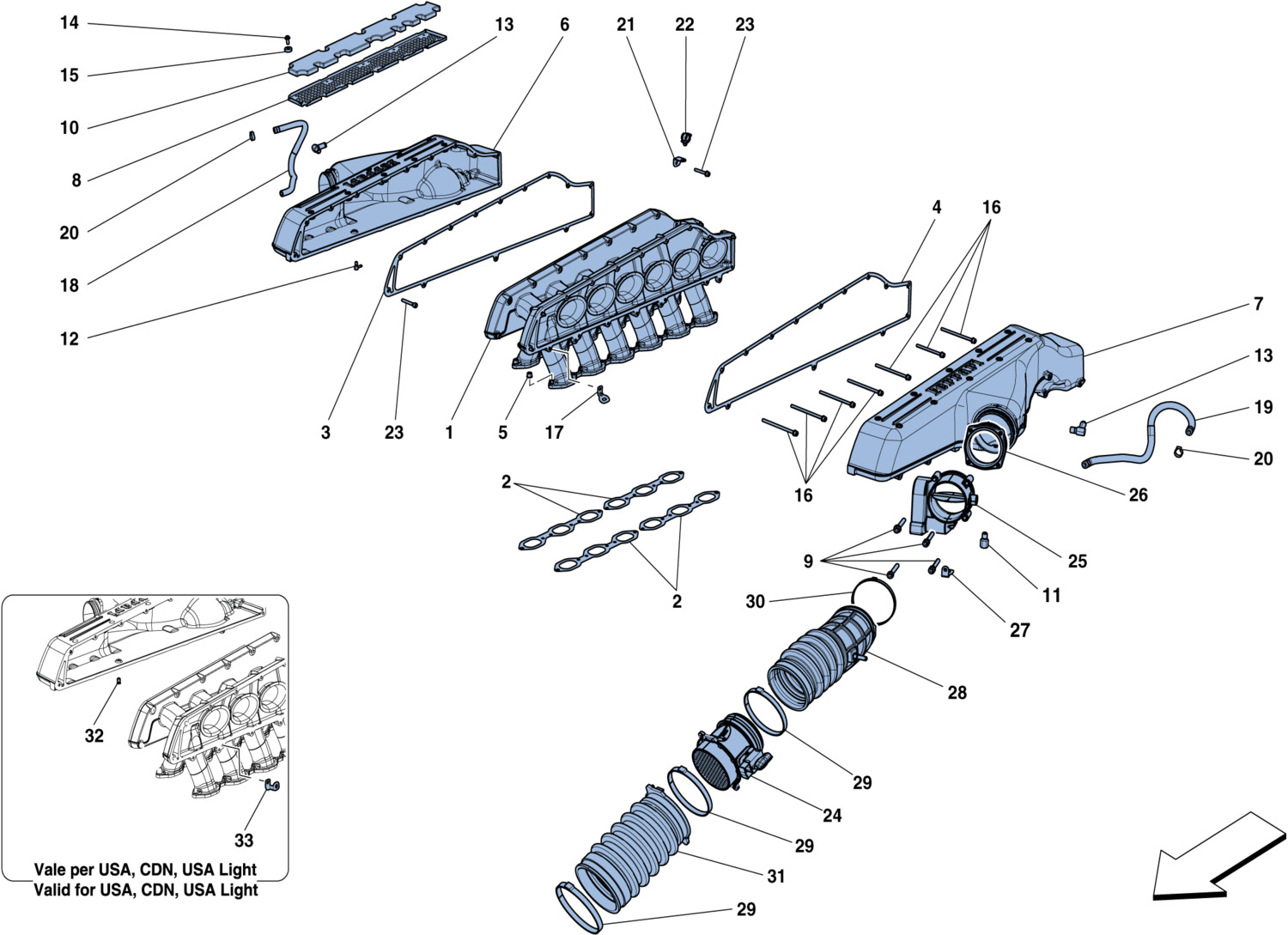

Schematic: Intake Manifold
Loc
Part
Cond       Price
1
COMPL. INTAKE MANIFOLD
314457 (1) Full qty
2
GASKET
318409 (4) Full qty
3
RH SEAL
317648 (1) Full qty
4
LH SEAL
317649 (1) Full qty
5
NUT
228265 (24) Full qty
6
RH INTAKE PLENUM
276950 (1) Full qty
7
LH INTAKE PLENUM
276952 (1) Full qty
8
COMPL. RH LINER HOLDER FRAME
257849 (1) Full qty
8
COMPL. LH LINER HOLDER FRAME
257850 (1) Full qty
9
SCREW -M6 X 45-
231624 (8) Full qty
10
RUBBER LINER
257851 (2) Full qty
11
CONNECTOR
268877 (2) Full qty
12
CONNECTOR
268875 (2) Full qty
13
CONNECTOR
291079 (2) Full qty
14
SCREW -M6 X 14 X 1-
287120 (20) Full qty
15
GASKET
216292 (20) Full qty
16
SCREW -M6 X 40 X 1- -Fastening…
285568 (20) Full qty
16
SCREW
14300534 (1) Full qty
16
SCREW
14300534 (1) Full qty
16
SCREW -M6 X 85- -Fastening ple…
278351 (1) Full qty
16
SCREW -M6 X 85- -Fastening ple…
278351 (1) Full qty
16
SCREW -M6 X 60- -Fastening ple…
14303834 (1) Full qty
16
SCREW
14303824 (1) Full qty
16
SCREW -M6 X 95- -Fastening ple…
14300434 (12) Full qty
16
SCREW -M6 X 95- -Fastening ple…
14300434 (12) Full qty
17
BRACKET
262736 (2) Full qty
18
RH FLUSH PIPE
276166 (1) Full qty
19
LH FLUSH PIPE
276167 (1) Full qty
20
COLLAR -D. 15.7-
13432070 (4) Full qty
21
BRACKET
261374 (1) Full qty
22
CLIP
247440 (1) Full qty
23
SCREW -M6 X 12-
233600 (3) Full qty
24
AIR FLOW METER
245028 (2) Full qty
25
THROTTLE BODY
179912 (2) Full qty
26
SHIM
240262 (2) Full qty
27
CABLE RETAINER BRACKET
268987 (1) Full qty
28
LH CONNECTOR PIPE -Not for USA…
269867 (1) Full qty
28
LH SLEEVE -Applicable for USA,…
282234 (1) Full qty
28
RH CONNECTOR PIPE -Not for USA…
269866 (1) Full qty
28
RH SLEEVE -Applicable for USA,…
282233 (1) Full qty
29
RING CLAMP
190151 (6) Full qty
30
RING CLAMP
180046 (2) Full qty
31
CONNECTOR PIPE
266404 (2) Full qty
32
CAP -Applicable for CINA, USA,…
219786 (1) Full qty
33
BRACKET -Applicable for USA, C…
285240 (2) Full qty
