Structures And Elements, Front Of Vehicle

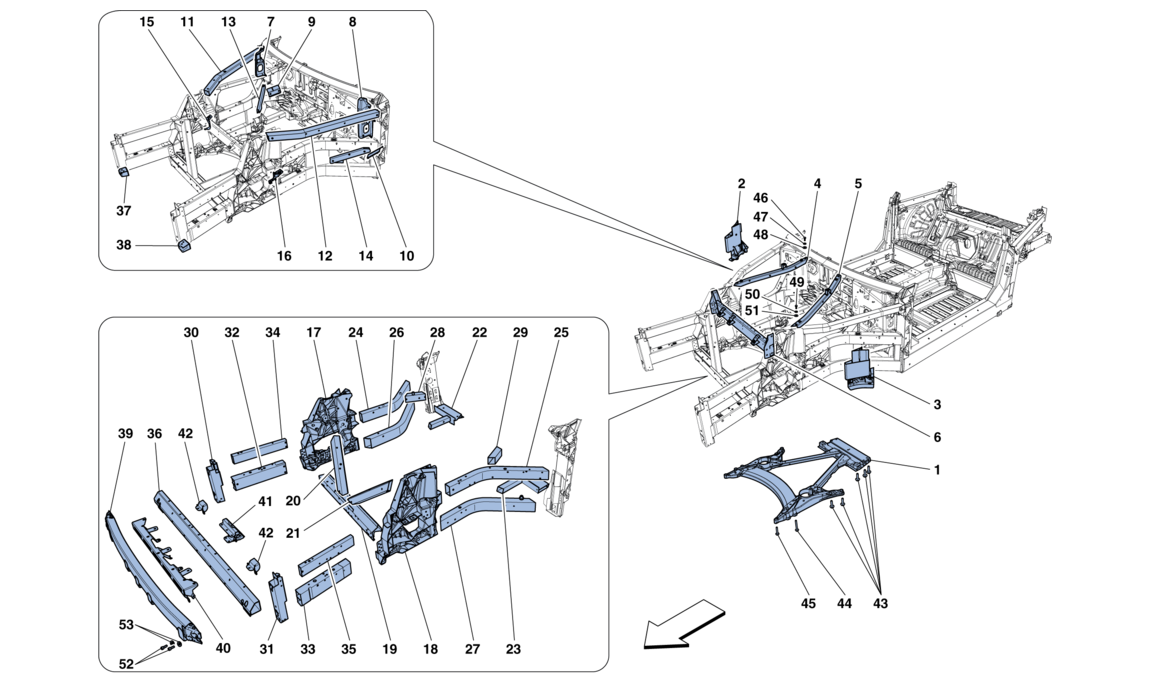

Schematic: Structures And Elements, Front Of Vehicle
Schematic: Structures And Elements, Front Of Vehicle
Loc
Part
Cond       Price
1
ENGINE SUBFRAME
265529 (1) Full qty
2
RH FRONT LOWER
265485 (1) Full qty
2
RH FRONT LOWER
279287 (1) Full qty
3
LH FRONT LOWER
265486 (1) Full qty
3
LH FRONT LOWER
279288 (1) Full qty
4
RH INTERNAL ENGINE COMPARTMENT…
265605 (1) Full qty
5
LH INTERNAL ENGINE COMPARTMENT…
265606 (1) Full qty
5
LH INTERNAL ENGINE COMPARTMENT…
279231 (1) Full qty
6
REMOVABLE CROSS-MEMBER
276508 (1) Full qty
6
REMOVABLE CROSS-MEMBER
280474 (1) Full qty
7
RH OUTER FIREWALL ENDPIECE
269291 (1) Full qty
7
RH OUTER FIREWALL ENDPIECE
288519 (1) Full qty
8
LH OUTER FIREWALL ENDPIECE
269290 (1) Full qty
8
LH OUTER FIREWALL ENDPIECE
288520 (1) Full qty
9
RH PILLAR ENDPIECE
269304 (1) Full qty
9
RH PILLAR ENDPIECE
284526 (1) Full qty
10
LH PILLAR ENDPIECE
269303 (1) Full qty
10
LH PILLAR ENDPIECE
284525 (1) Full qty
11
RH UPPER EXTERNAL DIAGONAL FIR…
265295 (1) Full qty
11
RH UPPER EXTERNAL DIAGONAL FIR…
277103 (1) Full qty
12
LH UPPER EXTERNAL DIAGONAL FIR…
265294 (1) Full qty
12
LH UPPER EXTERNAL DIAGONAL FIR…
277102 (1) Full qty
13
CONNECTION BETWEEN PILLAR AND …
270672 (1) Full qty
14
CONNECTION BETWEEN PILLAR AND …
270670 (1) Full qty
15
RH FRONT BRAKE BRACKET
271437 (1) Full qty
16
LH FRONT BRAKE BRACKET
271436 (1) Full qty
17
RH FRONT SUSPENSION MOUNT CAST…
276196 (1) Full qty
17
RH FRONT SUSPENSION MOUNT CAST…
278252 (1) Full qty
17
RH FRONT SUSPENSION MOUNT CAST…
277112 (1) Full qty
17
RH FRONT SUSPENSION MOUNT CAST…
280742 (1) Full qty
18
LH FRONT SUSPENSION MOUNT CAST…
276195 (1) Full qty
18
LH FRONT SUSPENSION MOUNT CAST…
278251 (1) Full qty
18
LH FRONT SUSPENSION MOUNT CAST…
277111 (1) Full qty
18
LH FRONT SUSPENSION MOUNT CAST…
280741 (1) Full qty
19
FRONT SUBFRAME CROSS-MEMBER
266037 (1) Full qty
20
RH FRONT DIAGONAL SUBFRAME BRA…
265539 (1) Full qty
21
LH FRONT DIAGONAL SUBFRAME BRA…
265540 (1) Full qty
21
LH FRONT DIAGONAL SUBFRAME BRA…
277064 (1) Full qty
21
LH FRONT DIAGONAL SUBFRAME BRA…
265540 (1) Full qty
22
LOWER RH EXTRUSION -Not for GD…
265557 (1) Full qty
22
LOWER RH EXTRUSION -Applicable…
278213 (1) Full qty
23
LOWER LH EXTRUSION -Not for GD…
265558 (1) Full qty
23
LOWER LH EXTRUSION -Applicable…
279130 (1) Full qty
24
RH CENTRAL EXTERNAL DIAGONAL F…
265517 (1) Full qty
24
RH CENTRAL EXTERNAL DIAGONAL F…
276469 (1) Full qty
25
LH CENTRAL EXTERNAL DIAGONAL F…
265306 (1) Full qty
25
LH CENTRAL EXTERNAL DIAGONAL F…
274946 (1) Full qty
26
LOWER RH DIAGONAL FIREWALL BRA…
265519 (1) Full qty
27
LOWER LH DIAGONAL FIREWALL BRA…
265521 (1) Full qty
27
LOWER LH DIAGONAL FIREWALL BRA…
281477 (1) Full qty
28
RH CENTRAL INTERNAL DIAGONAL F…
268370 (1) Full qty
28
RH CENTRAL INTERNAL DIAGONAL F…
279223 (1) Full qty
28
RH CENTRAL INTERNAL DIAGONAL F…
279222 (1) Full qty
29
LH CENTRAL INTERNAL DIAGONAL F…
265515 (1) Full qty
29
LH CENTRAL INTERNAL DIAGONAL F…
279220 (1) Full qty
29
LH CENTRAL INTERNAL DIAGONAL F…
279224 (1) Full qty
30
RH FRONT CRASH BOX CROSS MEMBE…
265536 (1) Full qty
30
RH FRONT CRASH BOX CROSS MEMBE…
277027 (1) Full qty
30
RH FRONT CRASH BOX CROSS MEMBE…
277967 (1) Full qty
31
LH FRONT CRASH BOX CROSS MEMBE…
265537 (1) Full qty
31
LH FRONT CRASH BOX CROSS MEMBE…
277028 (1) Full qty
32
RH LOWER FRONT STRUT
266470 (1) Full qty
32
RH LOWER FRONT STRUT
277950 (1) Full qty
33
LH LOWER FRONT STRUT
266469 (1) Full qty
33
LH LOWER FRONT STRUT
277948 (1) Full qty
34
RH UPPER FRONT STRUT -Request …
265531 (1) Full qty
34
RH UPPER FRONT STRUT -Request …
277101 (1) Full qty
35
LH UPPER FRONT STRUT -Request …
265534 (1) Full qty
35
LH UPPER FRONT STRUT -Request …
277100 (1) Full qty
36
COMPL. FRONT BUMPER CROSS MEMB…
277735 (1) Full qty
36
COMPL. FRONT BUMPER CROSS MEMB…
265538 (1) Full qty
36
COMPL. FRONT BUMPER CROSS MEMB…
277191 (1) Full qty
36
COMPL. FRONT BUMPER CROSS MEMB…
281168 (1) Full qty
36
COMPL. FRONT BUMPER CROSS MEMB…
281168 (1) Full qty
37
BRACKET ON RH CRASH BOX STRUT
266038 (1) Full qty
38
BRACKET ON LH CRASH BOX STRUT
269329 (1) Full qty
39
LOWER FRONT CROSS-MEMBER
83353400 (1) Full qty
40
SHELF CROSS MEMBER
82983100 (1) Full qty
41
ENGINE COMPARTMENT LID HINGE M…
83839000 (1) Full qty
42
ONT BRACKET
82439800 (2) Full qty
43
SCREW -M12 X 50-
277322 (10) Full qty
44
SCREW -M10 X 70-
271283 (2) Full qty
45
SCREW -M10 X 55-
277723 (2) Full qty
