Dashboard

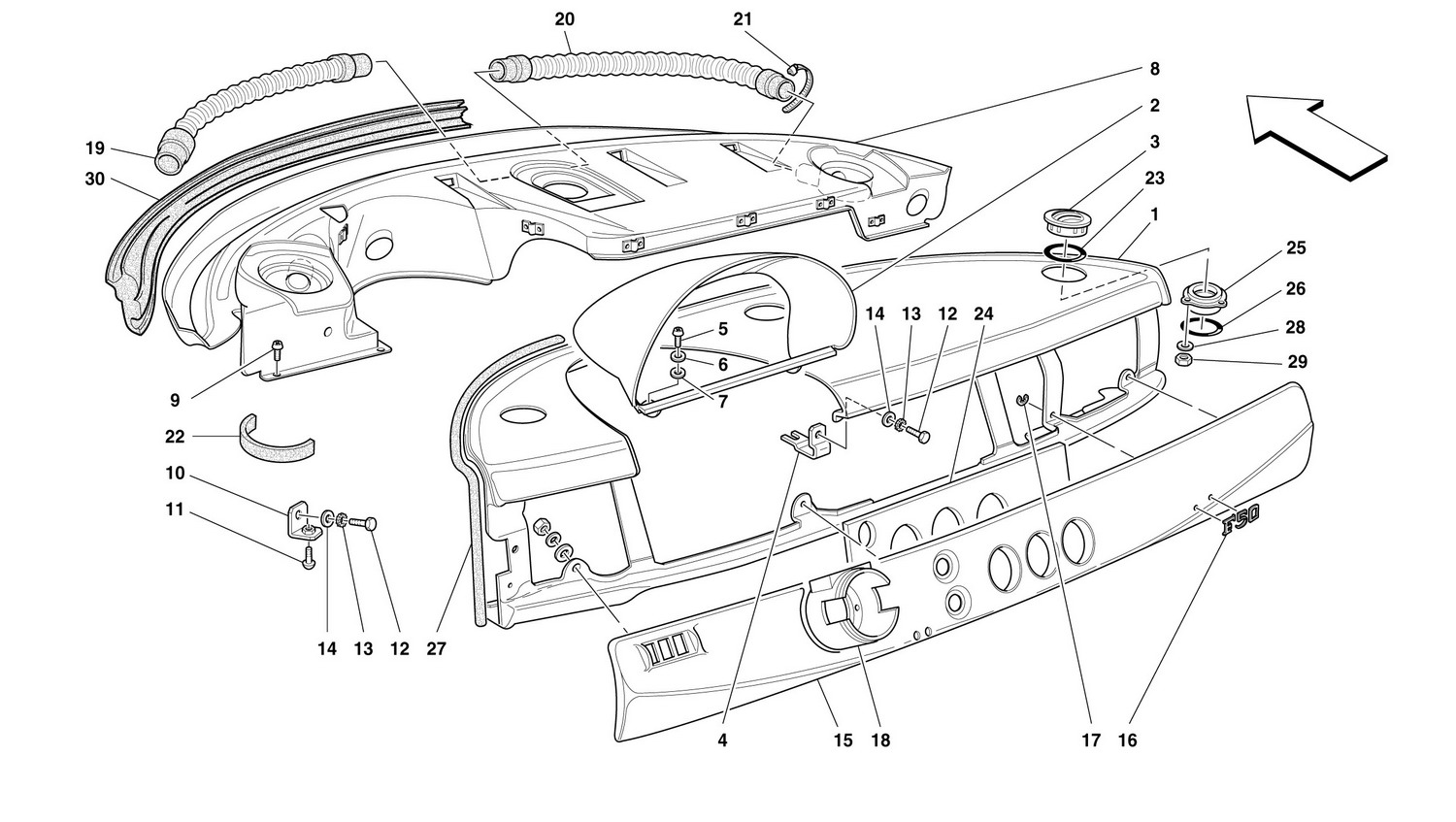

Schematic: Dashboard
Loc
Part
Cond       Price
1
COVERED COMPLETE DASHBOARD FR…
64854800 (1) Full qty
1
LOWER UPHOLSTERY
64157100 (1) Full qty
1
UPPER LINING
64157000 (1) Full qty
2
DASH BOARD
63531100 (1) Full qty
3
Air opening
60656500 (3) Full qty
4
DASHBOARD FIXING CENTRAL BRAC…
64769400 (1) Full qty
5
Screw
13274972 (2) Full qty
6
WASHER
166467 (2) Full qty
7
Washer
12638177 (2) Full qty
8
TAIL WINDSHIELD FRONT TRIM
64140700 (1) Full qty
9
SCREW
169611 (16) Full qty
9
SCREW
64047400 (16) Full qty
10
SIDE BRACKET
64176200 (2) Full qty
11
SCREW
14778818 (2) Full qty
12
SCREW
10902224 (3) Full qty
13
Clutch Bolt Wavy Washer 550/57…
127494 (3) Full qty
14
WASHER
12643724 (3) Full qty
15
CETRAL INSERT IN THE DASH BO…
63536500 (1) Full qty
16
F 50 MARK
167022 (1) Full qty
17
MARK FIXING PLATE
14227474 (2) Full qty
18
COLUMN COVER
63940800 (1) Full qty
19
AIR DELIVERY TUBE TO L.H. AIR…
64310700 (1) Full qty
20
AIR DELIVERY TUBE TO R.H. AIR…
64142400 (1) Full qty
21
Clamp
145855 (4) Full qty
22
GASKET
64141700 (3) Full qty
23
GASKET
157869 (3) Full qty
24
INSULATION
65056700 (1) Full qty
25
BUSHING HOLDER
64191700 (3) Full qty
26
GASKET
65081200 (3) Full qty
27
LINING
64968700 (1) Full qty
28
WASHER
10519304 (9) Full qty
29
NUT
113647 (9) Full qty
30
GASKET
64143500 (1) Full qty
