Engine/Gearbox Connector Pipe And Insulation

599 GTB

Schematic
No. Part Name
Price Condition

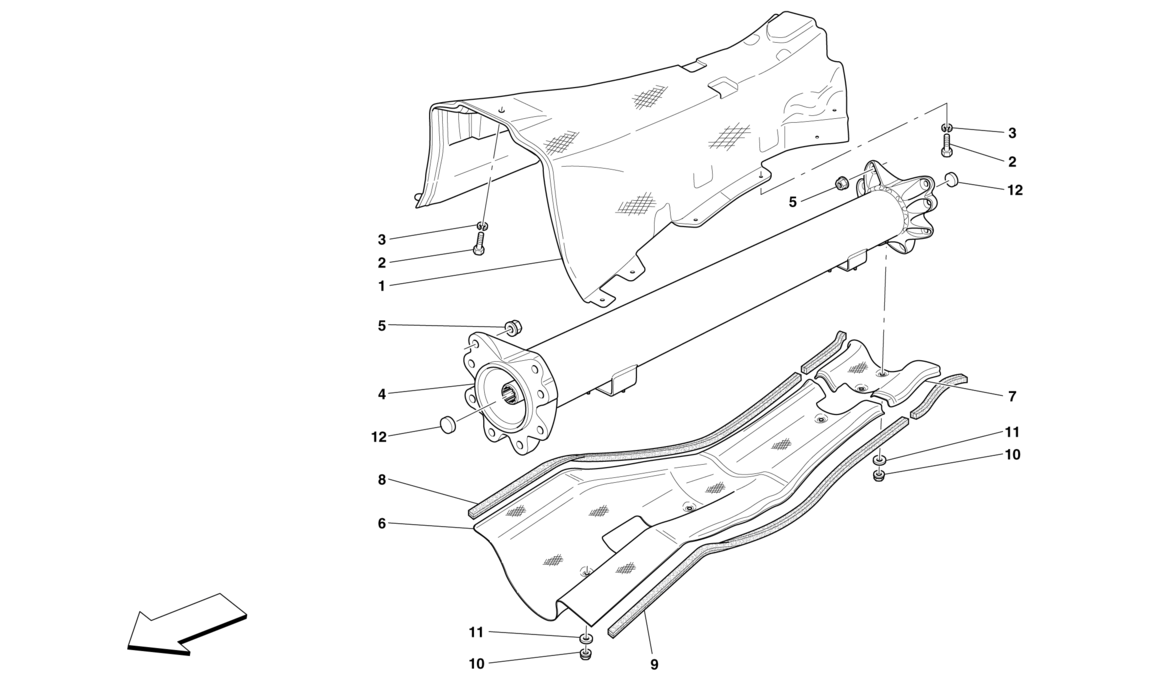

Schematic: Engine/Gearbox Connector Pipe And Insulation
1
COMPLETE TUNNEL HEAT SHIELD
69248100 (1) Full qty
1
COMPLETE TUNNEL HEAT SHIELD
69248300 (1) Full qty
2
SCREW
10902380 (12) Full qty
3
WASHER
12643770 (12) Full qty
3
WASHER
12643770 (12) Full qty
4
ENGINE-GEARBOX CONNECTOR PIPE …
220585 (1) Full qty
4
ENGINE-GEARBOX CONNECTOR PIPE …
230564 (1) Full qty
4
ENGINE-GEARBOX CONNECTOR PIPE …
230825 (1) Full qty
4
ENGINE-GEARBOX CONNECTOR PIPE …
218757 (1) Full qty
4
ENGINE-GEARBOX CONNECTOR PIPE …
230607 (1) Full qty
5
NUT
156462 (15) Full qty
6
PIPE SHIELD
67749000 (1) Full qty
6
PIPE SHIELD
80209900 (1) Full qty
7
REAR UNDERSHIELD
67749100 (1) Full qty
7
REAR UNDERSHIELD
80210000 (1) Full qty
8
GASKET
167499 (1) Full qty
9
GASKET
172910 (1) Full qty
9
GASKET
167499 (1) Full qty
10
NUT
14059214 (4) Full qty
11
WASHER
12643724 (4) Full qty
12
SHIM
144443 (2) Full qty
